Test nat-policy rules API

L0 Member

Hi all,

I want to use the APIs to test if the source, destination, protocol and port that I've inserted, match with one of my NAT policy rules.

The complete request of the API that I've implemented is:

https://192.168.111.192/api/?type=op&cmd=<test><nat-policy-match><source>10.226.163.81</source><destination>10.227.248.113</destination><protocol>6</protocol><destination-port>123</destination-port></nat-policy-match></test>&key=<myKey>

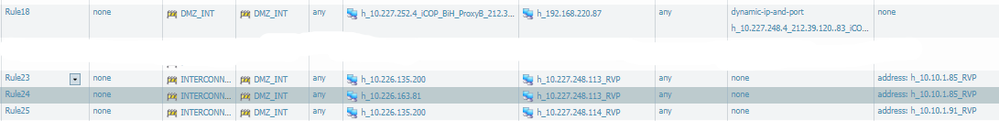

and the Nat policy rule for the API request is:




Below, the same request via CLI:

user@ic-f-bih-1(active)> test nat-policy-match source 10.226.163.81 destination 10.227.248.113 protocol 6 destination-port 123

Destination-NAT: Rule matched: Rule24
10.227.248.113:123 => 10.10.1.85:123

In the CLI the request is successfull, but with API the result is the follow:



<response cmd="status" status="success">
  <result>
    <rules>
      <entry/>
    </rules>
  </result>
</response>

This happens only with rules that have Destination Translation filled. If the nat rule has Source translation filled, the response of the API query is successfull.

What I wrong with this API query? Thanks
