Getting Log to Expediton

Reply
L2 Linker

Getting Log to Expediton

We have a pair of 3020's, not running HA, managed by Panorama and an M-100 setup in Log Collector Mode only.  I'm not having any luck getting my traffic logs to export to the Expedition /home/expedition/logs/ directory.  I've setup a Scheduled Log Export on my M-100 with the following:



Log Type - Traffic

Protocol - SCP

Hostname - my Expedition Server IP

Port - Blank

Path - /home/expedition/logs

username and password.



When I click the "Test SCP server connection" I get an ssh-export-test.txt file in the /home/expedition/logs/ directory.  However, when my scheduled export runs, I'm not getting the traffic logs.



Anyone have a suggestion on what to look at?  I'm not seeing the issue.



Thanks.

L2 Linker

Re: Getting Log to Expediton

Update.....I have 2.8G Traffic File now in my /home/expedition/logs/ directory, verified by do an ls.  When in M. Learning, I enter the path to the file, and nothing.  I've given full permissions to everyone in ubuntu.  Anyone have any thoughts?



BTW, still can't get the scheduled log export to run, unless it takes 24 hours...

L2 Linker

Re: Getting Log to Expediton

Here is what I have...

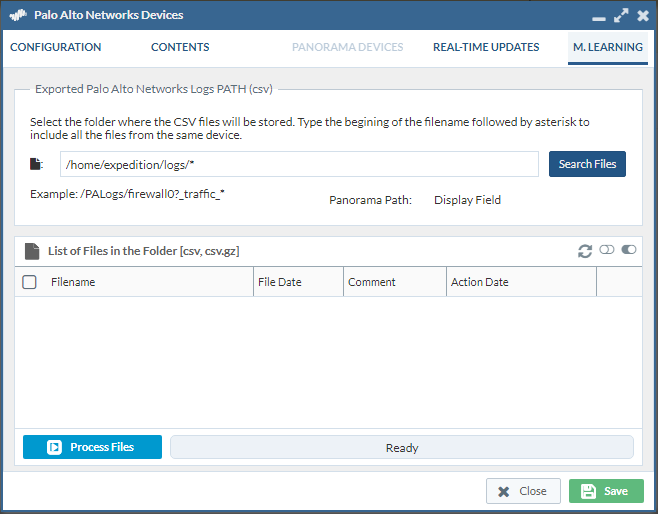

But when i go to Expedition, Devices, M.Learning, set my search path, no files are listed...








log was sent from the Firewall, via SCP using the CLI and the default expedition username/password.  I've logged into Expedition GUI with the default admin username/password as well as created a new with admin rights, still nothing.  I'm not sure how to go about fixing this....

L2 Linker

Re: Getting Log to Expediton

As an FYI, if you are running Panorama, the Scheduled Log Export can not be added via Panorama.  You must add the Scheduled Log Export to the Remote Firewall via GUI.  Regarding the import to M.Learning, I've not figured anything out.  Of course, since it's a free tool, it looks like we're on our own for a resolution.  I can't find any reason why it's not working.

L7 Applicator

Re: Getting Log to Expediton

The Serial Used in the device needs to be present in the files loaded to Expedition, if dont match Expedition will not show you the files.



So if you create a panorama with the panorama serial but the logs are generated by a fw the logs wont show up unles yuo add the FW serial to your Panorama Device on Expedition as a HA Serial.



Best Aproach will be Add Panorama, Retrieve connected Devices, that will create all the firewalls so look for the fw you want to analyze and add inside of it the path, you should see the logs and process them
