Need some help with ML process for Importing Log files imported into Expedition under /greenfieldLogs/ directory with all the 777 permissions including the log.csv file (exported) from firewalls.
I have the latest EX-1.0.102 version and all updates have been done to rule out any issues related to version.
While adding ML source path for processing log files It doesnot display anything while searching file sunder the directory
but I have Imported and able to see the files in cli.
Need some help...
Solved! Go to Solution.
Remember you will only see the files under your firewall if the serial used to define the firewall is the same serial reported inside the log.csv file. they MUST match, if not Expedition will filter out those files....
Hi, I see the same serial number in csv file as in the device on expedition, what did you do to fix it?
jgarg, did you open the file using excel or google docs by any chance? If yes they will remove any zeros in the beginning of the serial numbers and will save those changes to the csv file. If you used a text editor to open the csv file then the serial numbers should have retained the serial numbers as is.
Hi, no I didnt open the file in xls of Gdocs, in the log file on expedition console, i see same serial number:
1,2018/12/19 09:26:08,015351000019499,TRAFFIC,end,2049,2018/12/19 09:26:08,192.168.45.20,192.168.45.65,,,allow all,,,incomplete,vsys1,trust,trust,ethernet1/2,ethernet1/2,Default-Logging-Profile,2018/12/19 09:26:08,1941,1,53782,5007,0,0,0x64,tcp,allow,296,296,0,4,2018/12/19 09:25:56,7,any,0,44030,0x8000000000000000,192.168.0.0-192.168.255.255,192.168.0.0-192.168.255.255,0,4,0,aged-out,12,0,0,0,,pan-panos-vm50,from-policy,,,0,,0,,N/A,0,0,0,0
can you try this:
Open your device (under devices).

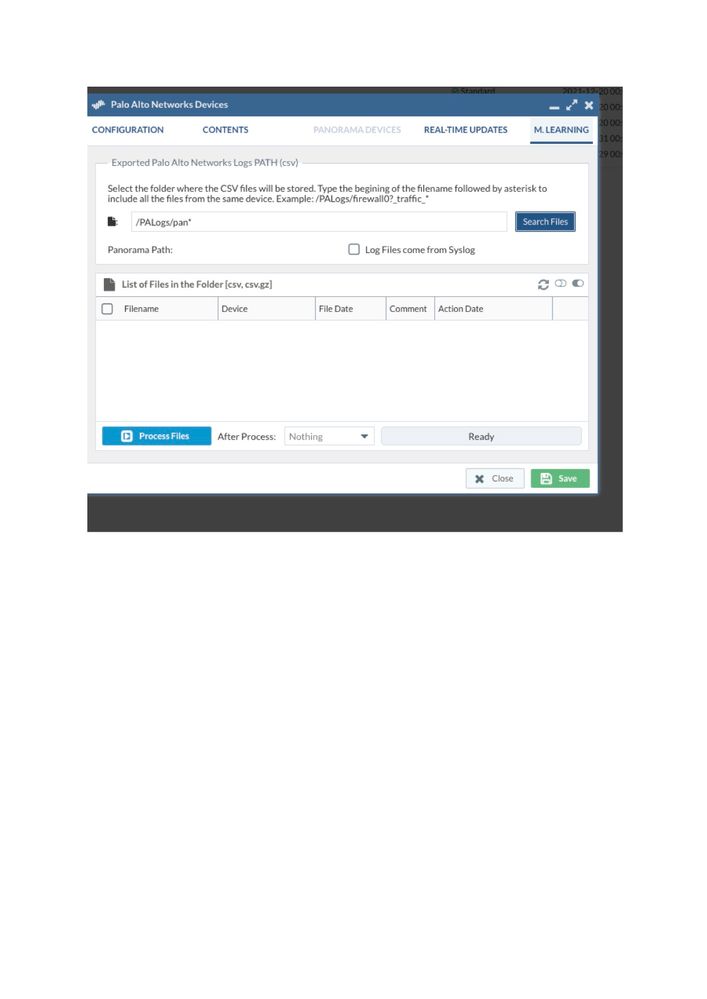

Click on the M.LEARNING menu
Type in the directory path (do not click 'Search files' yet)
Click on 'Save' after entering the directory path
Open the device after saving go to M.LEARNING and click 'Search Files'
If the file is found, click to select (left hand button)
click 'Process files'
Let me know the result
expedition@pan-expedition:/PALogs$ ls -l
-rwxrwxrwx 1 expedition expedition 1161655 Dec 20 05:30 pan-panos-vm50_traffic_2018_12_20_last_calendar_day.csv
-rwxrwxrwx 1 expedition expedition 944 Dec 24 05:30 pan-panos-vm50_traffic_2018_12_24_last_calendar_day.csv
-rwxrwxrwx 1 expedition expedition 17 Dec 22 02:36 ssh-export-test.txt
Check also the potential reasons explained in this related link:
