Application incomplete

Reply
Highlighted
L4 Transporter

Application incomplete

Hi,

Why Palo Alto is detecting sometimes the application like SSL and sometimes like incomplete??????

if the connection has 134bytes is not detected, but with more than 134b is detected..........


L6 Presenter

Re: Application incomplete

Hi COS,

application "incomplete" means un-complete three way handshake.

Application "ssl" means firewall has seen complete three way handshake and couple of packets after that.

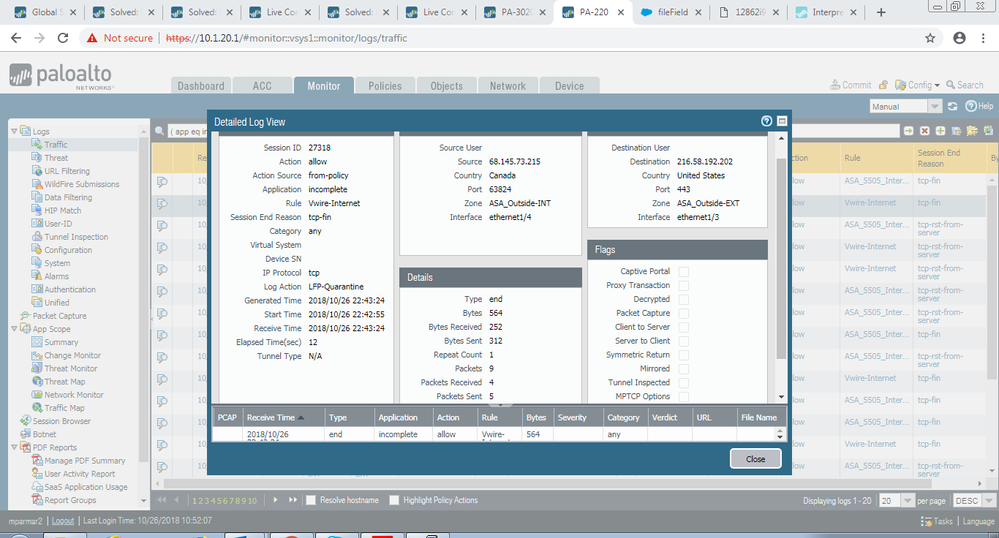

Now in logs you can also see "how many packets are sent and receive".

for incomplete application you will see that not more than 3 packets were exchange in two direction.

To verify it enlarge every log.

Regards,

Hardik Shah

L6 Presenter

Re: Application incomplete

Hi COS,

You can also refer bellow document.

Incomplete, Insufficient data and Not-applicable in the application field

Regards,

Hardik Shah

L4 Transporter

Re: Application incomplete

Yes i know but why the system App would start connections with less of 3 packets, thats not make sense right?

L6 Presenter

Re: Application incomplete

Hi Cos,

That can be answered through packet capture or enlarged version of log.

Please provide me, it will help me with the analysis.

Regards,

Hardik Shah

L4 Transporter

Re: Application incomplete

Ok ill do a packet capture and ill let u know....thanks

L6 Presenter

Re: Application incomplete

Thanks COS ...

L4 Transporter

Re: Application incomplete

i see incomplete application with  more than 3 packtes in either direction




L5 Sessionator

Re: Application incomplete

@MP18 Application incomplete can also mean that the three-way-handshake completed but there wasn't enough data afterwards to be classified into an App-ID, hence incomplete.



Just in example, the tcp three-way-handshake could complete but then all the following packets are just TCP keepalives or something.



Packet captures will provide the answers you seek :)

Re: Application incomplete

I'm having this same issue with telnet on port 8080. From one server to the other it will connect for a second and then say the remote host closed the connection.



Any ideas?

Rule




Packet Capture

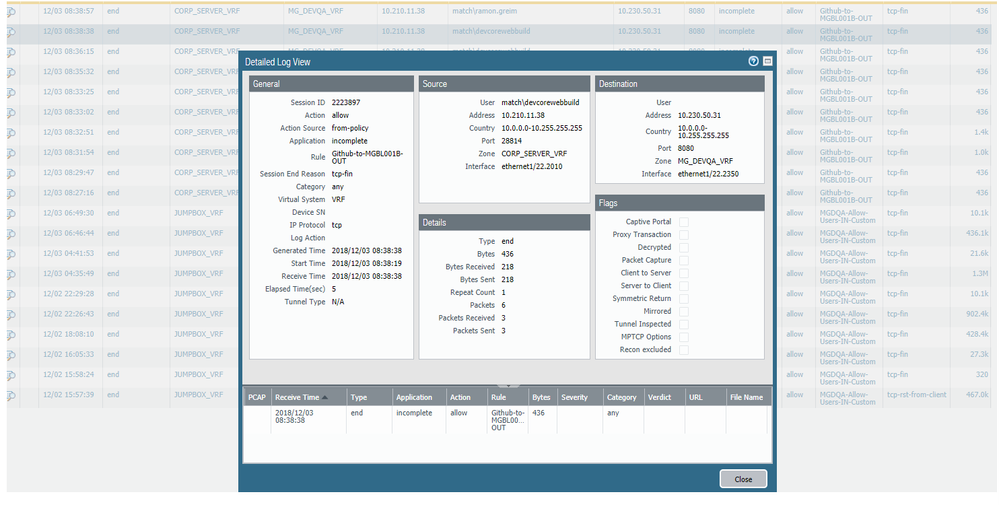

image.png WireSharkimage.png
