Configuring OCSP

I am trying to configure OCSP and I am a little confused.



I have added an OSCP responder.



It appears the second step is to allow the Firewall to use it by configuring Device-Management->Interfaces.  However, for most of my settings, I am using a Service Route Configuration  and I don't see HTTP OCSP listed as an option in Service Route.  Is there a way to tell the firewall to use a service route instead of the management interface?



I also see references online (albeit old) that indicates I need to turn on HTTP OCSP for an Interface Management Profile that is used for a specific interface.  If this is the case, what interface should be used?



Could someone provide me with some guidance?



Thanks,

L7 Applicator

Re: Configuring OCSP

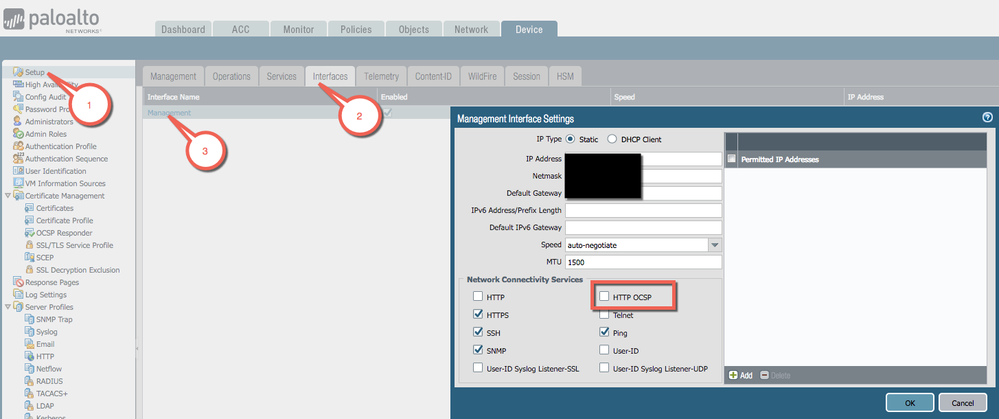

If your OCSP responder IP  is your management IP address, then you need to configure that for HTTP OCSP:

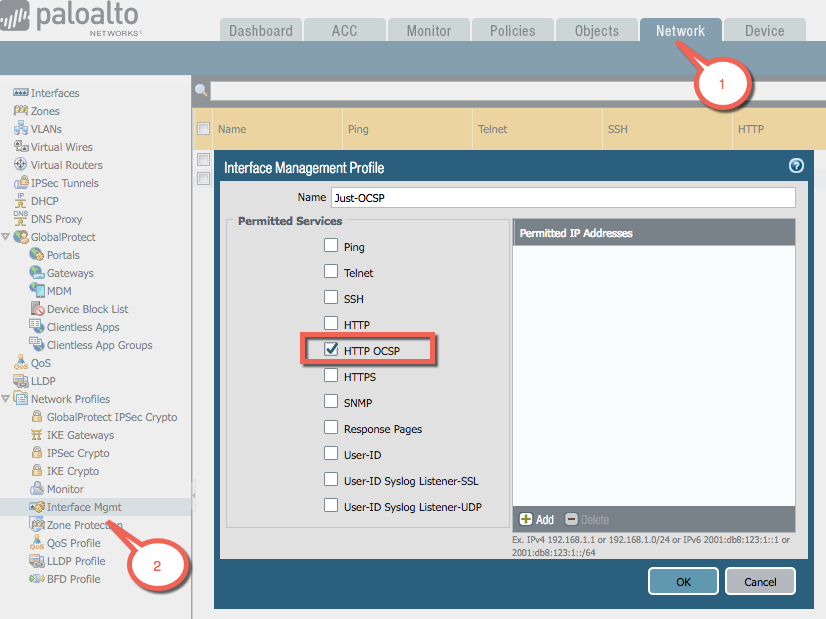

If you're using a service route (a dataplane interface) instead, you'll need to enable HTTP OCSP as an interface profile instead, and assign that profile to the appropriate interface:




L2 Linker

Re: Configuring OCSP

Thanks for the information.  I appreciate it.
