Configuring a Zone Without Interfaces

Reply
L0 Member

Configuring a Zone Without Interfaces

It is possible to configure a zone without any interfaces specified?
Will the rule containing this zone be applied ?

Will traffic that match this rule be accepted from any source and destination interface?

Tags (1)
Community Team Member

Re: Configuring a Zone Without Interfaces

Hi,



Yes you can configure zones without adding them to an interface :



2016-09-02_14-19-11.pngZone without interface

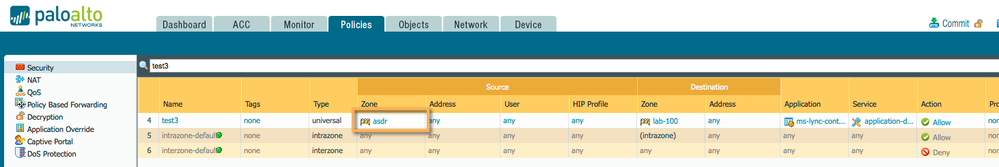

You can even configure this zone in the rulebase :



2016-09-02_14-22-16.pngZone in rulebase



 Correct me if I'm wrong but as nothing is tied to this zone, this rule will never be matched.



-Kim.

L7 Applicator

Re: Configuring a Zone Without Interfaces

Firewall lookup from zone to zone is matched based on the ingress and egress interface of the traffic.



so if a zone has no interfaces, the zone and associated rules will never be used for any traffic.

Steve Puluka BSEET - IP Architect - DQE Communications (Metro Ethernet/ISP)
ACE PanOS 6; ACE PanOS 7; ASE 3.0; PSE 7.0 Foundations & Associate in Platform; Cyber Security; Data Center
Community Team Member

Re: Configuring a Zone Without Interfaces

@shaunyt, My question for you is:



Why were you wanting to create a zone without interfaces?

What were you trying to accomplish?

Stay Secure,
Joe
End of line
L4 Transporter

Re: Configuring a Zone Without Interfaces

A use case would be the situation that a rule is deployed from Panorama to multiple firewalls and some dont have this zone. So commit will fail. When you add such a "dummy" zone with no interface assigned the commit will succeed.
