DNS "Aged Out"

Reply
L1 Bithead

DNS "Aged Out"

ISP changed fiber line coming into site.  DNS server addresses did not change (they say) but the external addresses and gateway did change.

I can connect to the internet but just for about 2 to 3 minutes and then I lose access to the internet.

Updated all definitions with the new information.  Simple network…

LAN
192.168.1.1/24
192.168.1.1 GW

WAN
80.80.169.1 WAN GW
80.80.169.16/30  WAN Range
P DNS 80.80.160.8
S DNS 80.80.160.9

Static Route points to 80.80.169.1 and defined on the ethernet1/1 interface.

Can I safely assume that the configuration is correct?  And that there is a timeout issue?  I changed default / global timeout values for tcp and udp.  Then I could not connect at all.  Reverted.  Changed timeouts for DNS.  Same.

Thanks for your help.

L7 Applicator

Re: DNS "Aged Out"

WAN
80.80.169.1 WAN GW
80.80.169.16/30  WAN Range
P DNS 80.80.160.8
S DNS 80.80.160.9



Are they sure this is correct?  I would expect your gateway to be 80.80.169.17 and the PAN interface 80.80.169.18 since the interface subnet is a 80.80.169.16/30



Steve Puluka BSEET - IP Architect - DQE Communications (Metro Ethernet/ISP)
ACE PanOS 6; ACE PanOS 7; ASE 3.0; PSE 7.0 Foundations & Associate in Platform; Cyber Security; Data Center
L1 Bithead

Re: DNS "Aged Out"

Thanks.  I won't be able to speak with them until the morning.  It is 2:30 a.m. my time.



I will try your suggestions.



Thanks very much.

L1 Bithead

Re: DNS "Aged Out"

No luck.   Can't find primary DNS.  Set x.x.169.17 as gateway and the interface as x.x.x.18/30  (correct?).  Next hop was set to x.x.169.17.



I have another router here from another ISP.  When I get out through that router and ping the other ISP's addresses, I find that I can ping the 80.80.169.1 gateway but not x.x.x.16 and beyond.  I cannot also ping the PDNS and SDNS.



Anything else I can do before I speak with them again?  I would like to rule out the firewall if I can.



They claim that since they are providing connectivity to the port (lights flash), that the problem is with the firewall config.  Since they changed the line and gave it a  new ip, we could connect and use it up until today.  But even still...every morning it needed to be reset by them.  Today they mapped x.x.169.1 to the FW mac address.



Thanks.







L1 Bithead

Re: DNS "Aged Out"

I just set everything back to as it was in my first email.



I got in right away to our network.  I have about 30 sec to 1 min before dns ages out.  I was able to ping the x.x.169.1 gateway and both DNS servers.  I could not ping x.x.x.16, etc.



do you know what is causing dns to age out?



Thanks.

L7 Applicator

Re: DNS "Aged Out"

As @pulukas mentioned 80.80.169.16/30 means that you can use only IPs 80.80.169.17 and 80.80.169.18.

One of them has to be your public IP and other ISP gateway.

You can't use 80.80.169.16/30 as interface IP as this is not usable IP.

Try both ways.



First assign 80.80.169.18/30 to your firewall and then try to ping ISP gw.

> ping source 80.80.169.18 host 80.80.169.17



And then check arp table

show arp ethernet1/1

(assuming that your wan interface is on ethernet1/1)



Do you see mac address behind 80.80.169.17?

If you see incomplete then try 80.80.169.17/30 on fw interface and ping 18.



If mac is there then can you ping 8.8.8.8

> ping source 80.80.169.18 host 8.8.8.8

If not then check if your routing is correct



>traceroute source 80.80.169.18 host 8.8.8.8

Is next hop 80.80.169.17?

Enterprise Architect @ Cloud Carib www.cloudcarib.com
ACE (3.0, 5.0, 6.0, 7.0), PCNSE (6, 7), PCNSI
L1 Bithead

Re: DNS "Aged Out"

Thank you to @Raido and @pulukas.



I am a volunteer math teacher overseas and have inherited the networking role.  I have a distant background in the basics so bear with me as I get up to speed.



I was finally able to show the ISP guys the addressing fault issue.  Now I have:



WAN IP:  80.80.169.16/25  (x.x.x.16 is mapped ... on the ISP side...to the PA 220 mac address)

GW:  80.80.169.1

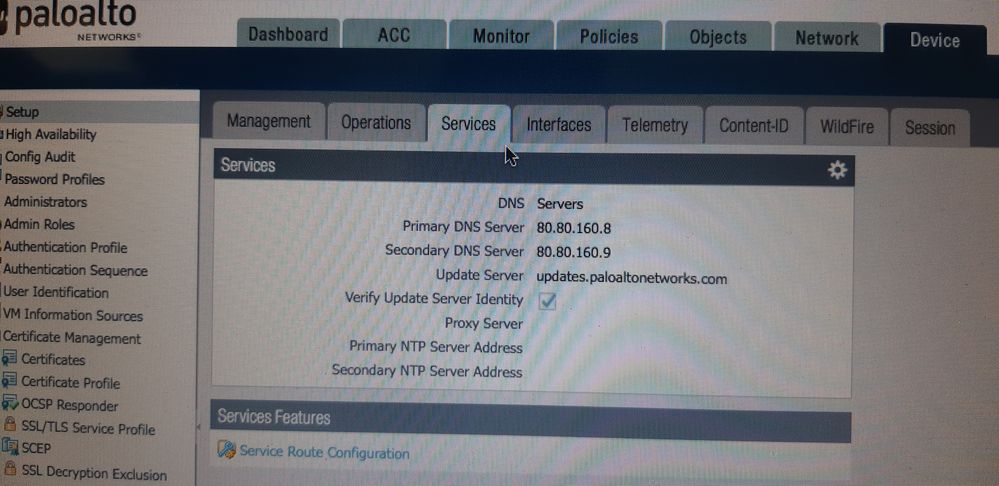

PDNS:  80.80.160.8

SDN:  80.80.160.9

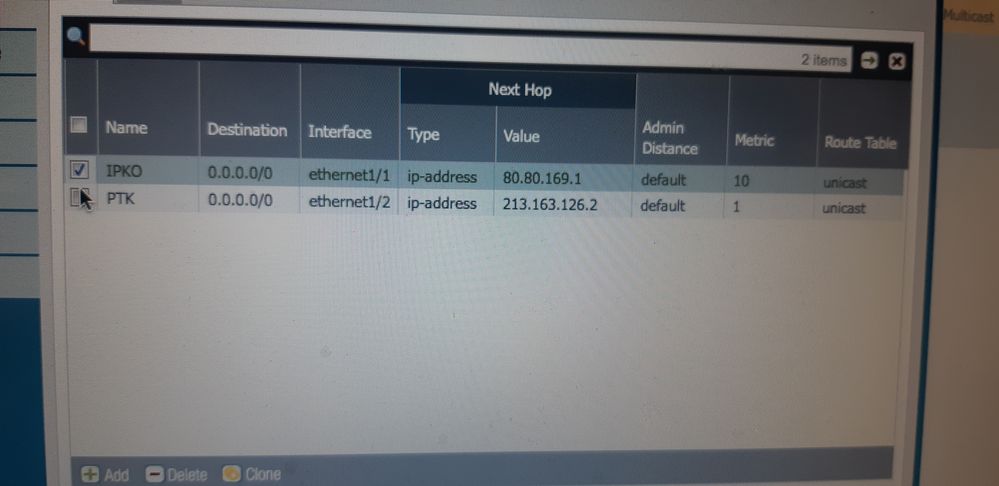

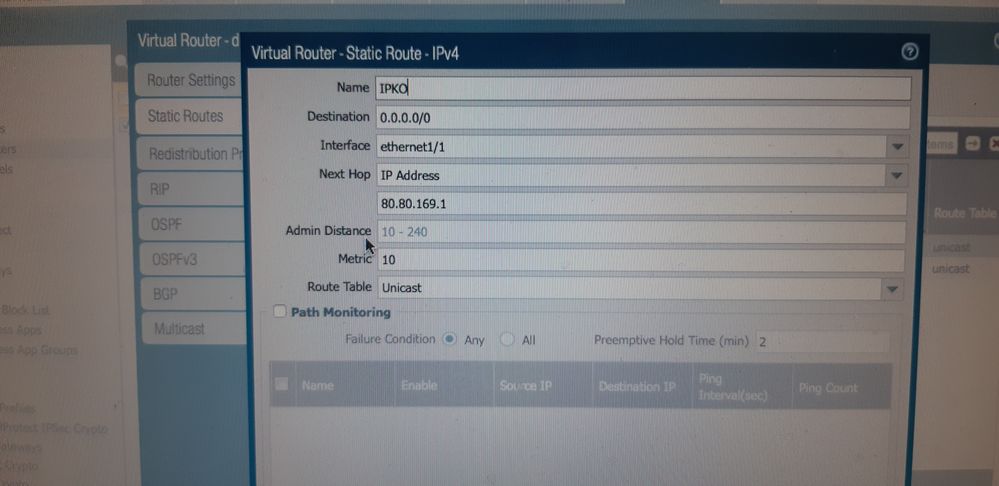

Static Route:

   Default:  0.0.0.0/0

   Next Hop:  80.80.169.1

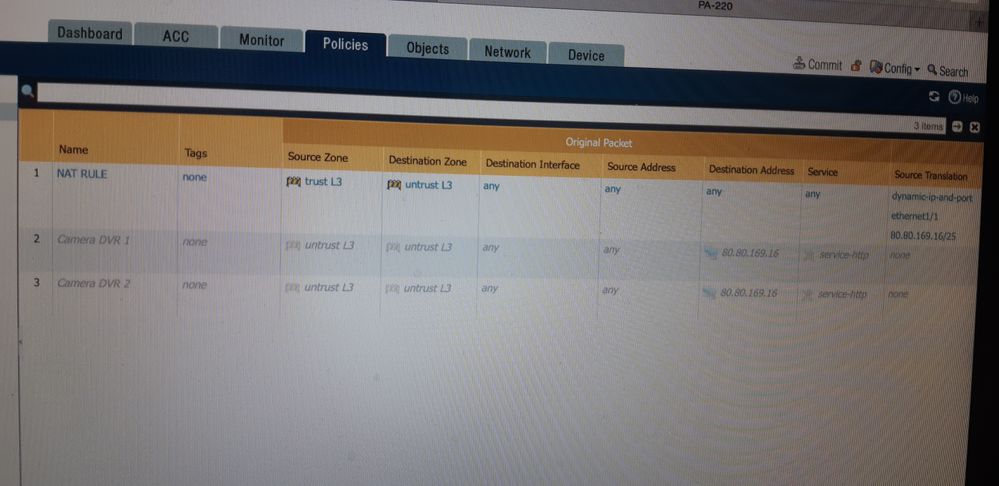

NAT Policy

     Original Packet

         Source Zone:  trust

         Destintaion Zone:  untrust

         Destination Interface: any

         Source and Destination address:  any

     Translated Packet

         Translation Type:  Dynamic IP and Port

         Address Type:  Interface Address

         Interface:  ethernet1/1

         IP address:  80.80.169.16/25



ethernet1/1

         Zone:  untrust

         IP:  80.80.169.16/25



ethernet1/3

         Zone:  trust

         IP: 192.168.1.1/24

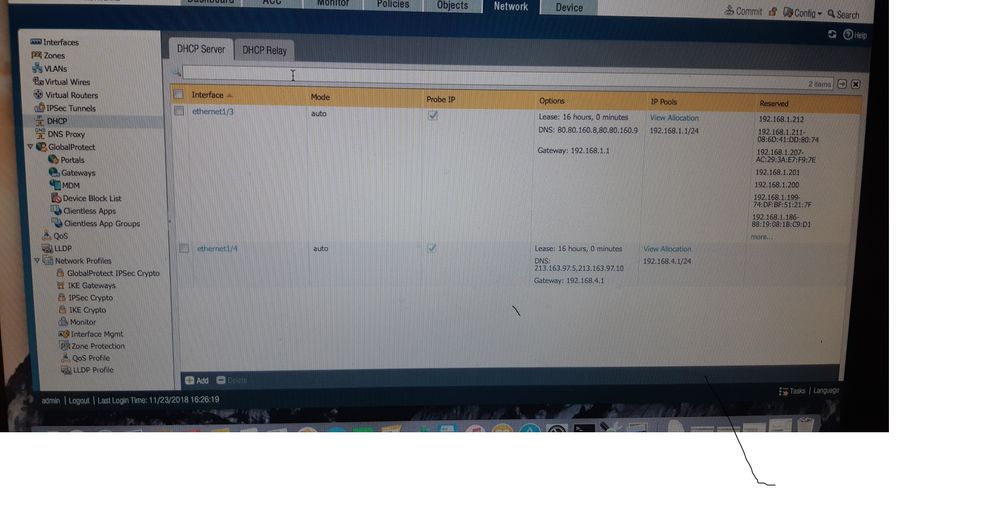

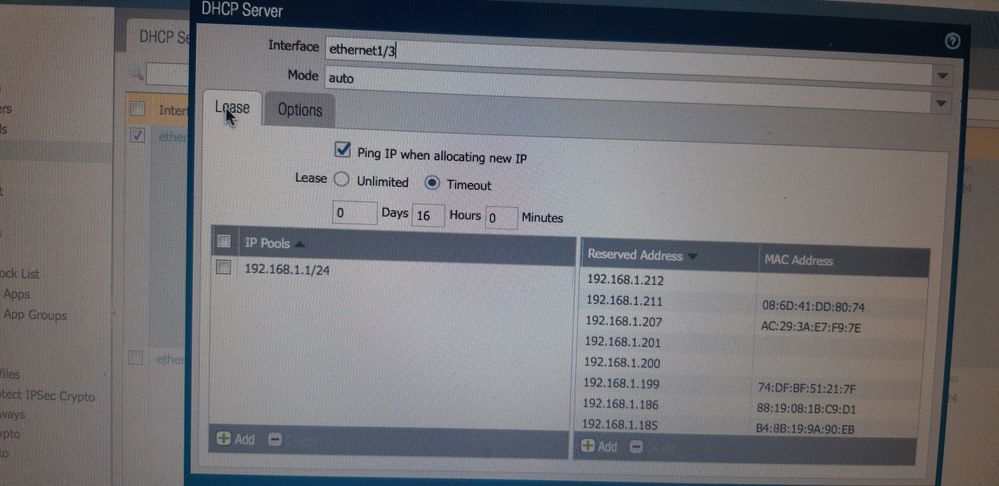

DHCP Server

         ethernet1/3

         IP Pool:  192.168.1.1/24

         GW: 192.168.1.1

         Subnet Mask:  255.255.255.0

         PDNS:  80.80.160.8

         SDNS:  80.80.160.9



I still cannot connect to the internet.  I can do the following though...



flushdns, release ip, connect to the internet via PA220 .  When I get in, I have about 2 minutes before I get kicked out.



During that time, I can tracert to both 8.8.8.8 and google.com, etc.  I can ping the interface, the dns servers and the wan gw.



From CLI I can look at any/all session id's.  They all end with a reason of n/a or aged out.  Some are at INIT state, others ACTIVE.



When I could not get in at all and saw that the protocal in the session id was almost always udp (dns appl.), I uncreased that timer to 120 sec.  That seems to allow me to play this game.



Can you help?



Thanks very much.





L1 Bithead

Re: DNS "Aged Out"

My PA-220 software version is 8.0.3.



There is an update in the 8.0.7 version that fixes a DNS failure issue due to BFD packets being associated with the destination port and not DNS packets.



Checking into this...thanks for any input.

L7 Applicator

Re: DNS "Aged Out"

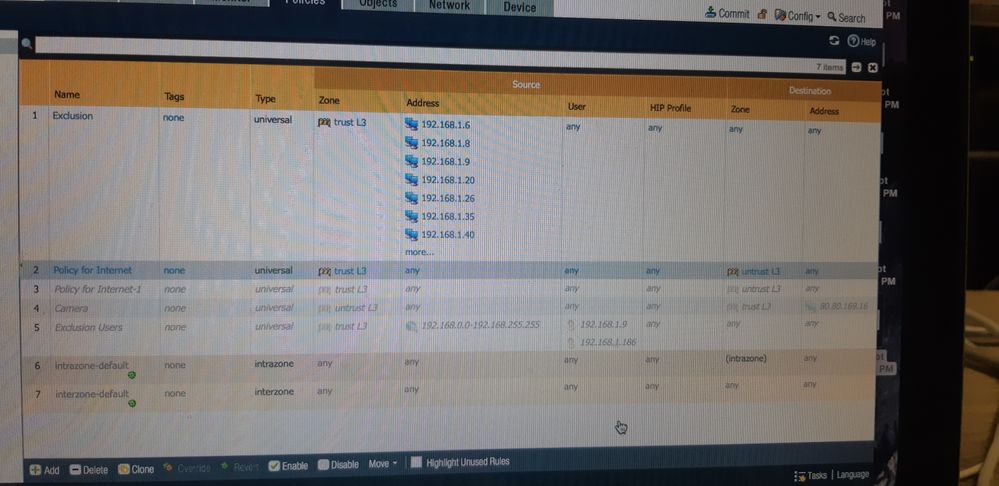

What you have there now looks good.  I assume there is also a security policy from trust to untrust allowing the internet access.



If you have a computer you can plug into the service port instead of the PAN and manually configure this information on the NIC.

WAN IP:  80.80.169.16/25  (x.x.x.16 is mapped ... on the ISP side...to the PA 220 mac address)

GW:  80.80.169.1



PDNS:  80.80.160.8

SDN:  80.80.160.9



Then test with your ISP.  This removes the firewall from the path and the computer connected on this WAN address should have full internet access.



You mention the ISP is doing mac address locks.  So to do this test they would have to release that and allow the address to be used by the computer.



This will confirm whether the issue is some configuration on the PAN or the service itself not allowing full access.



Steve Puluka BSEET - IP Architect - DQE Communications (Metro Ethernet/ISP)
ACE PanOS 6; ACE PanOS 7; ASE 3.0; PSE 7.0 Foundations & Associate in Platform; Cyber Security; Data Center

Re: DNS "Aged Out"


@j.anderson wrote:

flushdns, release ip, connect to the internet via PA220 .  When I get in, I have about 2 minutes before I get kicked out.



During that time, I can tracert to both 8.8.8.8 and google.com, etc.  I can ping the interface, the dns servers and the wan gw.






If you can reach google DNS (8.8.8.8) and you suspect faulty ISP DNS. Why don't you try to put 8.8.8.8 as DNS for the PC behind the firewall?



For DNS you will always see the session ending reason - Aged out. that is because DNS is UDP and as such there is no way firewall knows when connection is ended or not. If it is TCP connection you have FIN or RST flags to mark the ending of a connection, firewall can see that and note in the logs that connection has ended normaly (with FIN) or is being reset by the client or server. UDP on other hand doesn't provide such functionality, so FW cannot tell if there are no other packets after the DNS reply. Thay is why FW is waiting for the DNS timeout timer to expire to remove the connection from the connection table. A healthy DNS connection will still be closed as aged-out, even if the reply was received right after the request.



For that reason the UDP timeout timer is relevantly slow number, if it is higher you can end up with lots of old connection filling the firewall table.



In my huble opinion there are quite a lot other scenarios that I don't see how increasing the UDP timeout can solve your issue. If you increase it to 120sec and you see improvment, that is not problem of the firewall, but you have HUUGE delay and even if you solve the dns you will have unusable slow connection.



At this point is quite clear for me that your ISP has some issues...If you are able to traceroute and ping 8.8.8.8 while you don't have internet connection, this clearly shows that you indeed have internet connectivity, but either the DNS you are using is having issues, or there is huge delay of the traffic.
