Dual IPsec Tunnel to same destination with ECMP

L1 Bithead

Dual IPsec Tunnel to same destination with ECMP

Hi everyone,

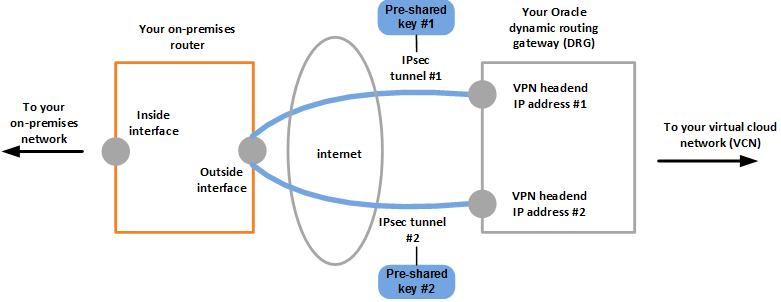

I would like to set up two ipsec tunnels to the same destination. I know I could do this by assigning the tunnel interfaces different metrics in the VR. But if I do that, only one tunnel will forward traffic at a given time. In our setup traffic needs to actively flow over any tunnel that is up:






















Can this be achieved with ECMP? I thought about creating a second VR with both tunnel interfaces being members in it and just enabling ECMP on the VR.We only have 1 WAN interface, does this have to be member of that VR or can it reamin in default VR.



Many thanks in advance for you help

Tags (2)
L4 Transporter

Re: Dual IPsec Tunnel to same destination with ECMP

Are you using any dynamic routing protocol?  OSPF?  BGP?

L1 Bithead

Re: Dual IPsec Tunnel to same destination with ECMP

Hi Jeremy, no, at the moment just static routes.
