Let imagine the following situation:
PA Firewall connected to two ISP, e1/1 - 22.214.171.124 and e1/4 - 126.96.36.199.
Default virtual router with ECMP configured with weights e1/1-50 and e1/4-50.
IPSEC tunnel configured to the remote site, IKE Gateway configured on interface e1/4.
Tunnel is green, everything seems to be fine... but:
I see around 50% packets lost.
During troubleshooting I see that half of the ESP packets goes via e1/1 and other half via e1/4.
Pacekts which goes via e1/1 has IP address of e1/4 (188.8.131.52) and are lost.
I assume that I could use a PBF to resolve this issue, am I right?
Solved! Go to Solution.
Unfortunaltely not, and it seems that I have the same issue with GlobalProtect.
I have one tunnel with static IP, and I did a workeranoud - putted static route to this particular IP.
In case of other tunnels, I putted also static routes as a temporary solution.
But of course it's not what I want to have.
Any ideas how to exactply configure PBR?
I tried with:
Zone Internet, Source IP 184.108.40.206 forwarded to e1/4 - but it doesn't work....

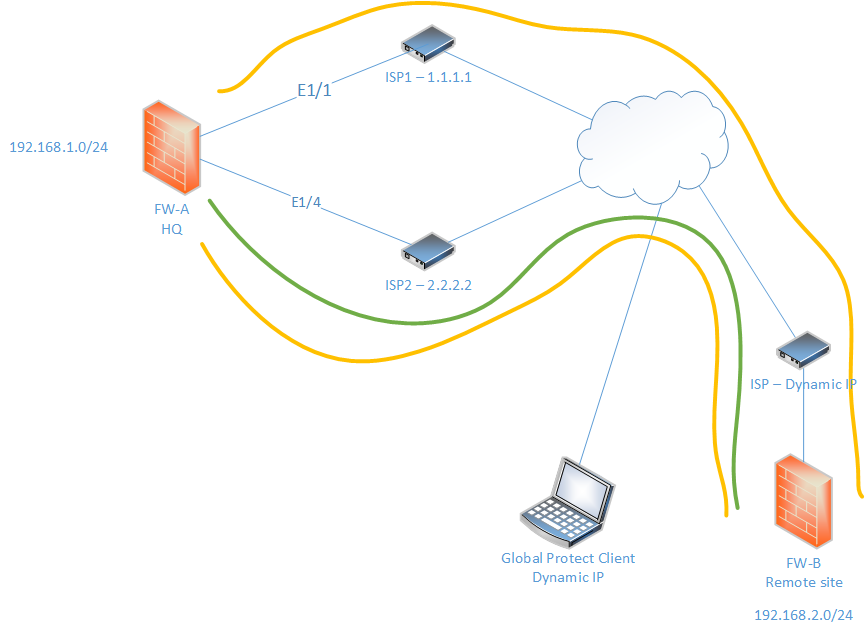

I enclosed a drawing to make it more clear.
On IKE GW local interface is configured to e1/4 - so all IKE1 traffic goes well (green line).
Unfortunately ESP packets are load balanced and goes via e1/1 and e1/4 (orange lines).
What I have to do is to force PA to send ESP packets via e1/4 interface.
ESP packets always have correct IP source address (220.127.116.11) only issue is that half of it goes via e1/1 interface.
Thank you in advance for your help.
Traffic generated on the firewall, like in this case doesn't work with the PBR.
I fiexed the problem by configuring two Virtual Routers - each one for a provider.
Then instead of ECMP I configured a load sharing with redundancy (for internet traffic, not for the vpn tunnels).
