Integrate a DMZ with virtual F5 to the PA FW

Reply
Highlighted
L2 Linker

Integrate a DMZ with virtual F5 to the PA FW

I would like to add a virtual F5 as a proxy to our exsiting 5220 PA FW. As I have never done a DMZ to a virtual device, I am jsut wondering there a sample scenario or configuration.

If my F5 was a physical device, I will just assign an IP address to my FW interface with zone as DMZ. But if my DMZ device is virtual (setup in the datacenter in the inside network), how would I configure my FW interface?

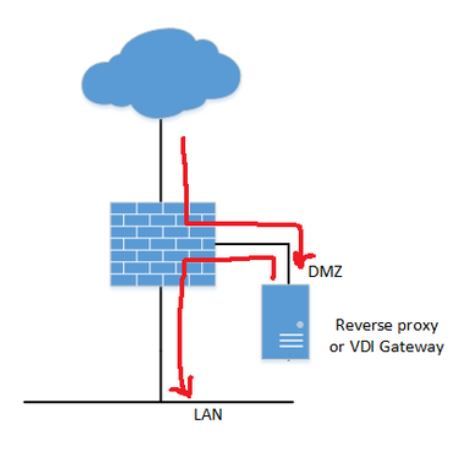

I found this picture from a thread in this community and that is what I'd like to setup, except that the DMZ is virtual. Thank you in advance for any thoughts.




Tags (3)
L7 Applicator

Re: Integrate a DMZ with virtual F5 to the PA FW

Cool, someone used my drawing....



this depends on your interpretation of a DMZ.



for me, dedicated cable and switches etc to your datacentre as the DMZ is not classed as trusted.



you may be happy with creating a new vlan through to your F5’s but this will also require a new ip interface, not sure if this can be done on a VF5 as all of ours are appliances.



there are some good network peeps on this forum so they may have better ideas or perhaps i have not fully understood your request.



is your F5 also used for internal users, this info may help others advise...

L2 Linker

Re: Integrate a DMZ with virtual F5 to the PA FW

Thanks MickBall for the diagram. Yes my DMZ will be virtual as I only have the virtual version of the F5. The selected traffic that needs to be inspected by the F5 will be gonig from the FW to the F5, back to the FW and ti the internal network. We will be doing a lot of URL translation. That is why we need to use the virtual F5 as the proxy



I guess another way to ask this question is what is the best practice to implement a virtual DMZ?

L7 Applicator

Re: Integrate a DMZ with virtual F5 to the PA FW

Could you give more info on the virtual f5 address, what else is it used for, why can it not be changes, also... do you have seperate ip interfaces for real and virtual servers on the f5 itself or just the 1 interface.



L4 Transporter

Re: Integrate a DMZ with virtual F5 to the PA FW

I guess the real question is, do you have your "DMZ" extended into your virtual environment.  If so, why not just configure the F5 as if it were a physical device?  I'm confused on what exactly your question is.

L2 Linker

Re: Integrate a DMZ with virtual F5 to the PA FW

I do not have a virtual DMZ environment and I am just confused about the virtual and physical DMZ. I have not done any virtual DMZ. To me the DMZ is isolated from the intrnal network. But looking at the virtual environment which in my case sits in the datacenter in the internal network. So for the external traffic to traverse the internal network to get to the virtual DMZ seems to me that it is not a true DMZ. Even though the VLAN can isolate the traffic. I am not familiar with the VMWare ESXi so I don't know if they have their own version of secured DMZ.

L4 Transporter

Re: Integrate a DMZ with virtual F5 to the PA FW

Just remember "DMZ" is a loose term.  There is no hard definition.  It is more a practice of traffic segregation.  I have multiple "DMZs" in my environment.  Personally I don't even like the term DMZ.  It's really comes from quasi dated Firewall Sandwich or DMZ on a stick designs.  Once you start East-West traffic filtering, this becomes a very grey area.  It's really up to you to decide how you want to segregate your traffic and what you want to call it.



I think you need to sit down, have a serious conversation with your virtualization group, discuss the implications of putting the F5 in their environment, and how you want to segregate this traffic.  If there is enough of a security concern, maybe you go so far as to physically segment out a virtual environment for devices like the F5.

L2 Linker

Re: Integrate a DMZ with virtual F5 to the PA FW

Yes. That makes sense to have a conversation with the virtual team. To me the "DMZ" should be isolated from the internal network. Thanks for all the feedbacks. Appreaciate it.

L7 Applicator

Re: Integrate a DMZ with virtual F5 to the PA FW

below is perhaps one way of setting up your virtual DMZ within your data centre.



however...

you will then need to decide, based on your security requirements, how traffic will traverse your network to the untrusted interface of the ESX host.



just seen your comments regarding the virtual team.   perhaps you could update when you have the answer...



Good Luck...
