Not synched

Reply
L4 Transporter

Not synched

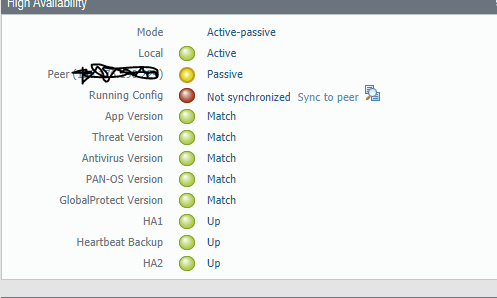

My HA pair don't show synched and when I do a manual synched it say it completed successfully but the GUI show otherwise


L7 Applicator

Re: Not synched

@jdprovine,

Have you actually verified in the CLI by looking at the job id that it didn't actually error out on something? That would be the first thing I look at. If that's showing fine I would make a nominal change to the firewall, like a "test" object with the address 9.9.9.9, manually sync the config and then export the running-config off the passive firewall and see if "test" is present or not.

L4 Transporter

Re: Not synched

@BPry

Yup I did check the CLI and it never shows an error, in fact it shows that it is successful. But it also says that the configs are not in synch. TAC was able to help me and we ended up doing  a commit force on both firewall and then a synch through the command line on the active firewall.  To me it seems like an issue with something that is different but not tracked in the regular logs, maybe a URL block list from the internet? It commits but never shows up in the configuration logs only the system logs

L1 Bithead

Re: Not synched

You may want to see if you have the "Enable Config Sync" option enabled (check-marked).  This is in the "Device > High Availability > General" tabs.

L4 Transporter

Re: Not synched

@ErnieLouie



Yes it enabled

L1 Bithead

Re: Not synched

@jdprovine  - the other thought... which you may have already looked at, but you may want to verify:



In an HA pair, both peers must be of the same model, must be running the same PAN-OS and Content Release version, and must have the same set of licenses.





L4 Transporter

Re: Not synched

@ErnieLouie

TAC was able to help me and we ended up doing  a commit force on both firewall and then a synch through the command line on the active firewall

L1 Bithead

Re: Not synched

Would definitely be helpful if you posted the solution on how TAC helped.

L4 Transporter

Re: Not synched

@Mike.ship



They did a commit force on the Primary firewall followed by a commit force on the secondary firwall

L1 Bithead

Re: Not synched

Much appreciated!
