PA-820 8.0.2 high management cpu repeatedly

Reply
L4 Transporter

PA-820 8.0.2 high management cpu repeatedly

Hey!

My PA-820 firewall does have a cpu utilization of 100% every day on exactly 13:04 o'clock.

It lasts for 3 minutes.

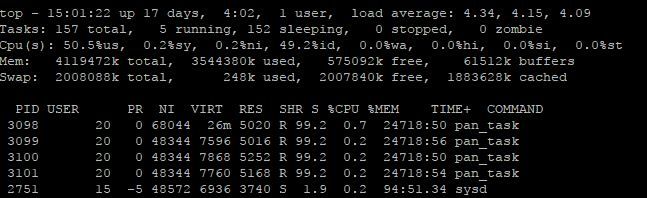

Top shows me four "pan_tasks":


Can someone help?

L7 Applicator

Re: PA-820 8.0.2 high management cpu repeatedly

@MPI-AE,

Do you have packet-diag turned on?

L4 Transporter

Re: PA-820 8.0.2 high management cpu repeatedly

Sorry?

L7 Applicator

Re: PA-820 8.0.2 high management cpu repeatedly

@MPI-AE,

Run the following and see the output is, this should be disabled.

debug dataplane packet-diag show setting

Also, see if you don't have this log file if you can.

less mp-log pan_task.log

You may have a pan_task_# depending on how long this has been going on. If you can look in that pan_task.log you may be able to see what it's actually doing.

L4 Transporter

Re: PA-820 8.0.2 high management cpu repeatedly

--------------------------------------------------------------------------------
Packet diagnosis setting:
--------------------------------------------------------------------------------
Packet filter
  Enabled:                   no
  Match pre-parsed packet:   no
--------------------------------------------------------------------------------
Logging
  Enabled:                   no
  Log-throttle:              no
  Sync-log-by-ticks:         yes
  Features:
  Counters:
--------------------------------------------------------------------------------
Packet capture
  Enabled:                   no
  Snaplen:                   0
  Username:
--------------------------------------------------------------------------------
---__pan_debug_tag=-2098840---pan_sys_up_ticks=1099509528640---
wqe groups are:
        index:0 flow_lookup
        index:1 flow_fastpath
        index:2 flow_slowpath
        index:3 flow_forwarding
        index:6 nac_result
        index:7 flow_np
        index:8 dfa_result
        index:9 module_internal
        index:10 aho_result
        index:11 zip_result
        index:14 flow_host
thread id is : 4
Multicast fib shared memory usage: 14996136
pan_pbf_mem_use allocate memory size is 465880
pan_vsys_zone_id_list memory is 72.
Neighbor Discovery shared memory usage: 3550512
pan_dos_mem_use dos_class_max_buckets:51200, class_tbl_sz:20684800 bytes
pan_dos_mem_use  dos_block_max_buckets:1024, block_tbl_sz:180224 bytes
pan_dos_mem_use  dos_max_vsys:2, dos_max_rules:100, prof_rt_tbl_sz:8400 bytes
pan_dos_mem_use DoS memory total allocated is:20873480 bytes
pan_sifnet_mem_use sifnet_max_buckets:4096, sifnet_tbl_sz:1572864 bytes
pan_sifnet_mem_use sifnet memory total allocated is:1572880 bytes
IPSec transport mode shared memory usage: 64008
pan_tunnel_app_init set tunnel_data 0x800000029fccf580 for net_data 0x80000002a07c3580
now initing ciphers
now setting evps
ssl ready : 0
In pan_cfg_ucache_app_init
thread id is : 4
Multicast fib shared memory usage: 14996136
pan_pbf_mem_use allocate memory size is 465880
pan_vsys_zone_id_list memory is 72.
Neighbor Discovery shared memory usage: 3550512
pan_dos_mem_use dos_class_max_buckets:51200, class_tbl_sz:20684800 bytes
pan_dos_mem_use  dos_block_max_buckets:1024, block_tbl_sz:180224 bytes
pan_dos_mem_use  dos_max_vsys:2, dos_max_rules:100, prof_rt_tbl_sz:8400 bytes
pan_dos_mem_use DoS memory total allocated is:20873480 bytes
pan_sifnet_mem_use sifnet_max_buckets:4096, sifnet_tbl_sz:1572864 bytes
pan_sifnet_mem_use sifnet memory total allocated is:1572880 bytes
IPSec transport mode shared memory usage: 64008
pan_tunnel_app_init set tunnel_data 0x800000029fccf580 for net_data 0x80000002a07c3580
now initing ciphers
now setting evps
ssl ready : 0
In pan_cfg_ucache_app_init







The four pan tasks show a cpu usage of 99% and a very high duration.

These processes are dead, in my opinion

L4 Transporter

Re: PA-820 8.0.2 high management cpu repeatedly

Does anyone have a hint for me?



Is there a way to kill processes? So I could kill the four pan_tasks?

L4 Transporter

Re: PA-820 8.0.2 high management cpu repeatedly

I still don't have any solution.



I upgraded to 8.0.7 last week, but that didn't help.



I have two additional PA-3020 and they don't show that issue.



When I do a "show system resources" on the PA-3020's, there aren't those pan_tasks.



Does someone have a PA-820 and can tell me if there are these pan_tasks, too ?



Or is the cpu of the PA-820 too weak and that's normal?



I mean, I don't even know what the firewall is doing that raises the cpu to 100%.



I don't even know if the pan_tasks are responsible for that, but they are indeed suspicious.



Especially they aren't on the 3020's.



Contact Palo Alto?

L7 Applicator

Re: PA-820 8.0.2 high management cpu repeatedly

@MPI-AE,

I assumed the last time that you've restarted since these showed up, but always a good question just to verify?

Possibly run the show management-clients and show jobs all just to verify that something isn't noticably stuck that we could easily restart the process for.



Short of that I would contact TAC and see if they would be able to give you any insight into what exactly is going on. Prior to opening a ticket I might simply get a technical support file attached to it right from the get-go. They will surely ask for one and having one already attached may save you a little time.

L4 Transporter

Re: PA-820 8.0.2 high management cpu repeatedly

@BPry



Yes, I did a restart.



Maybe that's a normal behaviour of the PA-820.



Therefore, it would be very useful if a community member who uses a PA-820 can share some experience.



I don't want to make myself look stupid.



What do you think?

L1 Bithead

Re: PA-820 8.0.2 high management cpu repeatedly

Hi MPI-AE,



today I saw the same behaviour on two PA-820 devices.



Did you get more detail about this 100%-CPU pan_tasks, yet?





Regards,

Andi
