VPN site-2-site configuration and OSPF

Hello forum members,



I have been testing the VPN site-2-site configurations on my Palo Alto VM lab, prior to deploying on our production environment. I have successfully set up a VPN connection where both firewalls use static routing. Trouble I'm having now is setting up the VPN connection where the 3rd party site uses static routing and my corp LAN uses OSPF.



I can't get the tunnel up between the two sites. I followed the Site-2-Site VPN with Static and Dynamic Routing example in the PAN-OS Admin guide, but some of the steps seem vague (vague to me any way). My R1 router has formed an OSPF neighbour relation ship with the Palo Alto VM-PA-01 fine and the PC host 172.19.9.10 can ping the E1/2 interface (10.216.7.1) of the Palo Alto fine.



The following is my lab topology and screen shots of the configs.

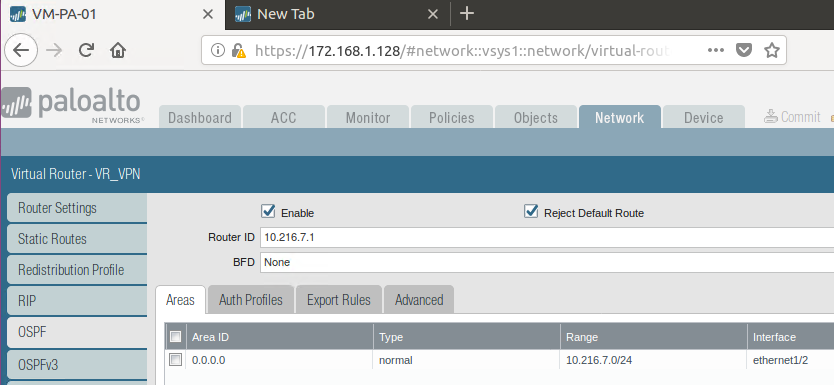

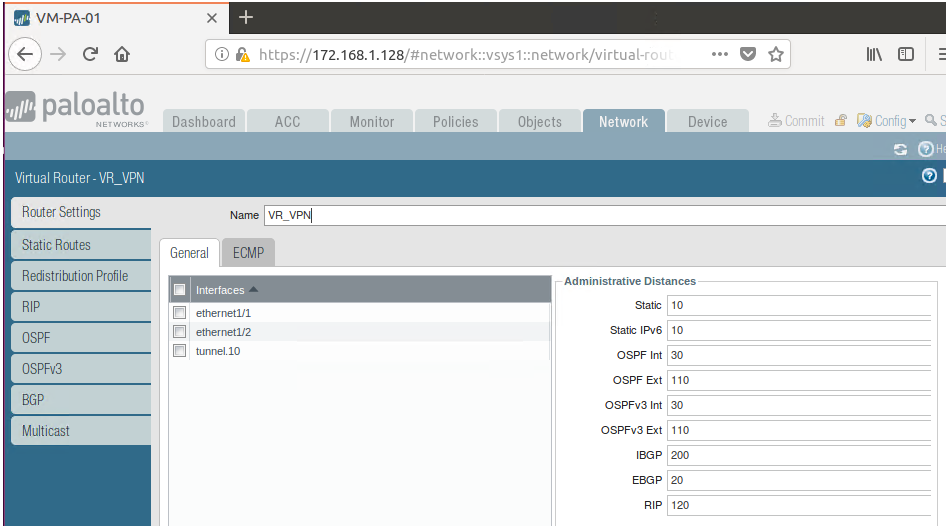

VM-PA-01 config.
















redist profile.PNG

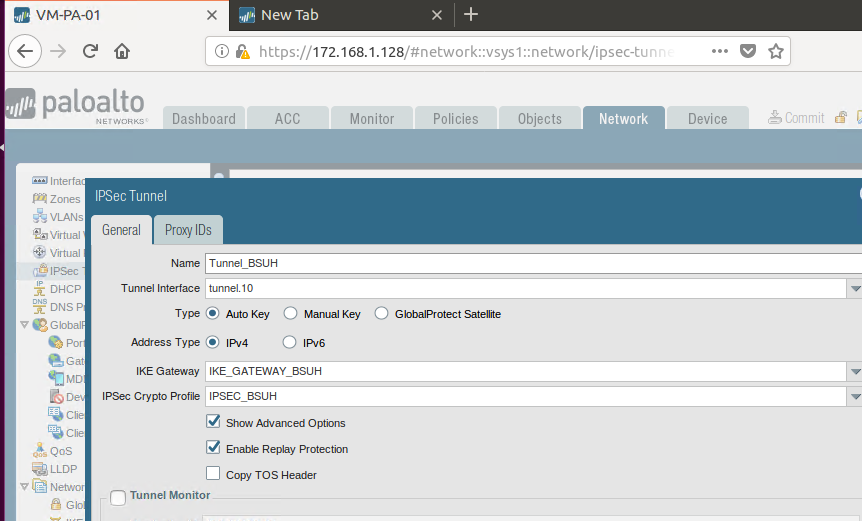

IPSEC tunn.PNG

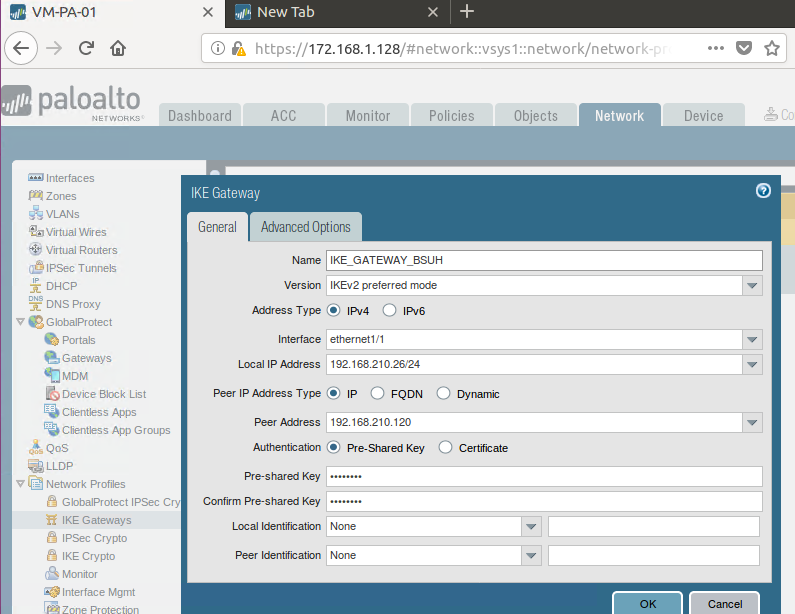

IKE gate1.PNG



*** I also tried this IKE Gateway config with the FQDNs, as in the PAN-OS guide ***

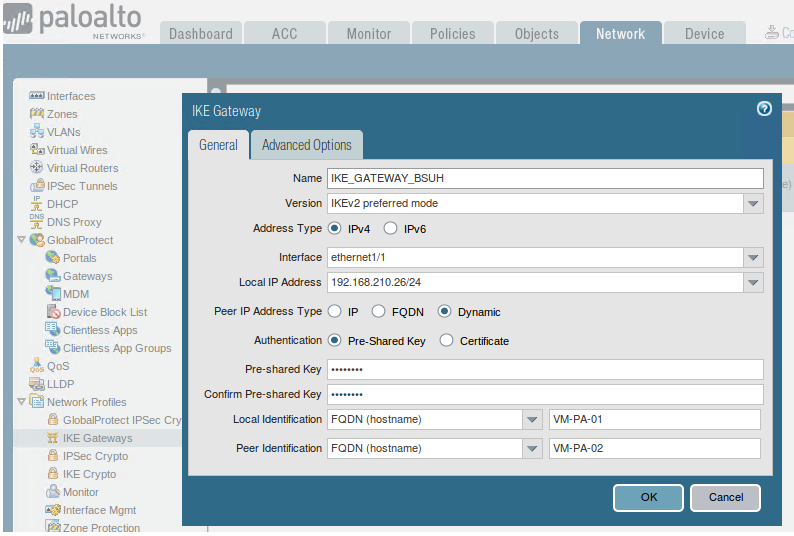

IKE gate2.PNG

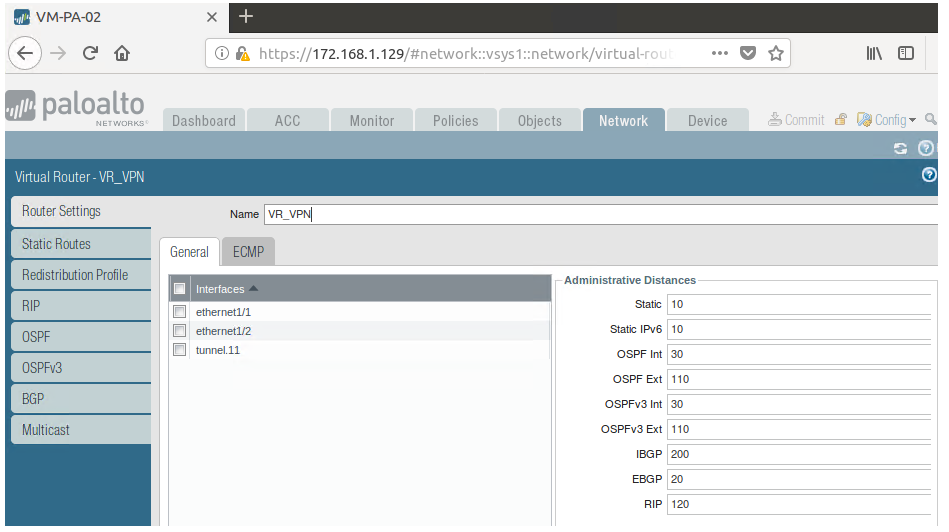

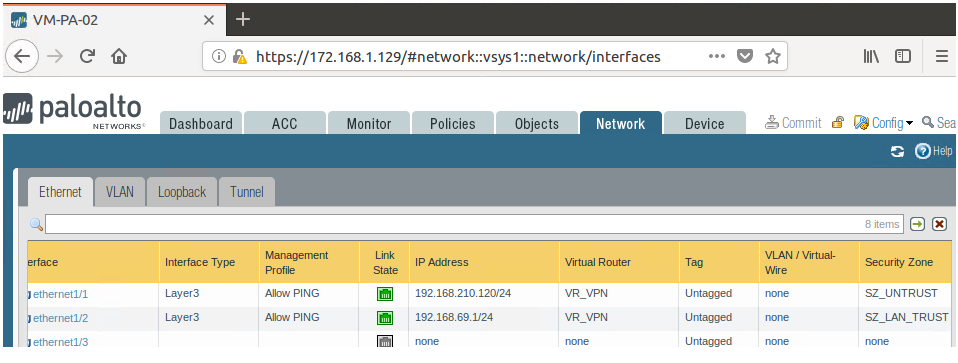

VM-PA-02 config.

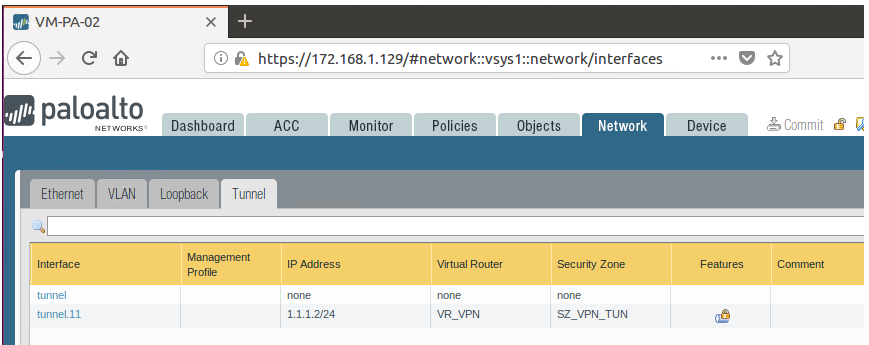

tunnel int.PNG

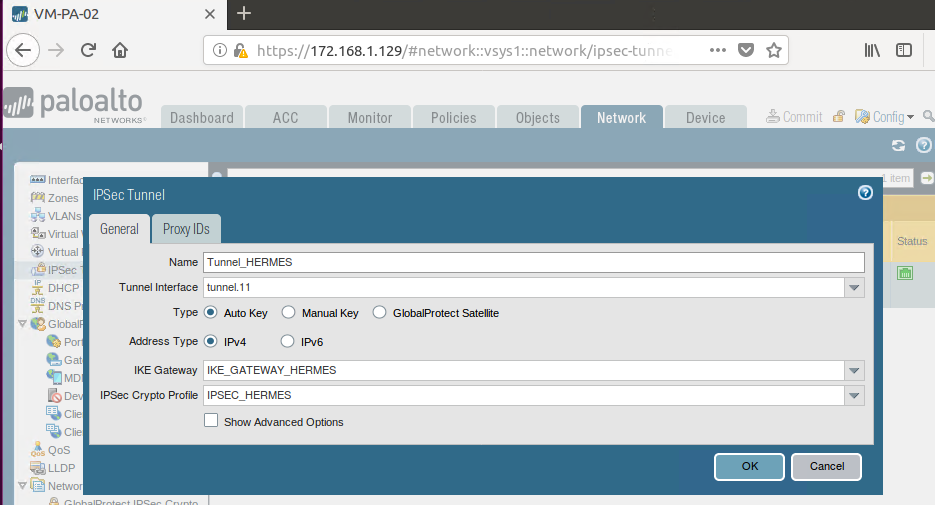

IPSEC tun.PNG



ike 1.PNG



*** I also tried this IKE Gateway config with the FQDNs, as in the PAN-OS guide ***



ike 2.PNG






Any suggestions and advice will be much appreciated.





L7 Applicator

Re: VPN site-2-site configuration and OSPF

Hello,

I took a bit of a look, and I didnt see a route between the PAN's? Can the external interfaces of the two ping each other? You will have to add a monitoring profile to it so they can reply as well as a security policy. What I do is always have a static route between the two for monitoring, but they need to be able to see each other.



Just a thought.

L7 Applicator

Re: VPN site-2-site configuration and OSPF

In the OSPF configuration, do you have the redistribution rule setup to pull in the static route pointed to the remote site vpn and distribute it down to your "corp" lan for the return path.



Steve Puluka BSEET - IP Architect - DQE Communications (Metro Ethernet/ISP)
ACE PanOS 6; ACE PanOS 7; ASE 3.0; PSE 7.0 Foundations & Associate in Platform; Cyber Security; Data Center
L2 Linker

Re: VPN site-2-site configuration and OSPF

@OtakarKlier

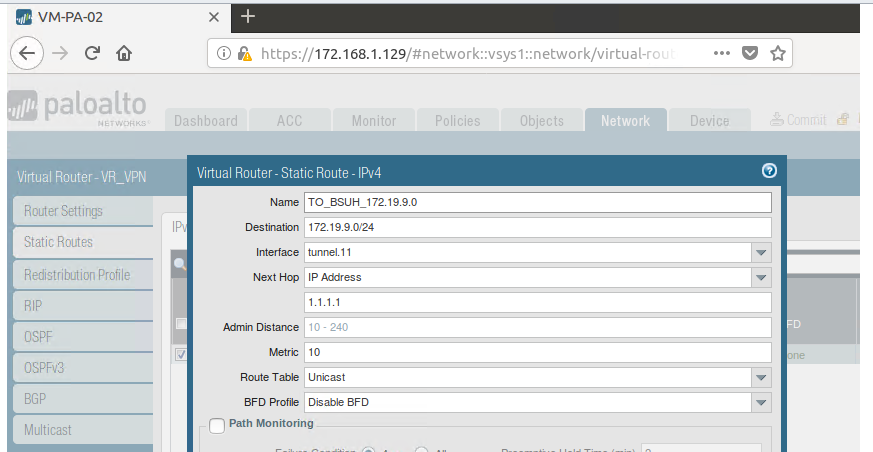

Thank you for your reply. I can't ping between the two Palo's on IPs 192.168.210.26 and 192.168.210.120, which are assigned to their e1/1 interfaces. I have set up statics routes anda security policy as follows on both Palo's as suggested.






VM-PA-01 config.

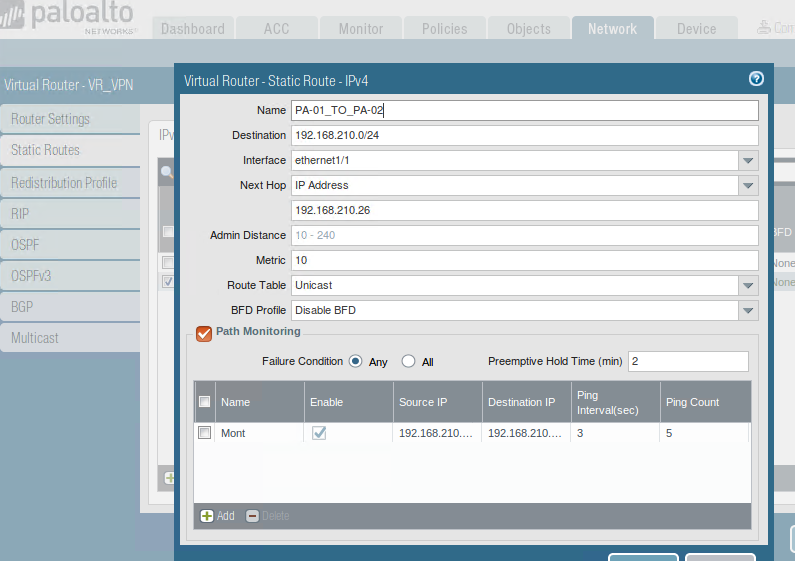

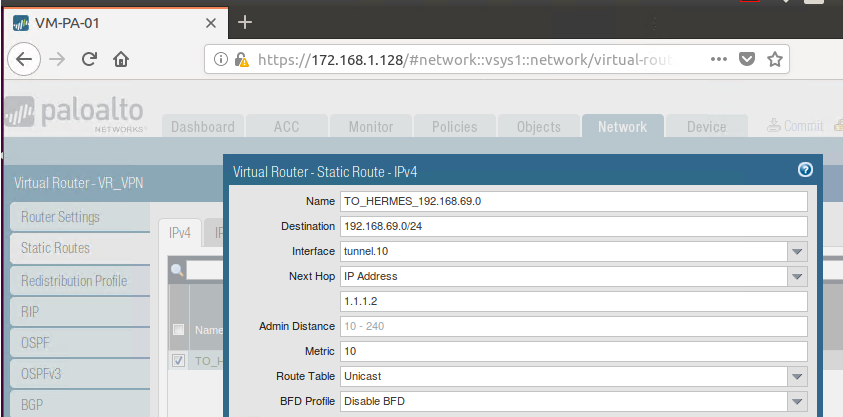

Static 1.PNG

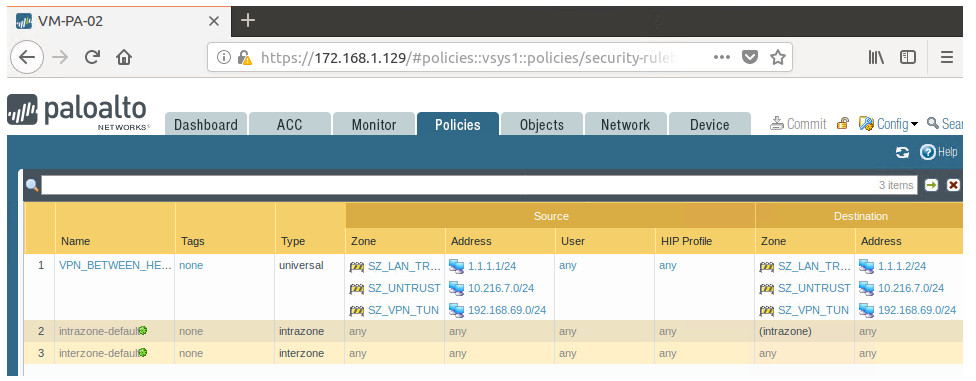

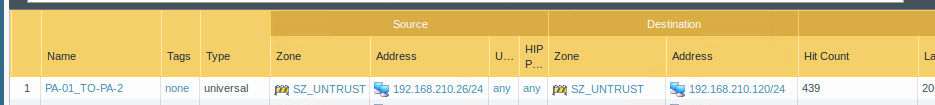

Policy 1.PNG



VM-PA-02 config.









Any further advice is appreciated.

L2 Linker

Re: VPN site-2-site configuration and OSPF

@pulukas



Hi pulkas,

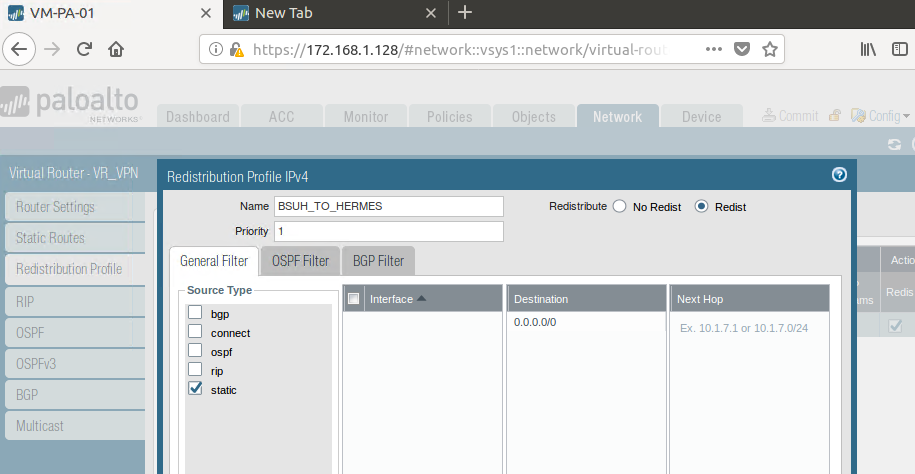

I have created this profile (underlined in red), is this what you mean?



ospf redis.PNG





L7 Applicator

Re: VPN site-2-site configuration and OSPF

Hello,

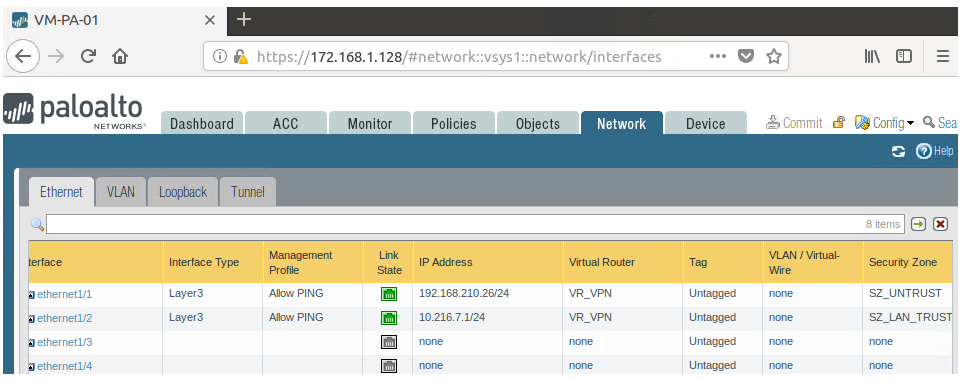

Make sure you have set an Interface Management Profile and at least allow ping on both PAN's. It looked like your security profile would already allow ping.






Keep an eye on the logs to see what is getting blocked if anything.



Regards,

L7 Applicator

Re: VPN site-2-site configuration and OSPF

Hello,

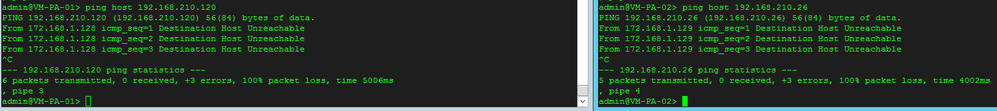

I just noticed you didnt source your pings so they would have come from the maangement interface. Try the following:



From VM-PA-01
Ping source 192.168.210.26 host 192.168.210.120

From VM-PA-02
Ping source 192.168.210.120 host 192.168.210.26



See if that returns any good replies. But the fact that the pings stated 'Destination Host unreachable' tells me that routing could be an issues from your management interface.

L4 Transporter

Re: VPN site-2-site configuration and OSPF

Have you assigned the underlined redistribution profile to an export rule in OSPF?

L7 Applicator

Re: VPN site-2-site configuration and OSPF

As rmfalconer notes, you also need to assign the redistribution profile to OSPF for it to become active.  Without both steps the local static route will not be redistributed to the rest of the OSPF infrastructure for the return path.



Steve Puluka BSEET - IP Architect - DQE Communications (Metro Ethernet/ISP)
ACE PanOS 6; ACE PanOS 7; ASE 3.0; PSE 7.0 Foundations & Associate in Platform; Cyber Security; Data Center
L2 Linker

Re: VPN site-2-site configuration and OSPF

Hi pulukas, rmfalconer, Otakar.Klier,



Thank you for your responses and advice.



@OtakarKlier- Both the Palo's can ping each other if I source the IPs, even when I don't have static rule set up



I lab'd this up again following the Site-to-Site VPN with Static and Dynamic Routing config guide in the PAN-OS 8.1 Admin guide and got the tunnels up with the remote sites pinging each other.






However, it did take a bit of tweaking with trial and errors, until I got the config working.  The config steps are not clear in the Admin guide, if one is new to Palo Alto and VPNs.



These are the observations I made when I lab'd this up again.

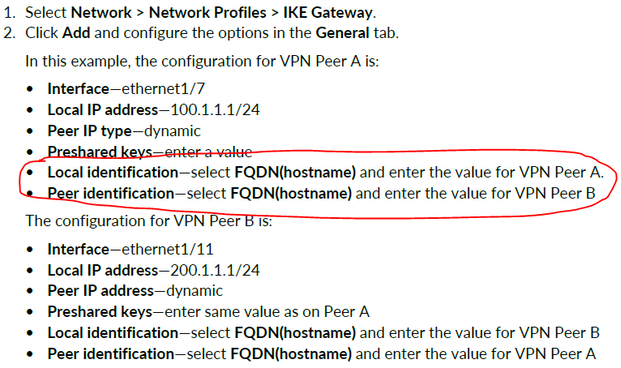

1. On the IKE Gateway configuration, the Admin. guide said use the FQDN for the local and peer identification. This did not work for me in my lab.

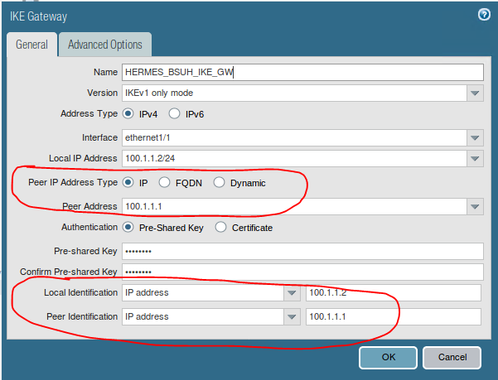

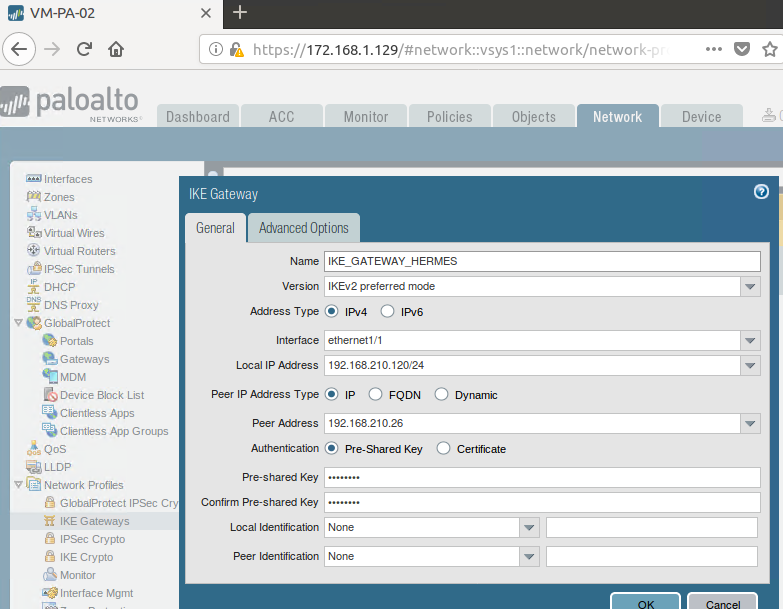

Instead, I used the following config on both Palo's, by specifying the Peer IP address and the local and the IP peer addresses for the Local and Peer identification:



IKE gate.PNG

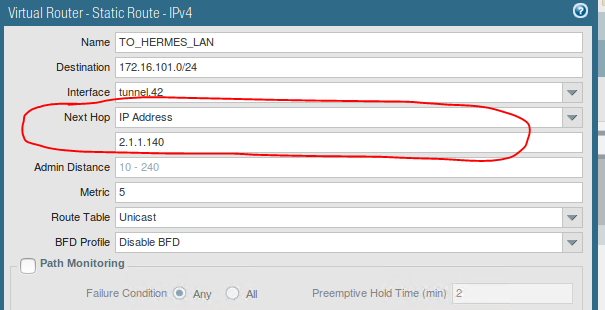

2. I was told that static routes pointing down tunnels should not have a next hop address defined. If it did not, how would the secure traffic travel across the tunnel? in order for my config to work, i had to specify the Next Hop IP address of the tunnel interface.






3. Both my Palo Alto's do not see each other as OSPF neighbours. Surely they would only see each other as OSPF neighbours, if both Palo's had OSPF running on them? Not sure why the guide stated this, only one of the Palo's has OSPF configured. The peer VM-PA-02 which has OSPF configured. has formed a neighbour relationship with router R1 fine.



Anyone else had to tweak things to their configs working?



Many thanks.
