Vwire connection between edge and distribution switch

Reply
L4 Transporter

Vwire connection between edge and distribution switch



We have stack of 2 edge switch and stack of 2 distribution switches.

We have linkagg containing 2 ports running between them.

IT is layer 2 connection only between edge and distro.

Also we have MAnagement vlan on switch so that users can access it remotely

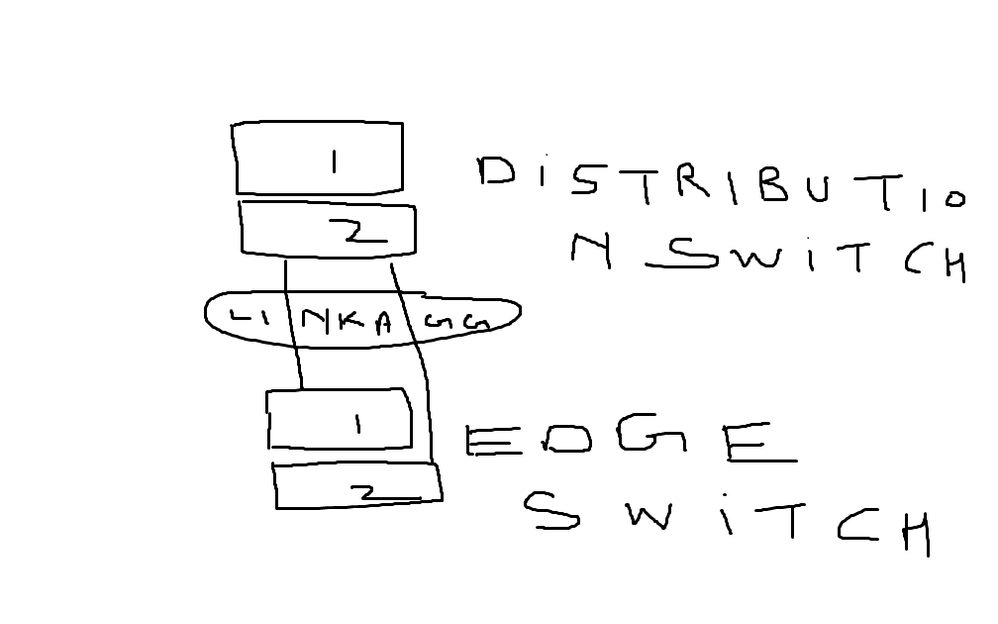

Need to put PA in vwire mode.vwire.png

So for vwire



I will have two pair of vwires and i will need to have



4 zones and two security polices to traffic flows from edge switch to distro.



if i need to ssh to edge switch then traffic flow is via the distribution switch in that case i need to allow ssh rule from both vwires as i do not know PA will use which physical link right?



L2 Linker

Re: Vwire connection between edge and distribution switch

Since your devices are using link aggregation, have you considered adding your vwire interfaces as an aggregate interfaces as well?
https://docs.paloaltonetworks.com/pan-os/8-1/pan-os-admin/networking/configure-interfaces/virtual-wi...

If for whatever reason you can't do this, do you need to have four separate security zones?  Could you put both "outside" interfaces in one security zone, and both "inside" interfaces in another, and use a single security policy?

L4 Transporter

Re: Vwire connection between edge and distribution switch

As far as i know vwire work in pairs.

So far have not like that putting different vwire in same zone.



Do not know how that will work will see if someone recommend that ?

Benefit if having separte  zones is that then you can see which port in linkagg uses amount of traffic.

As switch is doing hashing to use both ports of the linkagg to send traffic.

L2 Linker

Re: Vwire connection between edge and distribution switch

Yes, your vwires would still have pairs of interfaces, but that doesn't mean you are required to use four zones.  To clarify my previous comment, you can have two separate vwires with the inside/outside Ethernet interfaces in the same zone:

2019-12-03 15_48_10-PanoramaPWk01.png

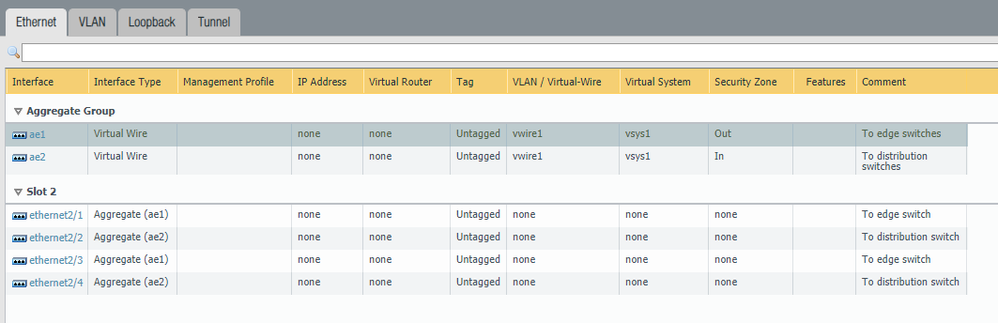

You could also have one vwire with aggregate Ethernet interfaces:
2019-12-03 16_09_34-PanoramaPWk01.png



Each option offers some advantages and disadvantages of course, and may or may not work for your situation.
