How to Perform FIB Lookup for a Particular Destination

by sraghunandan on ‎02-14-2013 06:10 PM (10,480 Views)

Overview

This document explains how to perform a fib lookup for a particular destination within a particular virtual router on a Palo Alto Networks firewall.

Steps

  1. Select the desired virtual router from the list of virtual routers configured with the command:
    > test routing fib-lookup virtual-router <value>

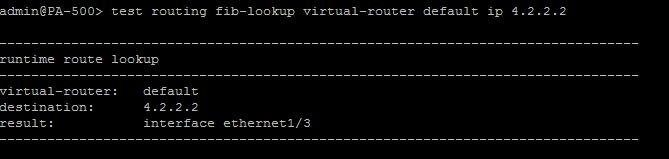

  2. Specify a destination IP address:
    > test routing fib-lookup virtual-router default ip <ip address>
    Note: The output shows the egress interface which will be taken for the destination.

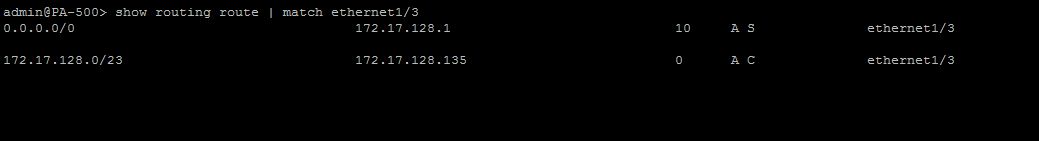

  3. To display route entries tied to an interface (for example, ethernet1/3), run the following command:
    > show routing route | match ethernet1/3
