Defending the Console: How AI and Zero Trust are Securing Web-Based Terminal Access in PANW

[JayGolf]

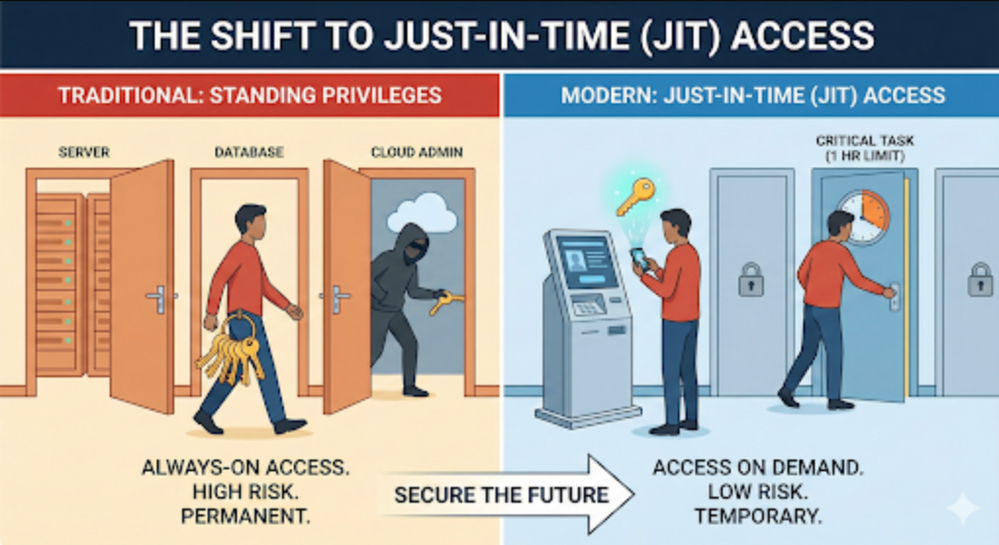

In the modern cybersecurity landscape, providing employees with permanent, always-on administrative privileges is a dangerous practice that leaves organizations vulnerable to credential theft and lateral movement. When a user account with standing privileges is compromised, attackers gain immediate and unrestricted keys to the kingdom, often going undetected for months. Just-in-Time (JIT) access eliminates this standing risk by granting granular permissions only upon request and for a strictly limited duration, effectively closing the window of opportunity for attackers.

At Palo Alto Networks, we are using this solution to provide access to the production environments over the browser through TTYD. Currently, we support:

• Kubernetes Clusters
• Virtual Machines
• Firewall Systems
• SQLPad Instances

But in this article, we’ll explore how we’ve extended JITA’s capabilities with the TMUX integration and optimized security management.

The Challenge

In modern DevOps and security operations, web-based terminal access using tools like TMUX exposed via web interfaces like TTYD offers immense convenience. However, this convenience introduces severe security vulnerabilities that traditional models fail to address.

The root problem lies in the conventional security paradigm. Once an attacker compromises valid credentials or hijacks a session (a common vulnerability in web-based sessions via token theft), they gain unrestricted terminal access, enabling lateral movement and privilege escalation.

Furthermore, terminal multiplexers rely on configuration files (e.g., .tmux.conf), which are significant attack surfaces, allowing for arbitrary command execution or the installation of persistent backdoors without validation.

Compounding this is the lack of sophisticated behavioral analysis. Current systems are command intent blind, unable to differentiate between a legitimate administrative action and malicious exploitation, leading to undetected unusual command sequences or timing patterns.

The Paradigm Shift: Continuous Behavioral Identity Verification

To close these gaps, we introduced a novel secure multiplexed terminal infrastructure that shifts security from simple credential checks to continuous identity validation. This system integrates three core innovations: AI-driven Behavioral Biometrics, Zero-trust Micro-segmentation, and Real-time Threat Mitigation.

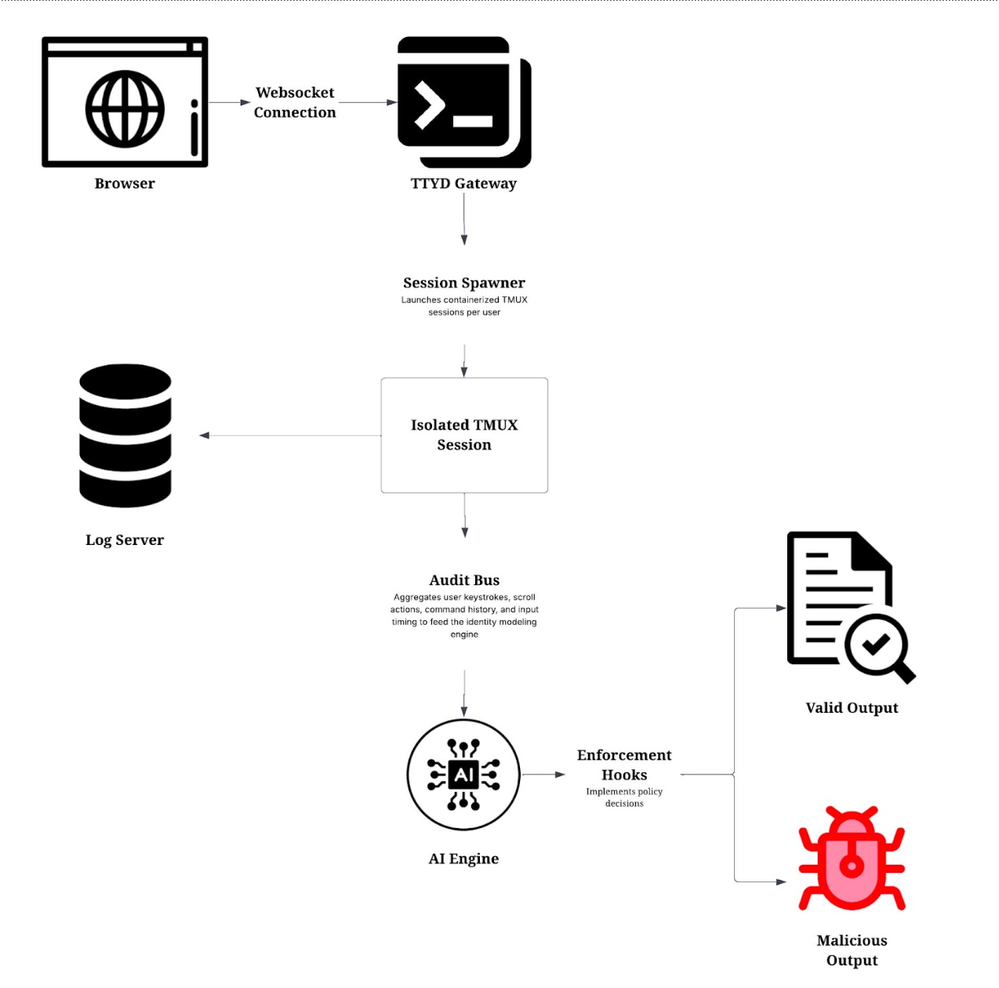

Fig: Architecture of the Terminal Multiplexer

The core technical innovation is multi-layered, ensuring protection at the gateway, execution, and policy levels.

Technical Deep Dive: Three Pillars of Identity-Centric Defense

1. The AI Identity Security Engine: Beyond the Password

Our solution implements an AI-Powered Behavioral Identity Engine designed for real-time profiling, using probabilistic and entropy-based modeling. Instead of relying solely on static credentials, the engine constructs a multi-dimensional behavioral fingerprint using:

• Command N-gram Analysis: Analyzing the sequence and structure of executed commands.
• Keystroke Dynamics: Analyzing typing speed and patterns.
• Temporal Pattern Recognition: Monitoring command timing and session flow.

This engine employs adaptive machine learning algorithms, including Kullback-Leibler Divergence Modeling and Shannon Entropy Analysis, for highly precise identity verification.

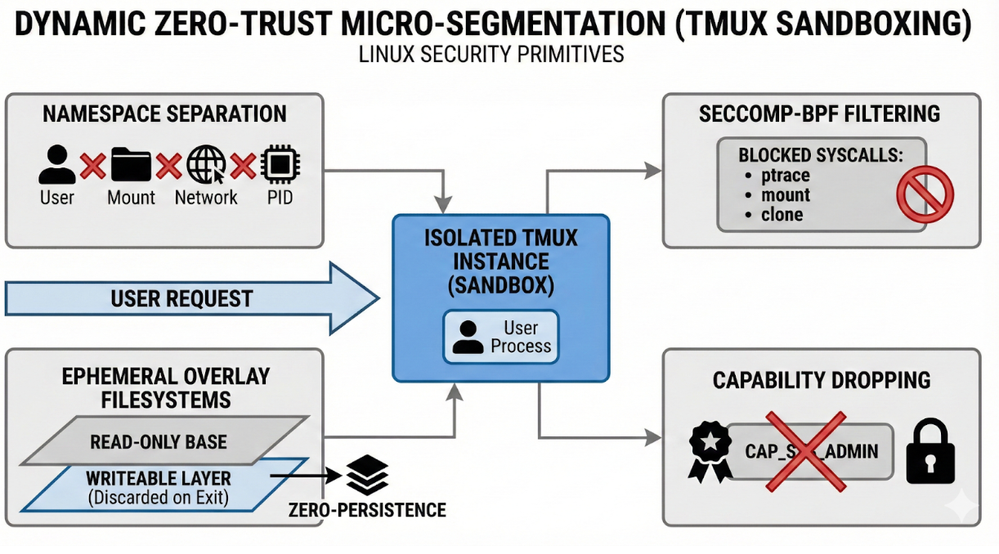

2. Dynamic Zero-Trust Micro-Segmentation (TMUX Sandboxing)

Sandboxing provides the first and most critical line of containment. Every user request dynamically triggers the creation of a completely isolated TMUX instance. We achieve maximal separation utilizing core Linux security primitives:

• Namespace Separation: We use Linux Namespaces (user, mount, network, PID) to ensure processes are invisible and inaccessible across sessions.

• Seccomp-bpf Filtering: Dangerous system calls (like ptrace, mount, and clone) that could lead to container escapes or privilege abuse are blocked using granular Syscall Filtering.

• Ephemeral Overlay Filesystems: Each session uses a temporary union filesystem, ensuring that all changes are discarded upon session termination. This guarantees a zero-persistence attack surface and automatically contains threats.

• Capability Dropping: All unnecessary Linux capabilities (e.g., CAP_SYS_ADMIN) are removed to enforce the principle of least privilege inside the sandbox.

3. Semantic Configuration Firewall

Configuration files (e.g., .tmux.conf) are often overlooked, yet they are a serious attack vector in multi-user environments. Our system includes a Semantic Configuration Firewall to analyze and validate configurations before they are applied. This firewall employs:

• AST Parsing: Configuration files are parsed into an Abstract Syntax Tree (AST). This allows for semantic understanding of the configuration, identifying unsafe constructs structurally rather than relying on brittle methods like regular expressions.

• Isolated Simulation: Before configuration takes effect, it is applied to a sandboxed TMUX instance that mimics the production environment. This allows for preemptive risk assessment.

• Automatic Remediation: Unsafe configurations are automatically sanitized, rewritten, or blocked entirely, transforming the configuration surface from a risk point into a tightly controlled pathway.

Conclusion

The innovation outlined in this work establishes a new foundation for identity-centric security in terminal multiplexing environments. Looking forward, several promising avenues exist to further enhance the security, adaptability, and intelligence of such systems, especially in the context of zero-trust architectures and dynamic access governance.

JITA team at Palo Alto Networks:

• Milen John Thomas
• Soumya Tarafder
• Peter Kirubakaran N
• Sughosh Divanji

Thanks for reading!
