XDR Best Practices: 5 Tips For Better XQL Queries

cancel
Showing results for
Show  only  | Search instead for
Did you mean:
Announcements
L1 Bithead
No ratings




The Cortex Query Language (XQL) is an advanced query language, built on top of BigQuery (GoogleSQL), that enables you to query data ingested into Cortex XDR and XSIAM for rigorous endpoint and network event analysis. By leveraging the full potential of XQL, you can enhance threat hunting, investigation, and other critical security operations. In this blog post, we will provide some key tips and best practices for utilizing XQL more effectively, optimizing query performance, and leveraging its powerful features to streamline your data analysis workflows.



1. Utilize Query Templates and Translations
If you're new to XQL, leverage the query templates for a more hands-on approach. This tool guides you through the query creation process, though it may be slower due to searching through a broader range of data. Additionally, consider using the XQL function that translates Splunk queries, enabling easy migration and adoption of existing queries. Cortex XDR includes a toggle called Translate to XQL in the XQL Search module. When this option is selected, both a SPL query field and XQL query field are displayed, so you can easily add a Splunk query, which is converted to XQL in the XQL query field.



2. Format Your Stages
Unlike common SQL, XQL is written as a flowing process of stages, where each step is separated by a pipe (|). Use this to your advantage and write your query so that each stage takes place on a separate line. This will make it easier to read, which will in turn help you identify stages that you may want or need to change later on.



3. Be Granular With Your Queries
To create queries that are more efficient, you want to ensure they are formatted in a way that will make the system run more effectively, delivering results faster and not cause any delays. Therefore, it's a great practice to limit the amount of data being pulled from the previous stages of your XQL queries. You can do this by utilizing the "fields'' stage at early points in your query to drop unnecessary columns that will only weigh your query down. Additionally, minimize your usage of the resource heavy function dedup or joining datasets that haven't been pared down. Being as granular as possible eliminates the risk of slowing processing speed and acquiring extraneous information that now has to be manually sifted through.



4. Avoid Repetitive Logical Operators
There are times when you may have a list of values that you need to search for or exclude. Rather than a filter stage filled with logical operators like OR and AND, which will make your query clunky, utilize the powerful arraycreate function to create an array of your values. You can then use other functions like arrayfilter and arraylength to iterate through your array and include or exclude results that match your values. This will improve the efficiency of your queries and ensure you’re getting the correct results.


5. Check the Intensity of Your Queries

If any of your queries appear to be running slower than normal, you can head over to the query center and view the simulated compute units of your queries. This will help you understand the complexity of the query, which will affect data usage and resulting speeds. If you find a query is relatively high on compute units and running slow, you may need to simplify it to help it run efficiently and not cause any delays.


If you want more tips and tutorials on how to use XQL, we recommend checking out our Cortex XDR Basic XQL Crash Course. For more advanced XQL users looking to expand their expertise, we recommend viewing our Cortex XDR XQL Use Cases and Applications Crash Course.



Have questions about XQL? Leave a comment or post it on our Discussions forum.



Rate this article:
Comments
Community Team Member

Thanks for sharing!

L1 Bithead

Thanks for great article

I have question about using Windows variables like %userprofile% or %program files%. How can we use this variables on our XQL querys?



L1 Bithead

Hi all,

Regarding point 4, could someone give an example of the usage of arraycreate + arrayfilter on e.g. action_process_image_command_line ?

For example you want to match any commandline that contains 'xarg' or 'yarg':
...
| alter args = arraycreate("xarg", "yarg")
| alter final_result = arrayfilter(args, action_process_image_command_line contains "@element")



But it does not seem to work quite right.


Similar to this Advanced Example on arrayfilter:
https://docs-cortex.paloaltonetworks.com/r/Cortex-XDR/Cortex-XDR-XQL-Language-Reference/arrayfilter



Thanks

L3 Networker

Hi Ahmad_akbarov,



The use of environmental variables is not supported in XQL queries when using file paths.



You may use wildcards in use cases where there are unknowns, but for the query to run efficiently and quickly it is important to be as granular as possible.



Thank you

L3 Networker

Hi Ithermos,

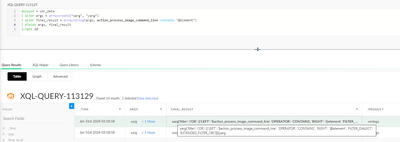

There is an example of the arraycreate() function which returns an array based on the given parameters defined for the array elements



Arrays can be of integer type, Enum type or character type, etc.

Note the data is enclosed in square brackets, structured like an array. . .

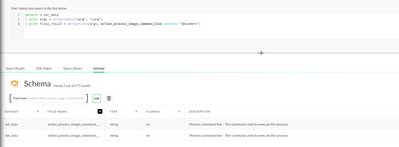

The arrayfilter function is looking for an array and the field action_process_image_command_line is not an array and will return a string value. Reference Introduction • Cortex XQL Schema Reference Guide • Reader • Palo Alto Networks documentation portal






Perhaps try the arraystring function which returns a string from an array where each array element is joined by a defined delimiter.




If you require more help with your query, you may reach out to your Account Team for assistance.



Thank you

Cortex XDR



L1 Bithead

Thank you for the response,


I think this is more clunky possibly, instead of the normal route with logical operators. In any case, it might come in handy, so thanks again.
