Expedition csv logs stuck in pending

L1 Bithead

Hi everyone,

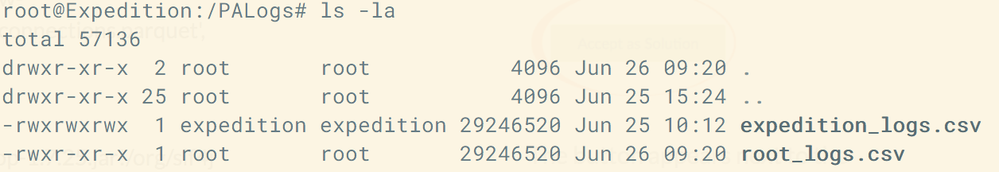

I have added firewall logs from our Palo Alto 5000 series to the Expedition VM /PALogs . I have copied the orginal .csv as a duplicate with root as the owner and the original with expedition as the owner. Both files appear in Devices > M.LEARNING. When I run Process Files the job remains in pending and nothing happens. Any ideas what the issue may be?

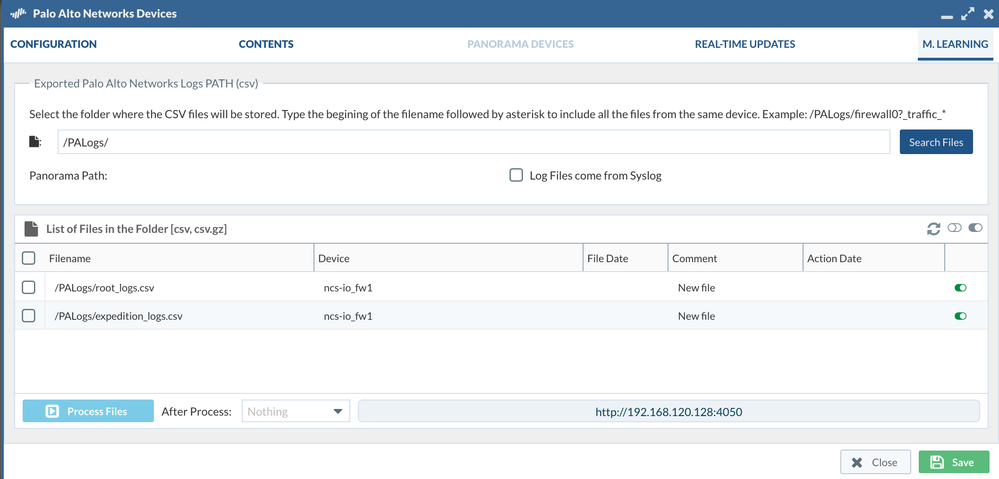

Screen Shot 2018-06-26 at 10.35.44 AM.png
Screen Shot 2018-06-26 at 10.37.27 AM.pngScreen Shot 2018-06-26 at 10.36.50 AM.png

51 REPLIES 51

Nope, i still have enough diskspace. Tried using the manual way and also directly from the devices but then it still showing the same things.

unfortunately, i've had this issue as well, and I had to revert to a snapshot....but after reverting and running through a few upgrades I have had that issue again.

Could you contact us at fwmigrate@paloaltonetworks.com to do a remote session?

L1 Bithead

Hi,



Did anyone find a workaround for this? We have the same issue also with the version 1.1.28



Thanks,

I've only run into this if I've filled my disk with logs....

Hi Sec101,



All checks are green and disk space is only 30% used... I checked the permissions to access the folder and i'm able to access it( expedition and www-data)... So i'm little bit lost as there is no much info in the errorlogs...



Any idea?

Did you manage to resolve the issue?



If you have a CSV process hung, try to clear all the tasks via the Dashboard "Remove All" button to see if this enables the processing again.

Also, try to share with us any error shown in the /tmp/error_LogCoCo, as it may have helpful information.

Also, update expedition to 1.1.30-h2, as in 1.1.30 we updated the scheduled processing of CSV logs to provide more infromation when failing (which it is reported in /home/userSpace/panReadOrders.log)

Hey,



Still having the issue after updating to 1.1.30-h2 and removed all the pending tasks. All i can see in the error_logCoCo is the list of the

csv files

(/opt/Spark/spark/bin/spark-submit --class com.paloaltonetworks.tbd.LogCollectorCompacter --master localhost --deploy-mode client --driver-memory 3146m --supervise /var/www/html/OS/spark/packages/LogCoCo-2.1.1.0-SNAPSHOT.jar MLServer='X.X.X.X', master='local[1]', debug='false', taskID='106', user='admin', dbUser='root', dbPass='*******', dbServer='X.X.X.X:3306', timeZone='Europe/Helsinki', mode='Expedition', input=0018010******:8.1.0:/home/expedition/ML/PA-3020-LAB_traffic_2019_07_15_last_calendar_day.csv:2,0018010******:8.1.0:/home/expedition/ML/PA-3020-LAB_traffic_2019_07_19_last_calendar_day.csv:10,0018010******:8.1.0:/home/expedition/ML/PA-3020-LAB_traffic_2019_07_24_last_calendar_day.csv:4,0018010******:8.1.0:/home/expedition/ML/PA-3020-LAB_traffic_2019_07_21_last_calendar_day.csv:2,0018010******:8.1.0:/home/expedition/ML/PA-3020-LAB_traffic_2019_07_18_last_calendar_day.csv:4,0018010******:8.1.0:/home/expedition/ML/PA-3020-LAB_traffic_2019_07_22_last_calendar_day.csv:1,0018010******:8.1.0:/home/expedition/ML/PA-3020-LAB_traffic_2019_07_20_last_calendar_day.csv:4,0018010******:8.1.0:/home/expedition/ML/PA-3020-LAB_traffic_2019_07_23_last_calendar_day.csv:1,0018010******:8.1.0:/home/expedition/ML/PA-3020-LAB_traffic_2019_07_16_last_calendar_day.csv:4,0018010******:8.1.0:/home/expedition/ML/PA-3020-LAB_traffic_2019_07_14_last_calendar_day.csv:3,0018010******:8.1.0:/home/expedition/ML/PA-3020-LAB_traffic_2019_07_17_last_calendar_day.csv:3,0018010******:8.1.0:/home/expedition/ML/PA-3020-LAB_traffic_2019_07_12_last_calendar_day.csv:2,0018010******:8.1.0:/home/expedition/ML/PA-3020-LAB_traffic_2019_07_13_last_calendar_day.csv:3, output='/home/expedition/ML/connections.parquet', tempFolder='/datastore'; echo /home/expedition/ML/PA-3020-LAB_traffic_2019_07_15_last_calendar_day.csv; echo /home/expedition/ML/PA-3020-LAB_traffic_2019_07_19_last_calendar_day.csv; echo /home/expedition/ML/PA-3020-LAB_traffic_2019_07_24_last_calendar_day.csv; echo /home/expedition/ML/PA-3020-LAB_traffic_2019_07_21_last_calendar_day.csv; echo /home/expedition/ML/PA-3020-LAB_traffic_2019_07_18_last_calendar_day.csv; echo /home/expedition/ML/PA-3020-LAB_traffic_2019_07_22_last_calendar_day.csv; echo /home/expedition/ML/PA-3020-LAB_traffic_2019_07_20_last_calendar_day.csv; echo /home/expedition/ML/PA-3020-LAB_traffic_2019_07_23_last_calendar_day.csv; echo /home/expedition/ML/PA-3020-LAB_traffic_2019_07_16_last_calendar_day.csv; echo /home/expedition/ML/PA-3020-LAB_traffic_2019_07_14_last_calendar_day.csv; echo /home/expedition/ML/PA-3020-LAB_traffic_2019_07_17_last_calendar_day.csv; echo /home/expedition/ML/PA-3020-LAB_traffic_2019_07_12_last_calendar_day.csv; echo /home/expedition/ML/PA-3020-LAB_traffic_2019_07_13_last_calendar_day.csv; )>> "/tmp/error_logCoCo" 2>>/tmp/error_logCoCo &
---- CREATING SPARK Session:
warehouseLocation:/datastore/spark-warehouse
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/Spark/extraLibraries/slf4j-nop-1.7.25.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/Spark/spark-2.1.1-bin-hadoop2.7/jars/slf4j-log4j12-1.7.16.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.helpers.NOPLoggerFactory]
Exception in thread "main" java.lang.ExceptionInInitializerError
at org.apache.spark.SparkContext.<init>(SparkContext.scala:397)
at org.apache.spark.SparkContext$.getOrCreate(SparkContext.scala:2320)
at org.apache.spark.sql.SparkSession$Builder$$anonfun$6.apply(SparkSession.scala:868)
at org.apache.spark.sql.SparkSession$Builder$$anonfun$6.apply(SparkSession.scala:860)
at scala.Option.getOrElse(Option.scala:121)
at org.apache.spark.sql.SparkSession$Builder.getOrCreate(SparkSession.scala:860)
at com.paloaltonetworks.tbd.LogCollectorCompacter$.main(LogCollectorCompacter.scala:262)
at com.paloaltonetworks.tbd.LogCollectorCompacter.main(LogCollectorCompacter.scala)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.apache.spark.deploy.SparkSubmit$.org$apache$spark$deploy$SparkSubmit$$runMain(SparkSubmit.scala:743)
at org.apache.spark.deploy.SparkSubmit$.doRunMain$1(SparkSubmit.scala:187)
at org.apache.spark.deploy.SparkSubmit$.submit(SparkSubmit.scala:212)
at org.apache.spark.deploy.SparkSubmit$.main(SparkSubmit.scala:126)
at org.apache.spark.deploy.SparkSubmit.main(SparkSubmit.scala)
Caused by: java.net.UnknownHostException: spanmig: spanmig: Temporary failure in name resolution
at java.net.InetAddress.getLocalHost(InetAddress.java:1506)
at org.apache.spark.util.Utils$.findLocalInetAddress(Utils.scala:870)
at org.apache.spark.util.Utils$.org$apache$spark$util$Utils$$localIpAddress$lzycompute(Utils.scala:863)
at org.apache.spark.util.Utils$.org$apache$spark$util$Utils$$localIpAddress(Utils.scala:863)
at org.apache.spark.util.Utils$$anonfun$localHostName$1.apply(Utils.scala:920)
at org.apache.spark.util.Utils$$anonfun$localHostName$1.apply(Utils.scala:920)
at scala.Option.getOrElse(Option.scala:121)
at org.apache.spark.util.Utils$.localHostName(Utils.scala:920)
at org.apache.spark.internal.config.package$.<init>(package.scala:189)
at org.apache.spark.internal.config.package$.<clinit>(package.scala)
... 17 more
Caused by: java.net.UnknownHostException: spanmig: Temporary failure in name resolution
at java.net.Inet6AddressImpl.lookupAllHostAddr(Native Method)
at java.net.InetAddress$2.lookupAllHostAddr(InetAddress.java:929)
at java.net.InetAddress.getAddressesFromNameService(InetAddress.java:1324)
at java.net.InetAddress.getLocalHost(InetAddress.java:1501)
... 26 more
/home/expedition/ML/PA-3020-LAB_traffic_2019_07_15_last_calendar_day.csv
/home/expedition/ML/PA-3020-LAB_traffic_2019_07_19_last_calendar_day.csv
/home/expedition/ML/PA-3020-LAB_traffic_2019_07_24_last_calendar_day.csv
/home/expedition/ML/PA-3020-LAB_traffic_2019_07_21_last_calendar_day.csv
/home/expedition/ML/PA-3020-LAB_traffic_2019_07_18_last_calendar_day.csv
/home/expedition/ML/PA-3020-LAB_traffic_2019_07_22_last_calendar_day.csv
/home/expedition/ML/PA-3020-LAB_traffic_2019_07_20_last_calendar_day.csv
/home/expedition/ML/PA-3020-LAB_traffic_2019_07_23_last_calendar_day.csv
/home/expedition/ML/PA-3020-LAB_traffic_2019_07_16_last_calendar_day.csv
/home/expedition/ML/PA-3020-LAB_traffic_2019_07_14_last_calendar_day.csv
/home/expedition/ML/PA-3020-LAB_traffic_2019_07_17_last_calendar_day.csv
/home/expedition/ML/PA-3020-LAB_traffic_2019_07_12_last_calendar_day.csv
/home/expedition/ML/PA-3020-LAB_traffic_2019_07_13_last_calendar_day.csv





For the /home/userSpace/panReadOrders.log i have the following logs:

------------------------------------------------------------
Wed Jul 24 15:13:34 EST 2019 : Starting readOrders.php
------------------------------------------------------------
------------------------------------------------------------
Wed Jul 24 15:15:41 EST 2019 : Starting readOrders.php
------------------------------------------------------------
Checking: PeriodicLogCollectorCompacter
Thu, 25 Jul 2019 01:00:50 -0400 Start Task
Thu, 25 Jul 2019 01:00:50 -0400 End Task



Thanks,

The log specifies that it cannot resolve the server's name:

java.net.UnknownHostException: spanmig: Temporary failure in name resolution



In your log, it shows X.X.X.X as an IP. I guess you modified it in the log so we do not get to see this information. Anyway, verify that the settings that you have in the ML section are valid, and even so, reenter them and save to make sure that other settings are spread.

Thanks @dgildelaig !



After reconfiguring the hostname and the nameserver in /etc/resolv.conf i was able to resolve my issue.



Thanks for your help!

spent a long time in "No supported files to process" until I read this post. I added Panorama as a device and retrieved all the managed devivces and even though the tool recognises the log format and the source shows the name of the firewalll I want, I had to delete the panorama entry and add the firewall instead under devices->imported devices. Shame it doesnt just work the other way around.

You should still be able to process the logs from within the devices that were connected in a Panorama.

I will take a note so we disable the button within the Panorama and notify in how to process the logs.

Having the same problem and cannot figure why Expedition will not process the CSV files.  www-data is in the expedition group and has the permission to access the CSV files.  Please help!








ubuntu@ip-10-170-1-35:/$ tail -f /tmp/error_logCoCo
at org.apache.spark.util.Utils$.localCanonicalHostName(Utils.scala:996)
at org.apache.spark.internal.config.package$.<init>(package.scala:302)
at org.apache.spark.internal.config.package$.<clinit>(package.scala)
... 17 more
Caused by: java.net.UnknownHostException: ip-10-170-1-35: Name or service not known
at java.net.Inet6AddressImpl.lookupAllHostAddr(Native Method)
at java.net.InetAddress$2.lookupAllHostAddr(InetAddress.java:929)
at java.net.InetAddress.getAddressesFromNameService(InetAddress.java:1324)
at java.net.InetAddress.getLocalHost(InetAddress.java:1501)
... 26 more

I have the feeling that in your case, the issue is related to the name resolution of your Expedition instance.

Check that the /etc/hostname is valid; and also check, via your Expedition web browser, that the ML Settings are correct pointing to your Expedition ip address.

/etc/hostname shows ip-10-170-1-35

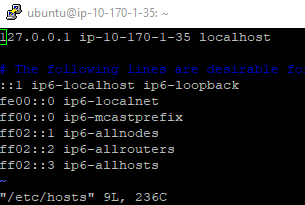

etc/hosts - changed from "127.0.0.1 localhost" to :127.0.0.1 ip-10-170-1-35 localhost"






Now I get a weird message stating http://10.170.1.135:4050




Then the process fails again.

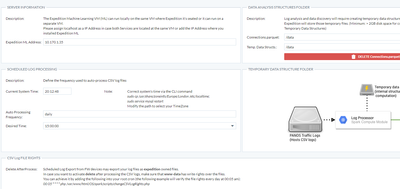

My ML settings seem to look fine.


Any idea what else is causing this?
