Custom created Anti-Spyware profiles not opening, showing “The server is not responding. Please wait and try your operation again later”.

L1 Bithead

Hello all

Model: PA-3220

Firmware version: 10.1.16

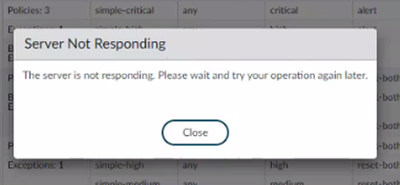

  • I am not able to open some custom-created Anti-Spyware profiles after moving to 10.1.15-h2 from 10.0.X  then upgraded to 10.1.16 (being a preferred version ). showing the below error.
  • Zeeshan_Shaheen_1-1655878999153.png
  • - default & Strict are there by predefined and are opening perfecty without any issue.
  • Created a test policy I am able to open that also.
  • Every service had been restarted as the firewall was upgraded.
  • Firewall in HA and the passive one shows the same error while checking the same spyware profiles.
  • Tried to clone the affected policy and faced the same error.
  • Checked the resource usage by show system resources follow and checked that there is no significant spike in the any parameter , more precisely %wa

Do we have any known Bug related to the same?



#paloalto #PA-3220

1 ACCEPTED SOLUTION

Accepted Solutions

Resolved the issue by fixing the connectivity to  https://data.threatvault.paloaltonetworks.com:443/search_by_id  by allowing the same in security policy.

The issue was due to curl error: 35 when i clicked on the spyware profile, the firewall was trying to fetch the threat signature in background which was present in botnet exceptions, but due to connection error , it was getting timeout after particular period of time, there was a service route present for paloalto network services therefore i added *.paloaltonetworks.com in the security olicy and allowed it. and it worked fine.

It is not cool to throw an error that device is not responding.

View solution in original post

2 REPLIES 2

L1 Bithead

I am able to figure out that this is due to threat-Id fetch from threat vault, that is not happening.

From show_log_system.txt

2022/06/21 12:01:16 medium general general 0 Could not access threat vault

Later fixed the connectivity because of service route being used

Then from wf_curl.log

2.786 +0300 debug: main(pan_wf_curl.c:931): Device Cert Status node not found, not using device certificate for mTLS with AF2022-06-21 10:51:52.786 +0300 Max timeout: 4
2022-06-21 10:51:52.786 +0300 debug: curl_set_opts(pan_wf_curl.c:280): use_sdb = 0
2022-06-21 10:51:52.805 +0300 debug: main(pan_wf_curl.c:697): full addr: https://data.threatvault.paloaltonetworks.com:443/search_by_id
2022-06-21 10:51:52.806 +0300 debug: main(pan_wf_curl.c:731): dest_addr: data.threatvault.paloaltonetworks.com
2022-06-21 10:51:53.055 +0300 debug: pan_ssl_cloud_ssl_cb(pan_ssl_curl_utils.c:707): set ssl parameters into curl ssl cb
2022-06-21 10:51:53.055 +0300 debug: pan_cryptod_sysd_access_key(pan_cryptod_sysd_api.c:1028): Sending GET: id:client-ssl-cert, flag:4 to cryptod
2022-06-21 10:51:53.056 +0300 debug: pan_cryptod_sysd_access_key(pan_cryptod_sysd_api.c:1037): Send GET msg to cryptod for id:client-ssl-cert successful
2022-06-21 10:51:53.056 +0300 debug: pan_cryptod_sysd_access_key(pan_cryptod_sysd_api.c:1057): Received (for id:client-ssl-cert), key data (len=1849):
2022-06-21 10:51:53.056 +0300 debug: pan_cryptod_dump_buf(pan_cryptod_sysd_api.c:749): [xxx] ...
2022-06-21 10:51:53.056 +0300 debug: pan_cryptod_sysd_access_key(pan_cryptod_sysd_api.c:1028): Sending GET: id:client-ssl-private-key, flag:4 to cryptod
2022-06-21 10:51:53.057 +0300 debug: pan_cryptod_sysd_access_key(pan_cryptod_sysd_api.c:1037): Send GET msg to cryptod for id:client-ssl-private-key successful
2022-06-21 10:51:53.057 +0300 debug: pan_cryptod_sysd_access_key(pan_cryptod_sysd_api.c:1057): Received (for id:client-ssl-private-key), key data (len=1857):
2022-06-21 10:51:53.057 +0300 debug: pan_cryptod_dump_buf(pan_cryptod_sysd_api.c:749): [xxx] ...
2022-06-21 10:51:53.313 +0300 debug: verify_cb(pan_ssl_curl_utils.c:660): Basic Validation of x509 cert is success
2022-06-21 10:51:53.313 +0300 debug: pan_wf_cert_verify(pan_ssl_curl_utils.c:584): pan_wf_cert_verify : cert is valid
2022-06-21 10:51:53.313 +0300 debug: verify_cb(pan_ssl_curl_utils.c:660): Basic Validation of x509 cert is success
2022-06-21 10:51:53.313 +0300 debug: pan_wf_cert_verify(pan_ssl_curl_utils.c:584): pan_wf_cert_verify : cert is valid
2022-06-21 10:51:53.313 +0300 debug: verify_cb(pan_ssl_curl_utils.c:660): Basic Validation of x509 cert is success
2022-06-21 10:51:53.313 +0300 debug: pan_wf_cert_verify(pan_ssl_curl_utils.c:584): pan_wf_cert_verify : cert is valid
2022-06-21 10:51:53.313 +0300 debug: verify_cb(pan_ssl_curl_utils.c:660): Basic Validation of x509 cert is success
2022-06-21 10:51:53.313 +0300 debug: pan_wf_cert_verify(pan_ssl_curl_utils.c:584): pan_wf_cert_verify : cert is valid
2022-06-21 10:51:53.319 +0300 Error: main(pan_wf_curl.c:957): curl error: 35
2022-06-21 10:51:53.319 +0300 sysd worker 0: shutting down
2022-06-21 10:51:53.319 +0300 sysd worker 1: shutting down
2022-06-21 10:51:53.320 +0300 sysd main thread: shutting down
2022-06-21 10:51:53.320 +0300 debug: destruct_ex_url_token_hash(pan_logdb_indexer_v2.c:6438): destruct_ex_url_token_hash
2022-06-21 11:00:27.411 +0300 sysd worker[0]: 7f5190286700: starting up...
2022-06-21 11:00:27.411 +0300 sysd worker[1]: 7f518fe85700: starting up...
2022-06-21 11:00:29.411 +0300 debug: sysd_queue_sched(sysd_queue.c:672): QUEUE: sysd queue schedule: no connection yet, ignore
2022-06-21 11:00:29.412 +0300 Sysd Event: SUCCESS
2022-06-21 11:00:29.412 +0300 connected to sysd



Resolved the issue by fixing the connectivity to  https://data.threatvault.paloaltonetworks.com:443/search_by_id  by allowing the same in security policy.

The issue was due to curl error: 35 when i clicked on the spyware profile, the firewall was trying to fetch the threat signature in background which was present in botnet exceptions, but due to connection error , it was getting timeout after particular period of time, there was a service route present for paloalto network services therefore i added *.paloaltonetworks.com in the security olicy and allowed it. and it worked fine.

It is not cool to throw an error that device is not responding.
