Hi All,

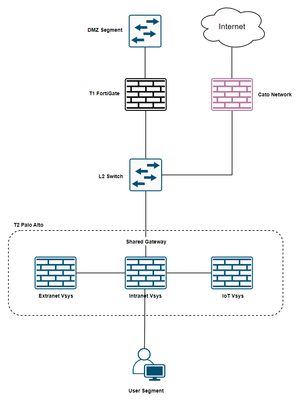

I need your help. Does anyone have experience configuring a PBF rule on a shared gateway? I’ve set it up as shown in the screenshot below. My Tier 2 firewall has 3 VSYS and 1 shared gateway, with the default route pointing to the Tier 1 Fortigate.
In the future, the customer plans to add Cato Network, and I will need to configure PBF on the Tier 2 firewall. If a user wants to access the DMZ segment, traffic will go through the T1 firewall. However, if the user wants to access the internet, traffic should pass through the Cato Network. Right now, I’m unsure how to configure PBF on the shared gateway and would really appreciate any guidance on this.
Thanks in advance!
