Ping Packets dropped: forwarded to different zone

L1 Bithead




1. All the units in above diagram are AWS EC2s. Pinging from Ubuntu10_20_61_16

    to Ubuntu10_60_0_100 failed due to echo reply dropped on PA-VM.



admin@PA-VM> show counter global filter packet-filter yes delta yes severity drop

Global counters:

Elapsed time since last sampling: 1.16  seconds

name                                   value     rate severity  category  aspect    description

--------------------------------------------------------------------------------

flow_fwd_zonechange    1      0 drop      flow      forward   Packets dropped: forwarded to different zone

--------------------------------------------------------------------------------

Total counters shown: 1



2. Following is the routing info.



admin@PA-VM> show routing route

flags: A:active, ?:loose, C:connect, H:host, S:static, ~:internal, R:rip, O:ospf, B:bgp,

       Oi:ospf intra-area, Oo:ospf inter-area, O1:ospf ext-type-1, O2:ospf ext-type-2, E:ecmp, M:multicast

VIRTUAL ROUTER: vr1 (id 1)

  ==========

destination                                 nexthop                                 metric flags      age   interface          next-AS

0.0.0.0/0                                   10.20.10.1                              10     A S              ethernet1/1

10.20.10.0/24                           10.20.10.50                             0      A C              ethernet1/1

10.20.10.50/32                         0.0.0.0                                     0      A H

10.20.61.0/24                          10.20.61.195                            0      A C              ethernet1/2

10.20.61.195/32                      0.0.0.0                                      0      A H

10.60.0.0/24                            0.0.0.0                                     10     A S              tunnel.1

total routes shown: 6

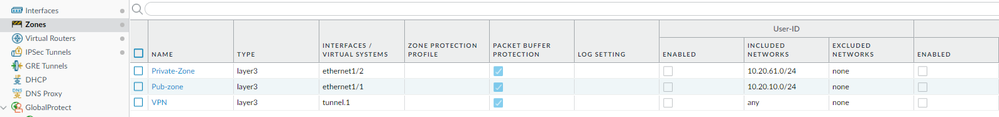

3. Following is the Zones info

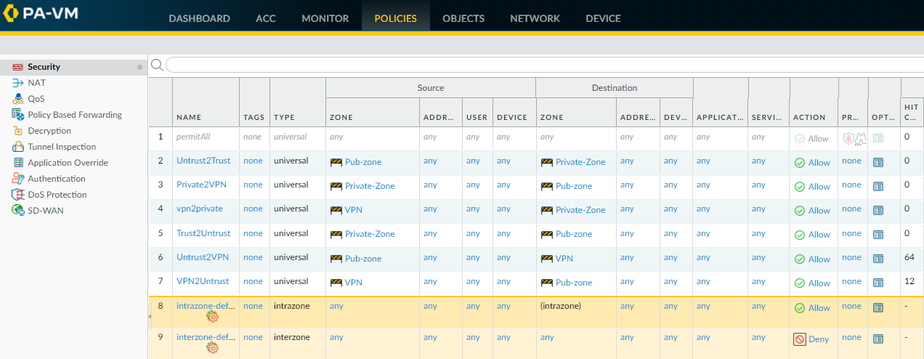

4. Following is the security policies info.

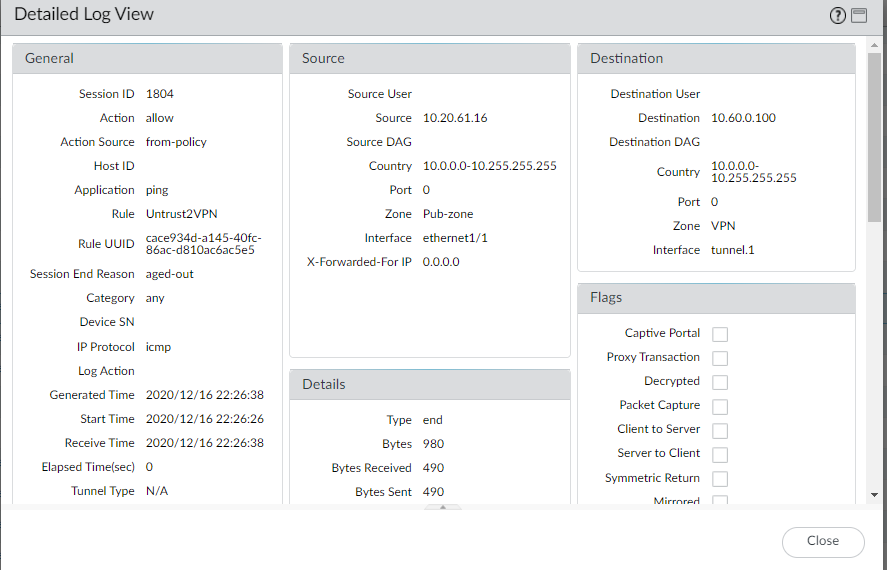

5. From the log below, we can see when ping from 10.20.61.16 to 10.60.0.100. it is from Pub-zone to VPN zone. ping packet goes from e1/2 to e1/1, then e1/1 goes to tunnel.1. But seems ping reply didn't take path, tunnel.1-->e1/1--->e1/2.




admin@PA-VM> test routing fib-lookup ip 10.20.61.16 virtual-router vr1

--------------------------------------------------------------------------------
runtime route lookup
--------------------------------------------------------------------------------
virtual-router: vr1
destination: 10.20.61.16
result:
interface ethernet1/2, source 10.20.61.195
--------------------------------------------------------------------------------

6. Guess ping reply didn't  go the right path. So got "Packets dropped: forwarded to different zone".

7. There is no NAT rules on PA-VM.

How to fix this issue? Thanks for sharing your thoughts!

1 REPLY 1

L1 Bithead

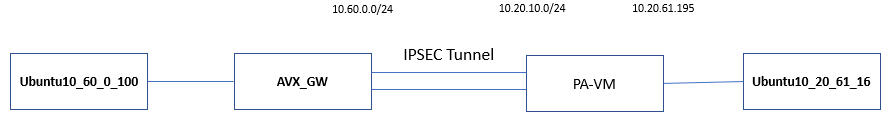

This the first topology previous post didn't show correctly.
