Special NAT configuration. Asking about possibility

I have a working Hub & Spoke VPN network. Computers in Spoke1 can reach the computers in Spoke2 and vice versa.

For some reason, a particular device in Spoke2 with IP 172.16.200.62 can only be reached by the computers in the same subnet.

I want to know is it possible to assign a 172.16.200.x IP address to the computers in Spoke1 when they attempt to connect to that special device. I'm not sure this will achieve my target or not, but at least I can learn a new NAT technique if such configuration does exist.

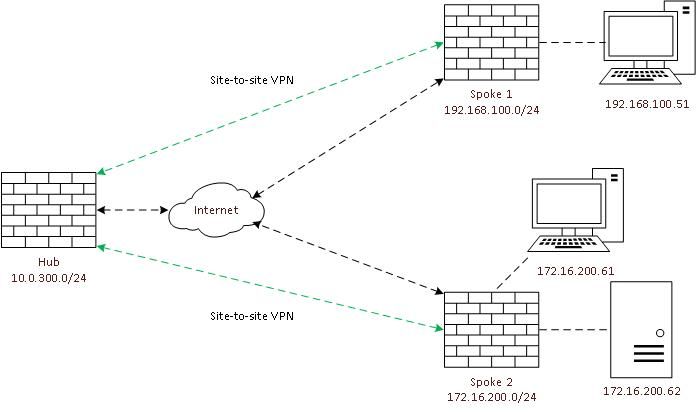

The 3 firewalls below are PA-820.





Accepted Solutions
Pawel_G
L1 Bithead

Hello,



Simple fix for this is by creating a NAT rule

Nat from Spoke1 to Spoke2 -

Source Zone - Tunnel Interface Spoke1

Source IP Address - 192.168.100.0/24

Destination Zone  - Tunnel Interface Spoke2

Destination Address - 172.16.200.0/24

Source Translation - Dynamic IP and Port

Translated IP - 172.16.200.100



I hope this will help





View solution in original post


All Replies
JoergSchuetter
L4 Transporter

Hello @jeremylo

Why don't you apply a source NAT on Spoke 2 (hiding all requests to 172.16.200.62 behind the firewall interface 172.16.200.x)?

Pawel_G
L1 Bithead

Hello,



Simple fix for this is by creating a NAT rule

Nat from Spoke1 to Spoke2 -

Source Zone - Tunnel Interface Spoke1

Source IP Address - 192.168.100.0/24

Destination Zone  - Tunnel Interface Spoke2

Destination Address - 172.16.200.0/24

Source Translation - Dynamic IP and Port

Translated IP - 172.16.200.100



I hope this will help





View solution in original post

jeremylo
L2 Linker

Bingo! It works!

Thanks Pawel.

jeremylo
L2 Linker

Hello Joerg,

This is a solution too. However, I also want to keep track of which computer in Spoke1 have connected to Spoke2.
