Radius Auth Profile with PEAP-MsCHAPv2

L1 Bithead

Has anyone successfully integrated Radius Auth profile PEAP-MsCHAPv2 with NPS or any other Radius platform?


I have configured my Radius Auth Profile and attached relevant Cert profile to it as per below knowledgebase article.


However we are unable to establish successful authentication attempt for global protect user on radius auth profile, If I changed the Radius auth type to PAP it works fine.

Below is the NPS setting used shared by team managing NPS






L2 Linker

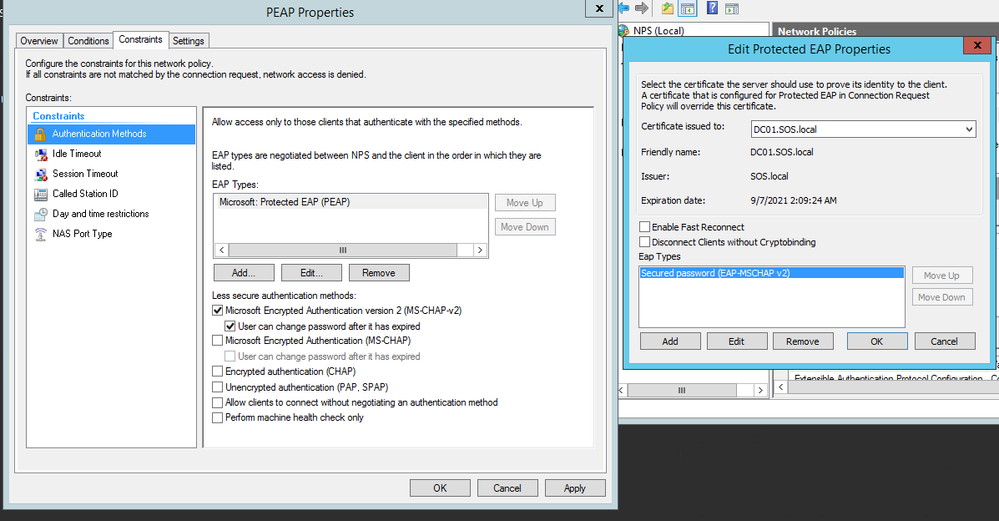

PEAP-MSCHAPv2 to work, a certificate will be required on the domain controller, which needs to be signed by an Internal PKI CA.


 As you can see above that my DC01 has a certificate issued by my Root CA SOS.local


On the firewall side, you should have the following configuration:


From the screenshot above, we can see the certificate profile applied "PEAP-Cert", which will have by signing CA and authentication protocol is selected as PEAP-MSCHAPv2

After the config above, you can create an authentication profile with the RADIUS profile above an apply it to your Portal or gateway or both.

Hope that helps!

Hi Sakhan,

Im looking at your first screenshot which shows PEAP Properties, you have chosen "Microsoft: Protected EAP (PEAP)" and I was curious to know why you've  also checked MSCHAPv2 under the less secure authentication methods. Is there a reason to that. In my setup I do not have anything checked under less secure authentication method and it works as intended.
