IPSEC VPN for the FW MGMT

[90435srinivasan]

Hi There,

I would like to establish an IPSEC VPN connection between the Palo Alto firewalls and the Fortigate. This setup is necessary to allow remote access to the Palo Alto firewalls from the Citrix servers. This is for Management connectivity.

The inquiry is, IPSEC VPNs are generally configured to facilitate the passage of data traffic

1. I want to access the PA FW MGMT IP over an IPSEC VPN. Is it doable?

2. Shall I create a Loopback interface and assign a Interface MGMT profile and with this design, I believe I can access only the 'Active' firewall and not the 'passive' one.

How to overcome this caveat?

Cheers,

[Raido_Rattameister]

You are correct on both points.

Yes you can set up IPSec to access mgmt interface. Assumingly you have mgmt interface connected to separate management vlan/zone so you need to set up security policy to permit traffic from VPN to Palo mgmt IPs.

And yes if you use loopback or dataplane interface then you can access only active firewall.

[90435srinivasan]

Hi @Raido_Rattameister

Many thanks for your reply.

If I talk about MGMT IPs, I believe you're referring about the Loopback/In-band Interface and not the MGMT port.

Can we access the PA FW over the MGMT port itself via IPSEC VPN?

[TomYoung]

Hi @90435srinivasan ,

Do you have a switch on site?  If so, connect the management interfaces to the switch and access them like you would any other.  You can access them over the VPN.  You would also be able to connect to the passive firewall.

Thanks,

Tom

[90435srinivasan]

Hi @TomYoung

Thanks for your reply. I'm referring about the Out of Band MGMT port.

As you know, since it's not part of any security zones, security policy won't be applicable. Is my assumption correct?

In that case, we'd need to use an In-band port (or loopback) and assign to a dedicated zone (MGMT-VPN) and allow security policy (MGMT-VPN to VPN).

I believe in this scenario, only the active firewall would be reachable as it holds the IP address.

Do correct me if I miss anything.

[Raido_Rattameister]

You can't route traffic directly from dataplane to management plane. There has to be switch in between.

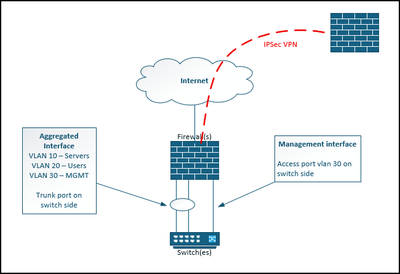

Below is example using random vlans and IPs.

And then firewall policy can be added to permit traffic from VPN zone to management zone towards Palo mgmt IPs.

[90435srinivasan]

Hi @Raido_Rattameister

Thanks for your reply and sorry if I sound so silly.

As far as I know, dedicated out of band management interface isn't part of any security zone.

Based on the above example, if the dedicated MGT port to be accessed via IPSEC VPN, can you pls let me know how the routing should be setup?

Again, to the best of my knowledge, MGMT interface doesn't use the VR as this is for data-interface.

Please correct me if I miss anything 😊
