ISP ping going out via different interface

L2 Linker

I am facing a very strange issue. Thee are four ISP connected to PA. All are VLAN interfaces.

While doing a ping to 8.8.8.8 or any public IP from the vlan interface IP it works fine except for one ISP.

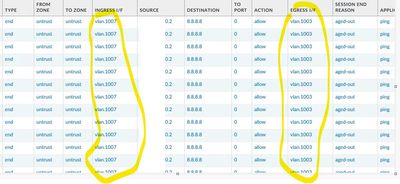

For one ISP if a ping a initiated from vlan.7 the traffic goes out via vlan.3. attached a screenshot.

Ping is initiated from PA cli - ping source <int ip> host 8.8.8.8


Any idea why ping is going via a different interface?


Please note you are posting a public message where community members and experts can provide assistance. Sharing private information such as serial numbers or company information is not recommended.
5 REPLIES 5

L4 Transporter

Hello @ceapen01



Hi, check if you have
ECMP that could be balancing the traffic.

Or check if you have any PBF policy that is forcing that traffic flow through that other interface.

Check that by any chance at virtualrouter level is not set an explicit route against that destination.

Another thing the PBF will not manipulate the traffic coming from the FW, that is to say in this case the IP source of vlan 7 that you mention, it will always use the route with the best metric (the one with the lowest metric).

Check if the same thing happens with an end equipment, an endpoint of vlan 7 and you will get better conclusions of the behavior.

Regards

High Sticker

Thank you

ECMP that could be balancing the traffic.

  >>I didn't understand this point

Or check if you have any PBF policy that is forcing that traffic flow through that other interface.
  >>No PBF

Check that by any chance at virtualrouter level is not set an explicit route against that destination.
  >>As there are four ISP, four default routes exist with different metric

Another thing the PBF will not manipulate the traffic coming from the FW, that is to say in this case the IP source of vlan 7 that you mention, it will always use the route with the best metric (the one with the lowest metric).

Check if the same thing happens with an end equipment, an endpoint of vlan 7 and you will get better conclusions of the behavior.
  >>endpoint of vlan 7 gets internet and ping. No issues.

L7 Applicator

As already mentioned PBF will not be applied to traffic sourcing from firewall itself.



If you ping from public IP to next hop then you can expect traffic to go out from same interface (because it stays inside same subnet).

If you ping from public IP to IP on the internet then you must have static route configured towards that public IP.

Otherwise Palo will look at static routes.

If multiple 0.0.0.0/0 routes have same metric (ECMP is enabled) then source interface is chosen based on ECMP settings.



So Palo will not care that you ping from specific vlan IP. Path is chosen based on virtual router configuration.

Enterprise Architect, Security @ Cloud Carib Ltd
ACE, PCNSE, PCNSI

there are different static routes to 0.0.0.0 with different metrics. I can see ping to 8.8.8.8 from vlan 7 is now taking the interface with lowest metric (vlan3).

Is there any method such that ping to 8.8.8.8 from vlan 7 interface wd only egress through vlan 7 only.



**furthermore i can this is only happening with vlan 7. If ping from vlan 4 or 5, traffic egress via that interface only.
