Managing Prisma Cloud APIs With Postman

RPrasadi · ‎02-10-2025

By Tunde Adenugba, Customer Success Engineer

Summary

This article will cover any gaps in regards to utilizing Postman for managing Prisma Cloud APIs.

This would cover the various use cases including Cloud Security for CSPM, Runtime Security for CWP, Application Security for CAS, and Data Security to cover the DSPM part of Prisma Cloud.

Key Objectives

Address how one can use the Prisma Cloud APIs with Postman to manage the various parts of Prisma Cloud.

Cloud Security
Runtime Security
Application Security
Data Security

Introduction

What is Postman?

Postman is the collaboration platform for API development. Postman simplifies each step of building an API and streamlines collaboration so you can create better APIs faster, you can download the postman community edition here.

Why use Postman?

Postman is an API client that makes it easy for developers to create, share, test, and document APIs. This is done by allowing users to create and save simple and complex HTTP/s requests and read their responses. The result - More efficient and less tedious work.

Why use Prisma Cloud API?

Prisma Cloud Cloud Security, Runtime Security, Application Security, and Data Security Posture management all have documented and Supported API endpoints that allow customers to easily use them in getting useful information as required. This can be added as part of a process or pipeline for effective operationalization of the product. It could also be used in gathering information that can be displayed in various dashboards that different teams can consume.

How do I use the Prisma Cloud Postman collection?

Download the Prisma Cloud.postman_collection-012025.json file attached at the bottom of this post^[a]

Import the postman collection pack

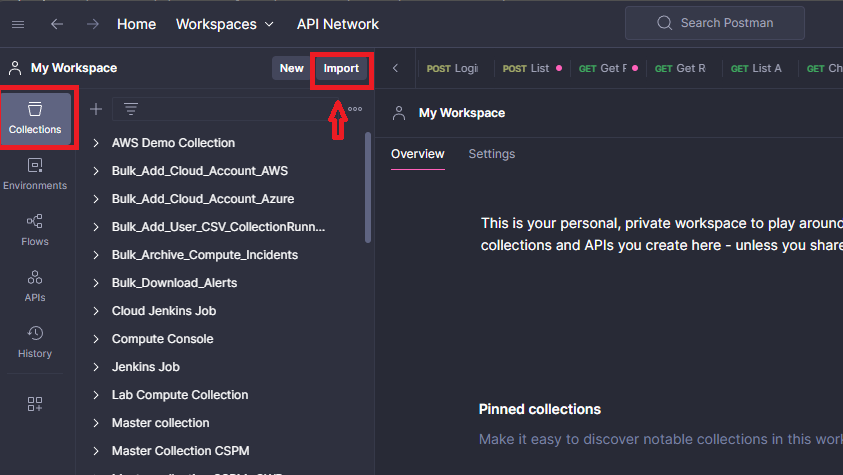

Figure 1: Postman-Collection-import_PaloAltoNetworks

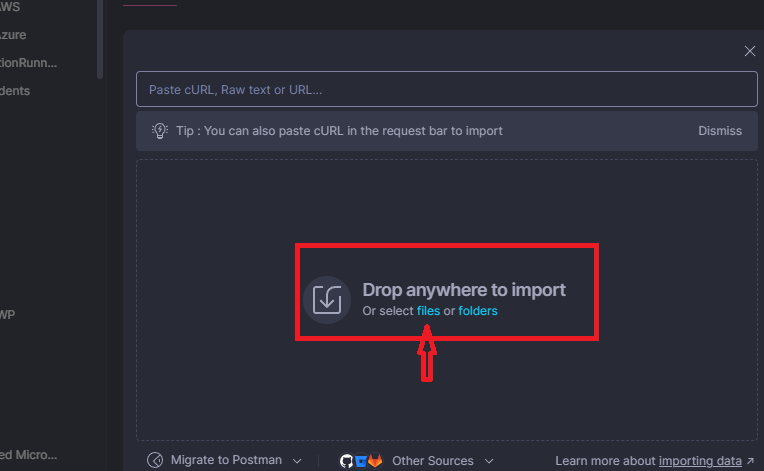

Figure 2: Postman-Collection-dropfile-import_PaloAltoNetworks

Environmental Variables in Postman?

Create your environmental Variable or edit, if importing as part of collections.

Figure 3: Postman-Environmental-Variables_PaloAltoNetworks

NOTE: Do not set the Token yet as we would use a script to auto-populate it, after we use the API endpoint to pull it in the next steps:

The collection when imported should pull a number of these variables, so you may need to only update in step 6. Otherwise, you may have to enter this in manually completing steps 1 to 6.

API Endpoint : Prisma Cloud Login

Request Type: POST https://api.prismacloud.io/login

Request body example:

{

"username": "{{ACCESS_KEY}}",

"password": "{{SECRET_KEY}}"

}

Header

Here is the API Header for Prisma Cloud (Note: this is different for a CWP endpoint). Here is what it looks like in postman:

Figure 4: Postman-Prisma-Cloud-Login-API_PaloAltoNetworks

{{api-endpoint}} variable will vary depending on the stack you want and hence what you specify in the environmental variable. For example: api2.prismacloud.io represents api2.io stack and api2.eu.prismacloud.io will represent app2.eu stack.

Postman script to pull the token from the above Login response into the Environmental variable that can be re-used before expiration.

var jsonData = JSON.parse(responseBody);

postman.setEnvironmentVariable("token", jsonData.token);

This is defined under Request Scripts in Postman for the above mentioned API Login request with Prisma Cloud Access Key and Secret specified as Request Body. See what it looks like below:

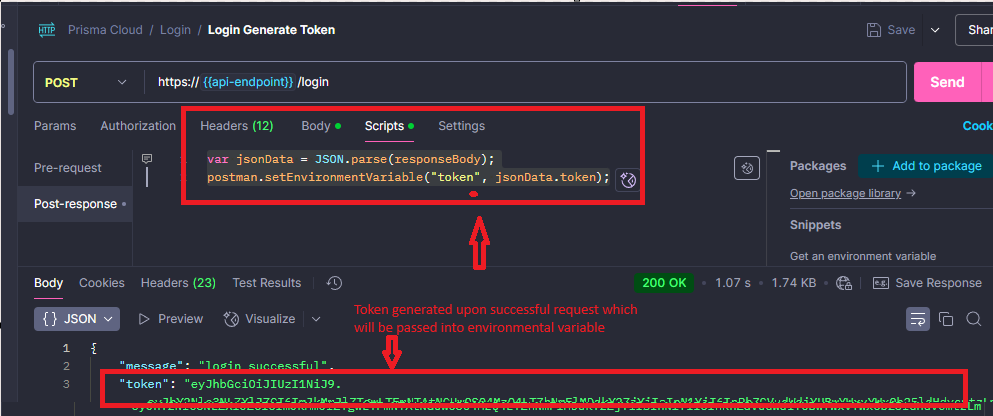

Figure 5: Postman-Collection-import_PaloAltoNetworks

Making yourPrisma Cloud Postman API Request?

Follow the below steps if you are looking to make an API Call using postman to Prisma Cloud:

Step 1: Identify what platform (CSPM, CWP, CAS, DSPM) and endpoint you are looking to make a request to. In the Prisma Cloud API documentation, they are defined into the following:

Cloud Security, Runtime Security, Application Security, and Data Security Posture Management respectively (See also image in step 2 below).

Step 2: Identify in the exported collection (if it already exists) the API endpoint you need to call and use it. You may need to update with relevant additional information.

In the below example, a CAS Get Asset request was identified to get data assets from Prisma Cloud. It's important to be mindful of the Required parameters that would need to be passed into the body of the Get Request. It is worth knowing also that there are optional parameters that may be helpful for different use cases.

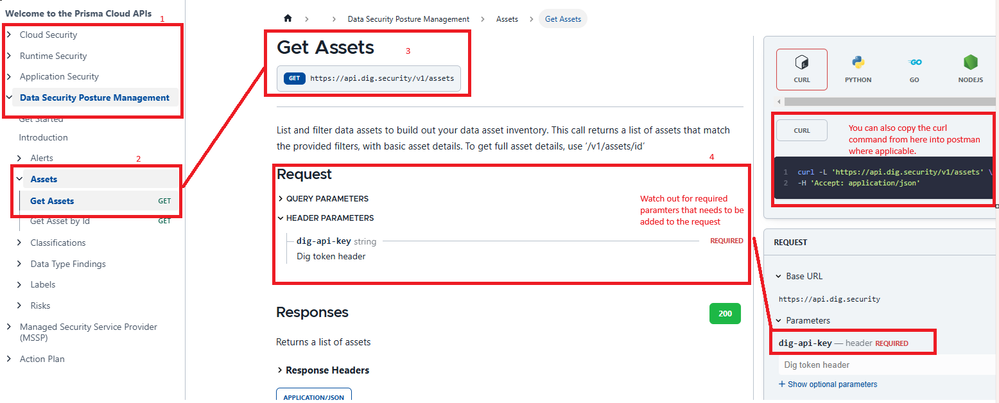

Figure 6: Prisma-Cloud-API-Doc_PaloAltoNetworks

Step 3: Identify the base API URL, your tenant should point to depending on the Prisma Cloud Stack your tenant is hosted on. Once identified, you could pass this into your environmental variable and replace the base URL as seen in below request:

Figure 7: Using-Prisma-Variables-in-Postman_PaloAltoNetworks

Step 4: Where the desired request does not exist in your collection and you have the Curl command, you can use the same above-mentioned import button to import the request into the the Postman Tool.

Figure 8: Using-cURL-inPostman_PaloAltoNetworks

Step 5: Ensure that your Environmental Variables are linked to your relevant Collection Request.

As seen in the screenshot below, the Get Request for the List User Role API endpoint is using the Prisma Cloud Environmental Variables updated earlier.

Figure 9: Checking-Prisma-Variables-in-Postmant_PaloAltoNetworks

Step 6: Using developer tools when required. Where you have a use case and the endpoint is not documented or part of the imported Prisma Cloud Collection. You may be able to get the endpoint using Developer tolls from your browser. To do this, follow the steps below:

Log into Prisma Cloud and locate the endpoint you are looking for. In this use case, the list of Account Groups under Settings / Resource Lists.
Right click on the page to inspect, then select Network from the Sidebar.

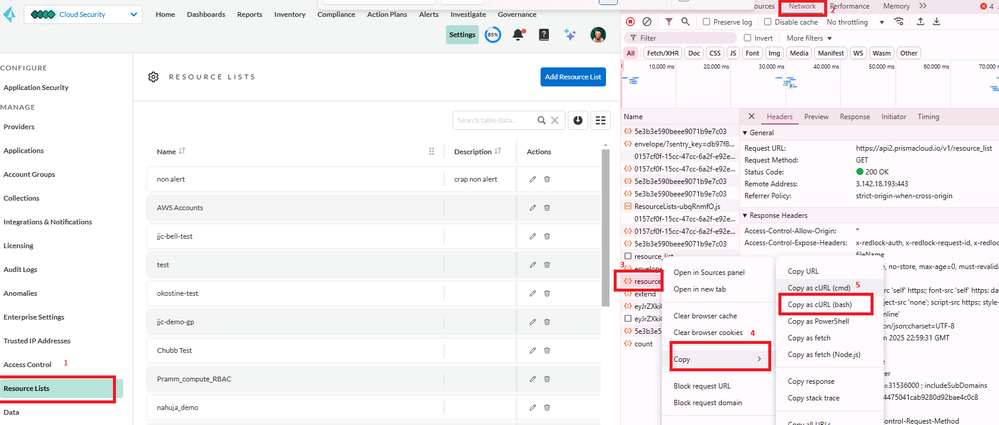

Figure 10: Getting-cURL-in-Prisma-Cloud-Using-Dev-Tools_PaloAltoNetworks

Identify the Named API - Resource, then right click and select Copy > Copy as cURL (BASH)
Import into Postman Collection by clicking on the Import, paste the copied cURL
Set your desired collection and click on import into collection; if you want to save, otherwise import without saving.

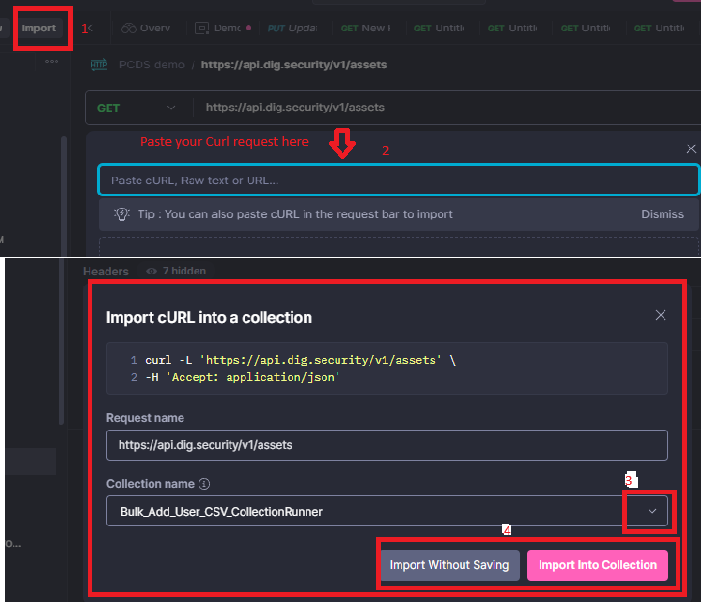

Figure 11: cURL-import-to-Postman_PaloAltoNetworks

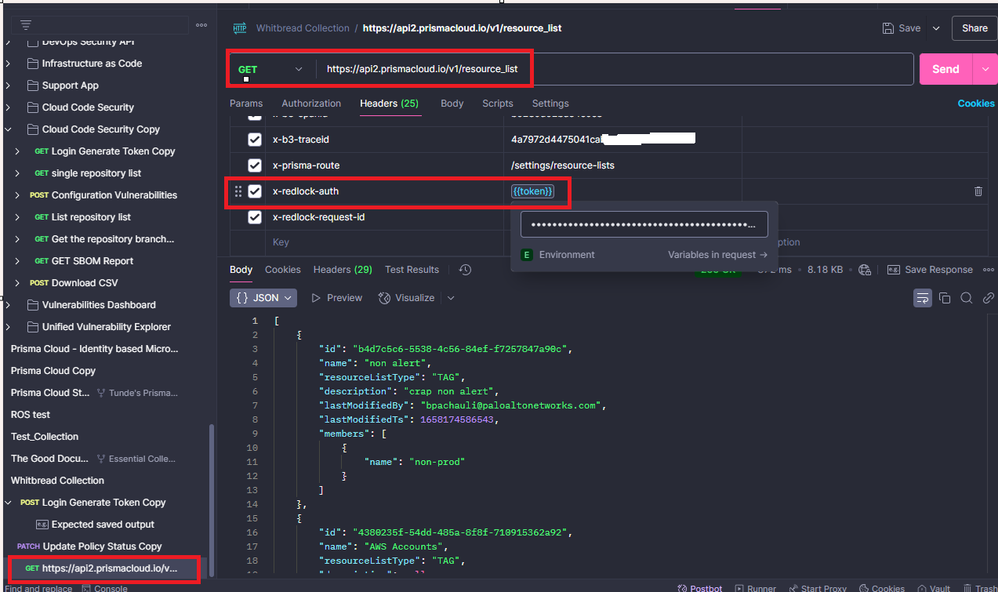

In Postman as seen in the right screenshot above, under Headers, set your “x-redlock-auth” header parameter to your “token” Environmental Variable, if set. Here, you may need to re-login to get the JWT using the Prisma Cloud Login, as mentioned above.
You can now hit the Send button to make the GRT request for Postman to return the list of your Resource lists.

Note: While those API endpoints are available and can be used, if they are not documented, they are unsupported. Hence they can not be guaranteed to always be available and or may be changed or removed without advance notice.

Using the Postman Collection runner?

Postman allows you to group a number of API endpoints together which allows you to group for organization purposes. There are other useful things you can do like duplicate, edit, move, share but the most important is Run collection. The Run Collection allows you to all the API requests sequentially with additional flexibility; as seen in the screenshot below:

Figure 12: Postman-Collection-runner-with-Prisma-Cloud-APIs_PaloAltoNetworks

Run Manually: Allows you to run the collection of API endpoints in sequence with an opportunity to set the number of Iterations or Delays (in ms).
Schedule Runs: This allows you to run periodically at a specified time of your choosing.
Automate Runs via CLI: This is where you can configure CLI commands of your collection to run in your build pipeline. It comes with additional flexibility of:

I. Run on Postman CLI: Automate using Postman’s command-line tool.

Figure 13: Postman-Automated-CLI-run_PaloAltoNetworks

Ii. Run on CI/CD: Configure command to run collection on CI/CD pipeline of your choosing, with options including Jenkins, Gitlab, Circle CI, and Azure Pipelines to mention a few.

Configure Command: When you click the configure command at the bottom of the above mentioned screenshot, you get a pop up as seen below, where you can set your desired collection that you intend to run in your CICD pipeline, your desired Environmental Variable, your CI/CD provider, and the Operating System of your CI/CD.

You can thereafter copy the generated template and paste in your specified CI/CD provider to run the collection as a pipeline there.

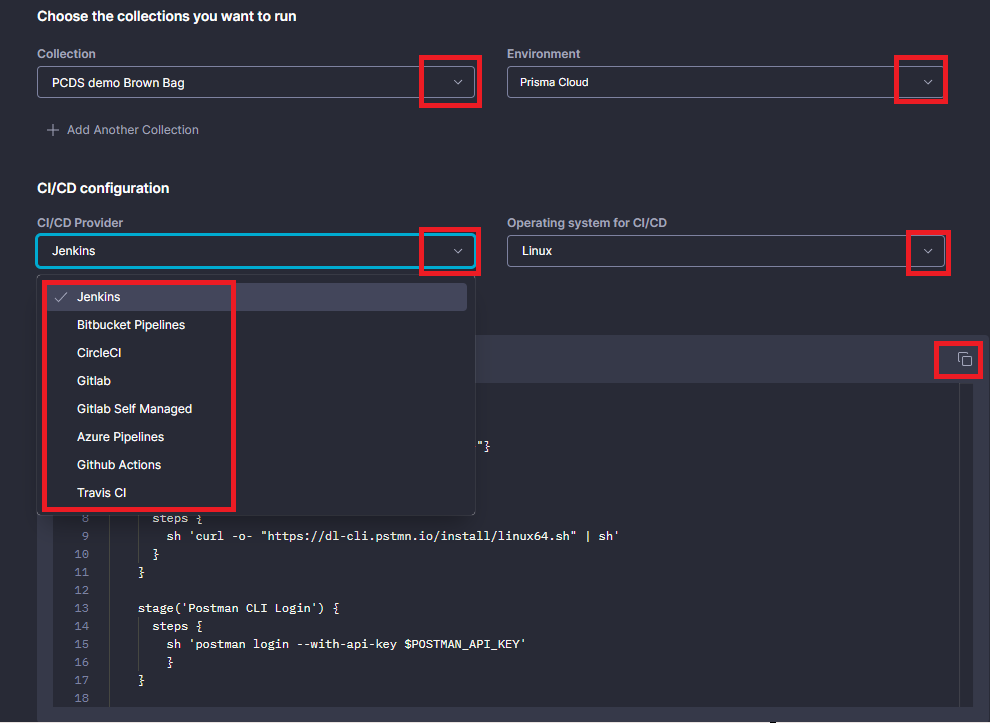

Figure 14: Postman-CI/CD-run-with-Prisma-API_PaloAltoNetworks

Conclusion

One can leverage the Prisma Cloud API Collections with Postman tool in operationalizing the Prisma Cloud Platform. This becomes particularly useful when a collection is grouped to be run as a collection runner either as a manual run, a scheduled run, or as an automated CLI run in a CI/CD pipeline of one’s choosing.
