VPN s2s with Juniper ScreenOS with multiple networks on PA side

cancel
Showing results for
Search instead for
Did you mean:

VPN s2s with Juniper ScreenOS with multiple networks on PA side

L4 Transporter

Hello



I have to connect by ipsec vpn PA200 PANOS6.1.6 with NS5GT 6.2.0r15 ScreenOS.

Problem that I have is that clients behind NS must have access to two LANs on PA and to internet throuth tunnel.



LAN_A———

LAN_B——— PaloAlto……….tunel_IPSec………………Netscreen———LAN_M

Internet ——



How to do it?



At the moment I have working config like https://www.corelan.be/index.php/2007/11/17/juniper-setting-up-an-ipsec-vpn-tunnel-between-a-juniper...

but I really don't know how to set up tunnel for internet traffic - how to setup "VPN>AutoKey IKE ".



As I remember on this forum are ScreenOS experts so I ask You for help.





Regards

SLawek

2 ACCEPTED SOLUTIONS

Accepted Solutions

L5 Sessionator

The settings are the same as for any VPN. The only diference are proxy IDs On PA side: local 0.0.0.0/0, remote LAN_M and vice versa on Juniper



View solution in original post

Hi,



If you followed the configuration in the link you already setup a route based VPN on the screenos side. The next step would be:



-Delete proxy-IDs on both sides (PA and screenos) and check that you can still reach the LAN through the VPN.

And on the screenos side.

-Create a static route to the PA public ip address,

-Replace your current default gateway and disable any possible DIP, do this on a maintenance window as you can lost management. If you're using the public IP interface you also need to create a route like te previous one to manage it.

https://live.paloaltonetworks.com/t5/Configuration-Articles/Routing-Branch-Site-Internet-Traffic-Thr...

On the PA side,

-Create a dynamicIP/port NAT policy for the network on the branch office and the security policy, this will allow the internet conection.



regards,

Gerardo.

View solution in original post

4 REPLIES 4

L5 Sessionator

The settings are the same as for any VPN. The only diference are proxy IDs On PA side: local 0.0.0.0/0, remote LAN_M and vice versa on Juniper



Hi Santonic



I did as You wrote and tunnel is working for LANs, now problem is with internet access only.



Now my routing table looks like:

IPv4 Dest-Routes for <trust-vr> (7 entries)
--------------------------------------------------------------------------------------
         ID          IP-Prefix      Interface         Gateway   P Pref    Mtr     Vsys
--------------------------------------------------------------------------------------
*         3          0.0.0.0/0        untrust   x.y.z.129   C    0      1     Root
*         5     192.168.5.1/32          trust         0.0.0.0   H    0      0     Root
*         4     192.168.5.0/24          trust         0.0.0.0   C    0      0     Root
*         1   x.y.z.128/26        untrust         0.0.0.0   C    0      0     Root
*         6     192.168.1.0/24          tun.1         0.0.0.0   S   20      1     Root
*         7    192.168.50.0/24          tun.1         0.0.0.0   S   20      1     Root
*         2   x.y.z.158/32        untrust         0.0.0.0   H    0      0     Root



x.y.z.129  is a default gateway for NS device.



My untrust interface of NS is in route mode.

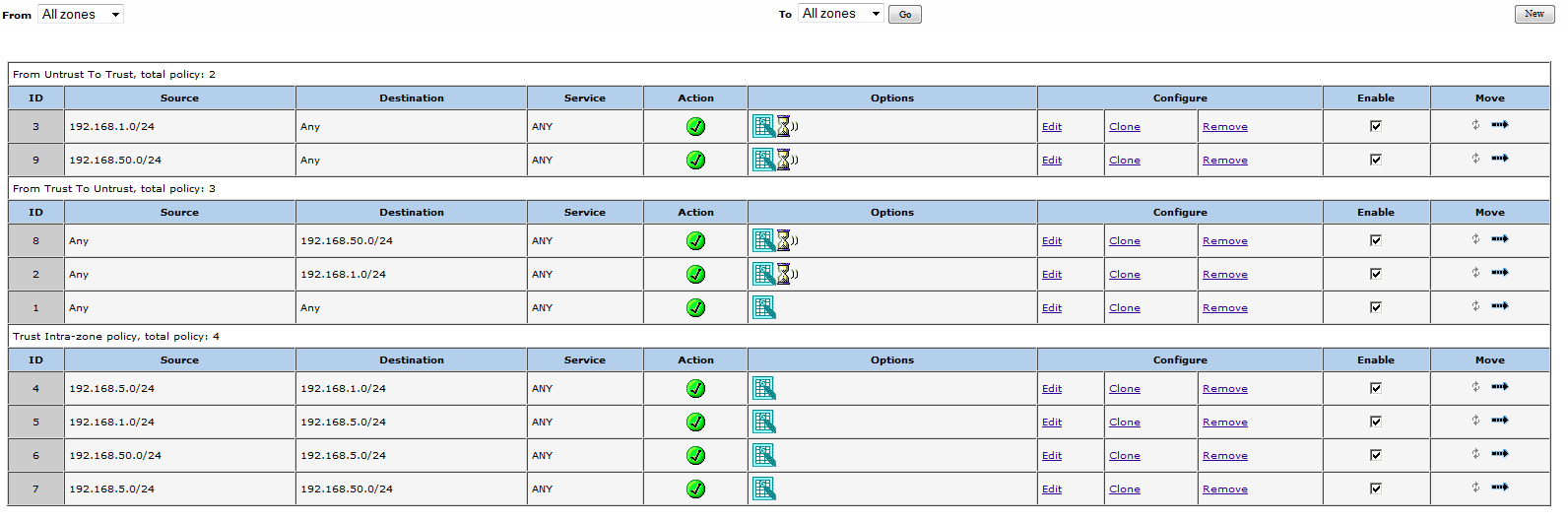

My security policies loks like:


Are they policy nessesary? How do I change it according to proxy_id change?

Help me please

Hi,



If you followed the configuration in the link you already setup a route based VPN on the screenos side. The next step would be:



-Delete proxy-IDs on both sides (PA and screenos) and check that you can still reach the LAN through the VPN.

And on the screenos side.

-Create a static route to the PA public ip address,

-Replace your current default gateway and disable any possible DIP, do this on a maintenance window as you can lost management. If you're using the public IP interface you also need to create a route like te previous one to manage it.

https://live.paloaltonetworks.com/t5/Configuration-Articles/Routing-Branch-Site-Internet-Traffic-Thr...

On the PA side,

-Create a dynamicIP/port NAT policy for the network on the branch office and the security policy, this will allow the internet conection.



regards,

Gerardo.

Hi Glastra



I cretaed static source route from LAN of Netscreen device and internet traffic started working.



Thank You for all of You for Your help.



Regards

SLawek
