Check GlobalProtect VPN users with PowerShell GUI

Reply
Highlighted
L2 Linker

Check GlobalProtect VPN users with PowerShell GUI

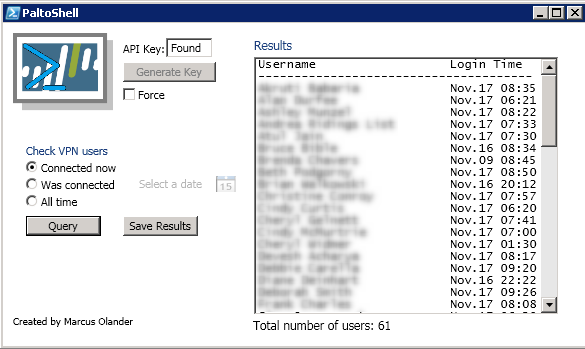

I wrote a simple PowerShell GUI script that can check for GlobalProtectVPN users connected currently, or at a past date.

It uses the Rest API to grab the information. Not sure if anyone would find it useful.

Here is the Github link: https://github.com/marcusit/PaltoShell



paltoshell



Highlighted
L1 Bithead

Re: Check GlobalProtect VPN users with PowerShell GUI

Thank you for building this. I get an error after I try and genereate the API key 'The remote name could not be resolved'.



I treid both the hostname and IP for the variable in the script but still get this same error. Any ideas on what I may be missing? I do get prompted for authentication, could it be an authentication issue?

Highlighted
L2 Linker

Re: Check GlobalProtect VPN users with PowerShell GUI

I noticed that I had left a static variable in the function to generate a new API key (line 82).

I updated the code on GitHub, so if you download the script again it should work for you now.



The authentication comes from the script itself, it stores the credentials in a variable that it then passess to the firewall to be able to generate the API key.

Highlighted
L1 Bithead

Re: Check GlobalProtect VPN users with PowerShell GUI

Thanks for the quick update. Now I seem to be getting -





Exception calling "DownloadString" with "1" argument(s): "The underlying connection was closed: An unexpected error occurred on a send."
+   [xml]$get_api_key = $KeyClient.DownloadString($key_url)



Highlighted
L2 Linker

Re: Check GlobalProtect VPN users with PowerShell GUI

Are you running PowerShell version 4 or higher? You can check my running "$psversiontable.PSVersion" in PowerShell.

You would also need Microsoft .NET Framework. Not sure on version, but it works with 4.6.01590.

Highlighted
L1 Bithead

Re: Check GlobalProtect VPN users with PowerShell GUI

Yes. Version 5 and .NET 4.6

Highlighted
Cyber Elite

Re: Check GlobalProtect VPN users with PowerShell GUI

To me this sounds like the TLS version does not mat or the server/client where you run the script does not trust the firewall certificate. As far as I know by default powershell only connects to trusted certs and I am sure that by default TLS1.0 (and only 1.0) is used.



By adding this line you can force TLS1.2:

[System.Net.ServicePointManager]::SecurityProtocol = [System.Net.SecurityProtocolType]::Tls12;
Highlighted
L2 Linker

Re: Check GlobalProtect VPN users with PowerShell GUI


@vsys_remowrote:

To me this sounds like the TLS version does not mat or the server/client where you run the script does not trust the firewall certificate. As far as I know by default powershell only connects to trusted certs and I am sure that by default TLS1.0 (and only 1.0) is used.



By adding this line you can force TLS1.2:

[System.Net.ServicePointManager]::SecurityProtocol = [System.Net.SecurityProtocolType]::Tls12;

This might be correct. You can check for cert errors by going to the firewall GUI and see if you receive a cert warning.

You can do some testing by just running this code snippet:

  $fw_hostname = "Your firweall hostname or IP here"
  $pass = Get-Credential -Credential $env:userdomain\$env:username
  $plainpass = $pass.GetNetworkCredential().Password
  $key_url = "https://"+$fw_hostname+"/api/?type=keygen&user="+$env:username+"&password="+$plainpass
  $KeyClient = New-Object System.Net.WebClient
  $KeyClient.DownloadString($key_url)

Be sure to change the first line. You should get text output similar to below:

<response status = 'success'><result><key>YOUR API KEY</key></result></response>



Finally you can test it in a browser too, to make sure you are able to generate an API key:

https://<FIREWALL HOSTNAME OR IP>/api/?type=keygen&user=<YOUR FW USERNAME>&password=<YOUR FW PASSWORD>

Highlighted
L1 Bithead

Re: Check GlobalProtect VPN users with PowerShell GUI

I really apprecaite all of the help. It looks like the TLS fix worked and am now able to generate the API key.



Now i get this when i try and query the users. I am assuming this is a permission thing -

Exception calling "DownloadString" with "1" argument(s): "The remote server returned an error: (403) Forbidden."
At C:\WINDOWS\System32\WindowsPowerShell\PaltoShell-GUI.ps1:121 char:5
+     [xml]$global:result = $WebClient.DownloadString($query_url)
+     ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : NotSpecified: (:) [], MethodInvocationException
    + FullyQualifiedErrorId : WebException
Highlighted
L2 Linker

Re: Check GlobalProtect VPN users with PowerShell GUI

You might not have the correct API permissions on the firewall. I have not had a chance to pinpoint exactly what permissions are needed as I have superuser rights, and no lower account to test with.

You can create custom admin roles and grant API permissions under Device > Admin Roles. You would then tie this role to your administrative account.
