Terraform NGFW provider failing to get token for CloudFirewallAdmin

L2 Linker

Hi,



I am trialling out the TF provider in this repo and I have successfully built the provider locally. I am able to configure it as per the settings mentioned in the doc. To give a brief overview, I have

  1. Subscribed to Palo NGFW in AWS Marketplace
  2. Added our sandbox AWS Account to Palo NGFW and run the Cloudformation template which creates cross-account IAM roles.
  3. Enabled Programmatic access and created the IAM role mentioned in the docs to grant access to API Gateway. I have also tagged the IAM role with

              Key=NGFWaasRole, Value=CloudFirewallAdmin

              Key=NGFWaasRole, Value=CloudRulestackAdmin

    tags as mentioned in the other ticket
  4.  I have granted sts:AssumeRole permission so that any authenticated user in my sandbox account can assume the above role.
  5. After setting up all of this, I supply the following config values to the provider

                   host: "api.us-east-1.aws.cloudngfw.paloaltonetworks.com"

                   region: "us-east-1"

                   arn: "<The arn of the API Gateway IAM Role I setup in step 3>"

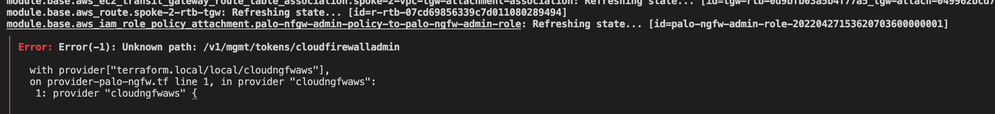

The provider initialises successfully when I run terraform init, however when I run terraform plan, it errors as per the screenshot below




I can only speculate (since I am not familiar with golang, but the code for ngfw client is here ) that the client is failing to execute steps 8 and 9 mentioned here



Another thing to note is that the tags mentioned in step 5 of the above article are different from the ones you have mentioned in the linked ticket above. Is there any reason for this difference? Also, the Github repo linked in step 6 has a broken link, so I cannot view the CFT examples.



Any help would be appreciated since I am now effectively blocked in automating the NGFW firewall creation.



Regards,

Shreyas









24 REPLIES 24

L5 Sessionator

Run terraform apply with logging enabled, it might have more information:

TF_LOG=debug terraform apply

I have been told that the docs are wrong with regards to the tags needed for the role created in AWS.  Change the tags as follows:



  • CloudFirewallAdmin > CloudNGFWFirewallAdmin
  • CloudRulestackAdmin > CloudNGFWRulestackAdmin

Thanks @gfreeman

I made changes to the tags, and it made no difference. After switching on TF_LOG, I got an error message which might be of interest to you.



-----------------------------------------------------: timestamp=2022-04-28T21:05:56.317+0100
2022-04-28T21:05:56.381+0100 [INFO]  provider.terraform-provider-cloudngfwaws_v1.0.0: 2022/04/28 21:05:56 [DEBUG] CloudNgfwAws API Response Details:
---[ RESPONSE ]--------------------------------------
HTTP/1.1 403 Forbidden
Connection: close
Content-Length: 251
Access-Control-Allow-Headers: Content-Type,X-Amz-Date,Authorization,X-Api-Key,X-Amz-Security-Token,X-Amz-User-Agent
Access-Control-Allow-Methods: *
Access-Control-Allow-Origin: *
Content-Type: application/json
Date: Thu, 28 Apr 2022 20:05:56 GMT
X-Amz-Apigw-Id: <Redacted>
X-Amzn-Errortype: AccessDeniedException
X-Amzn-Requestid: <Redacted>
X-Amzn-Trace-Id: <Redacted>

{
 "message": "User: arn:aws:sts::<Redacted>:assumed-role/palo-ngfw-admin-role/sdk_session is not authorized to perform: execute-api:Invoke on resource: arn:aws:execute-api:us-east-1:********1261:63kpcf9k68/prod/GET/v1/mgmt/tokens/cloudrulestackadmin"
}



The palo-ngfw-admin-role is setup as such



{
    "Version": "2012-10-17",
    "Statement": [
       {
          "Effect": "Allow",
          "Action": [
            "execute-api:Invoke"
          ],
          "Resource": [
            "arn:aws:execute-api:*:*:*"
          ]
      }
    ]
  }



The assume role policy for assuming the role above is set up as such



{
    "Version": "2012-10-17",
    "Statement": [
      {
        "Sid": "AssumeTaggedRole",
        "Effect": "Allow",
        "Action": "sts:AssumeRole",
        "Principal": {
            "AWS": "arn:aws:iam::${account-id}:root"
        },
        "Condition": {
            "StringEquals": {"iam:ResourceTag/CloudFirewallAdmin": "CloudNGFWFirewallAdmin"}
        }
      }
    ]
  }




The IAM role is set up as



resource "aws_iam_role" "palo-ngfw-admin-role" {
  name               = "palo-ngfw-admin-role"
  assume_role_policy = data.template_file.assume-role-policy.rendered
  tags = {
    "CloudFirewallAdmin"  = "CloudNGFWFirewallAdmin",
    "CloudRulestackAdmin" = "CloudNGFWRulestackAdmin"
  }
}

resource "aws_iam_policy" "palo-nfgw-admin-policy" {
  name   = "palo-nfgw-admin-policy"
  policy = data.template_file.palo-ngfw-admin-policy.rendered
  tags = {
    "Name" = "palo-nfgw-admin-policy"
  }
}

resource "aws_iam_role_policy_attachment" "palo-nfgw-admin-policy-to-palo-ngfw-admin-role" {
  role       = aws_iam_role.palo-ngfw-admin-role.name
  policy_arn = aws_iam_policy.palo-nfgw-admin-policy.arn
}



The provider config is setup as follows



provider "cloudngfwaws" {
  json_config_file = "./cloudngfwaws_config.json"
}

{
    "host": "api.us-east-1.aws.cloudngfw.paloaltonetworks.com",
    "region": "us-east-1",
    "arn": "arn:aws:iam::<redacted>:role/palo-ngfw-admin-role"
  }



After all this set up, the IAM user that I use to login to our sandbox account assumes the palo-ngfw-admin-role and tries to execute the api gateway which subsequently fails. Any ideas please?



Regards,

Shreyas

Looking at that response, it seems like something is misconfigured with your AWS setup.



Found some other documentation and this does actually have the updated role tags that I mentioned above, so maybe there's something in here that's the answer..?

https://pan.dev/cloudngfw/aws/api



Thanks @gfreeman

That document is exactly the same as this one. The interesting part is that I had set up the tags properly as per that doc, but the result remains the same. Are you sure the perms on the API Gateway in your AWS Account are configured correctly? It might be that you need to re-deploy the API Gateway if you have changed the policies recently on your side. More info here and here






Here is the IAM Role with the tags







resource "aws_iam_role" "palo-ngfw-admin-role" {
  name               = "palo-ngfw-admin-role"
  assume_role_policy = data.template_file.assume-role-policy.rendered
  tags = {
    "CloudNGFWFirewallAdmin"        = "Create and manage firewalls.",
    "CloudNGFWRulestackAdmin"       = "Create and manage local rulestacks.",
    "CloudNGFWGlobalRulestackAdmin" = "Create and manage global rulestacks."
  }
}







Here is the assume role policy for cloud-firewall-admin







{
    "Version": "2012-10-17",
    "Statement": [
      {
        "Sid": "AssumeTaggedRole",
        "Effect": "Allow",
        "Action": "sts:AssumeRole",
        "Principal": {
            "AWS": "arn:aws:iam::${account-id}:root"
        },
        "Condition": {
            "StringEquals": {"iam:ResourceTag/CloudNGFWFirewallAdmin": "Create and manage firewalls."}
        }
      }
    ]
  }








And the IAM policy is configured exactly as per the doc







{
    "Version": "2012-10-17",
    "Statement": [
       {
          "Effect": "Allow",
          "Action": [
            "execute-api:Invoke"
          ],
          "Resource": [
            "arn:aws:execute-api:*:*:*"
          ]
      }
    ]
  }







From the terraform debug logs, I can see that the role above is being assumed by my IAM user. The NGFW provider API requests are below







2022-04-29T09:45:12.557+0100 [DEBUG] provider: starting plugin: path=.terraform/providers/terraform.local/local/cloudngfwaws/1.0.0/darwin_amd64/terraform-provider-cloudngfwaws_v1.0.0 args=[.terraform/providers/terraform.local/local/cloudngfwaws/1.0.0/darwin_amd64/terraform-provider-cloudngfwaws_v1.0.0]
2022-04-29T09:45:12.562+0100 [DEBUG] provider: plugin started: path=.terraform/providers/terraform.local/local/cloudngfwaws/1.0.0/darwin_amd64/terraform-provider-cloudngfwaws_v1.0.0 pid=43578
2022-04-29T09:45:12.562+0100 [DEBUG] provider: waiting for RPC address: path=.terraform/providers/terraform.local/local/cloudngfwaws/1.0.0/darwin_amd64/terraform-provider-cloudngfwaws_v1.0.0
2022-04-29T09:45:12.575+0100 [INFO]  provider.terraform-provider-cloudngfwaws_v1.0.0: configuring server automatic mTLS: timestamp=2022-04-29T09:45:12.574+0100
2022-04-29T09:45:12.593+0100 [DEBUG] provider: using plugin: version=5
2022-04-29T09:45:12.593+0100 [DEBUG] provider.terraform-provider-cloudngfwaws_v1.0.0: plugin address: address=/var/folders/xb/lm10djv969x0kn2qkt_kpns80000gp/T/plugin580437062 network=unix timestamp=2022-04-29T09:45:12.593+0100
2022-04-29T09:45:12.626+0100 [WARN]  ValidateProviderConfig from "provider[\"registry.terraform.io/hashicorp/aws\"]" changed the config value, but that value is unused
2022-04-29T09:45:12.630+0100 [DEBUG] No provider meta schema returned
2022-04-29T09:45:12.632+0100 [DEBUG] provider.terraform-provider-aws_v4.10.0_x5: Using profile from configuration: "sandbox-networking": timestamp=2022-04-29T09:45:12.631+0100
2022-04-29T09:45:12.632+0100 [INFO]  provider.terraform-provider-aws_v4.10.0_x5: Retrieved credentials from "SharedConfigCredentials: /Users/Shreyas.Zanpure/.aws/credentials": timestamp=2022-04-29T09:45:12.632+0100
2022-04-29T09:45:12.632+0100 [DEBUG] provider.terraform-provider-aws_v4.10.0_x5: Trying to get account information via sts:GetCallerIdentity: timestamp=2022-04-29T09:45:12.632+0100
2022-04-29T09:45:12.633+0100 [INFO]  ReferenceTransformer: reference not found: "path.module"
2022-04-29T09:45:12.633+0100 [DEBUG] ReferenceTransformer: "module.base.data.template_file.init" references: []
2022-04-29T09:45:12.633+0100 [DEBUG] provider.terraform-provider-aws_v4.10.0_x5: [aws-sdk-go-v2] Request
POST / HTTP/1.1
Host: sts.us-east-1.amazonaws.com
User-Agent: APN/1.0 HashiCorp/1.0 Terraform/1.0.7 (+https://www.terraform.io) terraform-provider-aws/dev (+https://registry.terraform.io/providers/hashicorp/aws) aws-sdk-go-v2/1.16.2 os/macos lang/go/1.17.6 md/GOOS/darwin md/GOARCH/amd64 api/sts/1.16.0
Content-Length: 43
Amz-Sdk-Invocation-Id: 8334faa7-d169-43e6-b42f-c4029b5ce990
Amz-Sdk-Request: attempt=1; max=25
Authorization: AWS4-HMAC-SHA256 Credential=AKIAWZZ3MAPME2WKYNVE/20220429/us-east-1/sts/aws4_request, SignedHeaders=amz-sdk-invocation-id;amz-sdk-request;content-length;content-type;host;x-amz-date, Signature=624cd938ef86b60469f73a6219155b8a76b6bdf77b10d6c16e14d566b0326025
Content-Type: application/x-www-form-urlencoded
X-Amz-Date: 20220429T084512Z
Accept-Encoding: gzip

Action=GetCallerIdentity&Version=2011-06-15: timestamp=2022-04-29T09:45:12.633+0100
2022-04-29T09:45:12.633+0100 [INFO]  ReferenceTransformer: reference not found: "path.module"
2022-04-29T09:45:12.633+0100 [INFO]  ReferenceTransformer: reference not found: "var.account-id"
2022-04-29T09:45:12.633+0100 [DEBUG] ReferenceTransformer: "module.base.data.template_file.assume-role-policy" references: []
2022-04-29T09:45:12.633+0100 [INFO]  ReferenceTransformer: reference not found: "path.module"
2022-04-29T09:45:12.633+0100 [DEBUG] ReferenceTransformer: "module.base.data.template_file.palo-ngfw-admin-policy" references: []
2022-04-29T09:45:12.636+0100 [INFO]  provider.terraform-provider-cloudngfwaws_v1.0.0: 2022/04/29 09:45:12 (login) refreshing JWTs...: timestamp=2022-04-29T09:45:12.636+0100
2022-04-29T09:45:12.636+0100 [INFO]  provider.terraform-provider-cloudngfwaws_v1.0.0: 2022/04/29 09:45:12 (login) refreshing rulestack JWT...: timestamp=2022-04-29T09:45:12.636+0100
2022-04-29T09:45:12.637+0100 [INFO]  provider.terraform-provider-cloudngfwaws_v1.0.0: 2022/04/29 09:45:12 (login) refreshing firewall JWT...: timestamp=2022-04-29T09:45:12.637+0100
2022-04-29T09:45:12.637+0100 [DEBUG] provider: plugin process exited: path=.terraform/providers/registry.terraform.io/hashicorp/template/2.2.0/darwin_amd64/terraform-provider-template_v2.2.0_x4 pid=43577
2022-04-29T09:45:12.637+0100 [DEBUG] provider: plugin exited
2022-04-29T09:45:13.007+0100 [INFO]  provider.terraform-provider-cloudngfwaws_v1.0.0: 2022/04/29 09:45:13 [DEBUG] CloudNgfwAws API Request Details:
---[ REQUEST ]---------------------------------------
GET /v1/mgmt/tokens/cloudrulestackadmin HTTP/1.1
Host: api.us-east-1.aws.cloudngfw.paloaltonetworks.com
User-Agent: Terraform/1.0.7 (+https://www.terraform.io) Terraform-Plugin-SDK/2.10.1 terraform-provider-cloudngfwaws/dev
Content-Length: 65
Authorization: AWS4-HMAC-SHA256 Credential=ASIAWZZ3MAPMJZ4GVKG6/20220429/us-east-1/execute-api/aws4_request, SignedHeaders=content-type;host;x-amz-date;x-amz-security-token, Signature=e13e27cac4a60e4b93e1948cda678f21a2831a12b81d7c0bbbc8aac4cbdae8c7
Content-Type: application/json
X-Amz-Date: 20220429T084513Z
X-Amz-Security-Token: FwoGZXIvYXdzEEIaDHY/DJ8ESp2CSON+3iKvAbnQ+A3+se4jEjoXRmzrYU1olbKNc+ABgEKeNMXKwWLvZ4+YXb3Omorva6Y+E9RkJXOvbCT7iuY2N9nxu/pNri1E7pAGEchHkOQ4slk2C0K2vPipEVg3eKyUxtch7WynS51SeY04RP4qZipcF/UPzTM2OPo3EFL3lWqDH314tkIUdXVZ9UUidvabu/dhzyRUh+OeJaZCu1KPBdB5xoZr1mKz5DAVZcsQjaQXbShCH/comcuukwYyLaCDABerF3X0zuEAEnNHpDZXMbvrHHI8/MFXtA41UTFHmDrKsjkWiacLv/s86g==
Accept-Encoding: gzip

{
 "ExpiryTime": 120,
 "KeyInfo": {
  "Region": "us-east-1",
  "Tenant": "XY"
 }
}
-----------------------------------------------------: timestamp=2022-04-29T09:45:13.006+0100
2022-04-29T09:45:13.013+0100 [INFO]  provider.terraform-provider-cloudngfwaws_v1.0.0: 2022/04/29 09:45:13 [DEBUG] CloudNgfwAws API Request Details:
---[ REQUEST ]---------------------------------------
GET /v1/mgmt/tokens/cloudfirewalladmin HTTP/1.1
Host: api.us-east-1.aws.cloudngfw.paloaltonetworks.com
User-Agent: Terraform/1.0.7 (+https://www.terraform.io) Terraform-Plugin-SDK/2.10.1 terraform-provider-cloudngfwaws/dev
Content-Length: 65
Authorization: AWS4-HMAC-SHA256 Credential=ASIAWZZ3MAPMAVXHJH5M/20220429/us-east-1/execute-api/aws4_request, SignedHeaders=content-type;host;x-amz-date;x-amz-security-token, Signature=c25896b944eb1d50da387e0b28ad5e80c5a582f2baa1f8c580bacdf2f1a93bba
Content-Type: application/json
X-Amz-Date: 20220429T084513Z
X-Amz-Security-Token: FwoGZXIvYXdzEEIaDNTbGd35gptfaUWX+yKvARSKRrecP/LfUW+zY3HdQ2K/VdipSABiLgEP9o/tzb+MF2U/LxZ0AsSfl24+54TTbnVils9715vgwC27Pz+tc5rpF/gGHRkPH6Mh+iN0wio1h7Ts3mhfvhUAdX22+sgB1L6uSfLVX3+t/maUVSPqnORoZRJ6Bzk7c+0nb9h0FHWogvQXoIIp/6gWvoObSxAwUf+LBU3vDM6mZI2/pmkseJadGox7lYHT/gzmljW/7+komcuukwYyLQs7Qtr30KYv9mgPOi4eIszwncrby1xF0QblenvW1dpTgvEdIwiSjBzmVuf2xA==
Accept-Encoding: gzip

{
 "ExpiryTime": 120,
 "KeyInfo": {
  "Region": "us-east-1",
  "Tenant": "XY"
 }
}







As you can see, the provider tries to refresh JWT for both firewalladmin and rulestackadmin. The responses are below







2022-04-29T09:45:13.452+0100 [INFO]  provider.terraform-provider-cloudngfwaws_v1.0.0: 2022/04/29 09:45:13 [DEBUG] CloudNgfwAws API Response Details:
---[ RESPONSE ]--------------------------------------
HTTP/1.1 403 Forbidden
Connection: close
Content-Length: 250
Access-Control-Allow-Headers: Content-Type,X-Amz-Date,Authorization,X-Api-Key,X-Amz-Security-Token,X-Amz-User-Agent
Access-Control-Allow-Methods: *
Access-Control-Allow-Origin: *
Content-Type: application/json
Date: Fri, 29 Apr 2022 08:45:13 GMT
X-Amz-Apigw-Id: RVbQAHLYoAMF4eg=
X-Amzn-Errortype: AccessDeniedException
X-Amzn-Requestid: 2f112342-1b79-4ed9-9f47-5dc322991474
X-Amzn-Trace-Id: Root=1-626ba599-385c55af49a880b737155da7

{
 "message": "User: arn:aws:sts::467739083736:assumed-role/palo-ngfw-admin-role/sdk_session is not authorized to perform: execute-api:Invoke on resource: arn:aws:execute-api:us-east-1:********1261:63kpcf9k68/prod/GET/v1/mgmt/tokens/cloudfirewalladmin"
}
-----------------------------------------------------: timestamp=2022-04-29T09:45:13.452+0100
2022-04-29T09:45:13.453+0100 [INFO]  provider.terraform-provider-cloudngfwaws_v1.0.0: 2022/04/29 09:45:13 [DEBUG] CloudNgfwAws API Response Details:
---[ RESPONSE ]--------------------------------------
HTTP/1.1 403 Forbidden
Connection: close
Content-Length: 251
Access-Control-Allow-Headers: Content-Type,X-Amz-Date,Authorization,X-Api-Key,X-Amz-Security-Token,X-Amz-User-Agent
Access-Control-Allow-Methods: *
Access-Control-Allow-Origin: *
Content-Type: application/json
Date: Fri, 29 Apr 2022 08:45:13 GMT
X-Amz-Apigw-Id: RVbQAEDdoAMFlrw=
X-Amzn-Errortype: AccessDeniedException
X-Amzn-Requestid: 0544aee5-fcad-4bdd-8409-1017e4c4690e
X-Amzn-Trace-Id: Root=1-626ba599-539f933c60fb6d616b9c83b9

{
 "message": "User: arn:aws:sts::467739083736:assumed-role/palo-ngfw-admin-role/sdk_session is not authorized to perform: execute-api:Invoke on resource: arn:aws:execute-api:us-east-1:********1261:63kpcf9k68/prod/GET/v1/mgmt/tokens/cloudrulestackadmin"
}







At this point I am not really sure what is mis-configured on my side. I have followed the docs as mentioned. Also the link for this repo https://github.com/PaloAltoNetworks/CloudNGFW-AWS-Examples seems to be broken (mentioned in step 6 of the guide I linked at the beginning of this post), so I cannot look at the CFT examples either.



Regards,

Shreyas

OK, two things:



First is that I think the value of the tag is the important bit, not the key name.  In my setup, the keys are actually named "CloudNGFWFirewallAdmin1" and "CloudNgfwRulestackAdmin".  Try setting the values to the values mentioned in the 2nd link I provided and see if that changes the result.



Second, since you are essentially stuck at, "I'm trying to enable API access," this is fully supported TAC territory.  If you have a support contract with Palo Alto Networks in place, then I'd encourage you to reach out to TAC for help.  The Terraform provider is unreleased currently and should otherwise be considered beta code, but enabling API access has nothing to do with the provider.

Oh sorry, another thing:  I just noticed that in your error message, the ARN looks different from mine, but there's enough stuff going on that I don't know if this is a result of how the AWS SDK formats things or not.  And looking back, it does seem like you're using the ARN of the IAM role, but I just wanted to make sure...  The ARN that I specify in the provider configure block looks like this, just wanted to be certain that's what yours looks like also (I was using two different ARNs instead of a single one):



provider "cloudngfwaws" {
    lfa_arn = "arn:aws:iam::<number>:role/CloudNGFWFirewallAdmin1"
    lra_arn = "arn:aws:iam::<number>:role/CloudNgfwRuleStackAdmin"
    #....  other params
}







NBS Internal

Hi,

Would it be possible for you to supply the exact values of the “tag KV pairs” for the IAM role please? I have put the exact key/values for the tags from the article you linked to, where the value seems to be a sort of a description of the key. It would help clarify things a bit.

We do have a support contract as part of “Nationwide Building Society”, so I will try and find someone who can help me under that.

Thanks,
Shreyas.

I can't share my config, unfortunately.....  But I'm glad that you can engage TAC for figuring out API access.

It looks like the docs have been updated now along with provider (as you mentioned) with the correct tags and steps. I will try these out now and report back. Thanks 🙂

EDIT: I have got it working now. There is one another tweak that needs to be done. The KeyInfo property on line 14 in getJwtStruct needs to be commented out



https://github.com/PaloAltoNetworks/cloud-ngfw-aws-go/blob/main/auth.go



This is because the commit made here commented out the code supplying the property value. After I commented out the property locally, I rebuilt the provider, and I was able to run 'terraform plan' successfully 🙂



The error I was getting without commenting out KeyInfo was



ValidationError: 1 validation error for GetCloudFirewallAdminRequest
KeyInfo
  extra fields not permitted (type=value_error.extra)

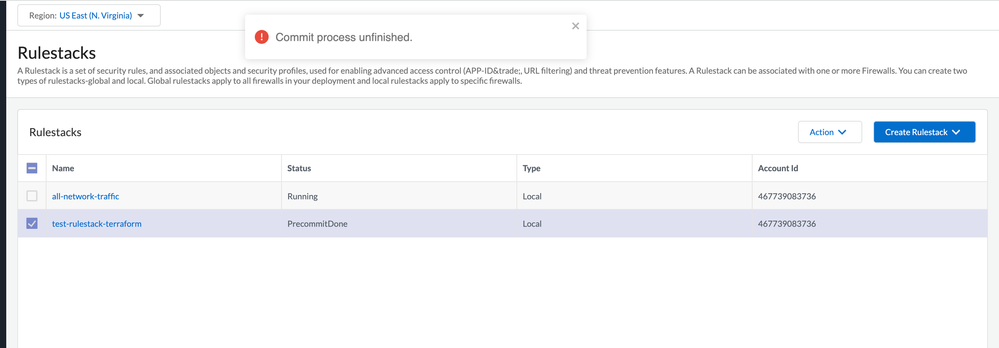

After commenting out, I got successful JWT generation and terraform plan out as follows



2022-05-03T11:37:08.302+0100 [INFO]  provider.terraform-provider-cloudngfwaws_v1.0.0: 2022/05/03 11:37:08 sending: {"ExpiryTime":120}: timestamp=2022-05-03T11:37:08.302+0100
2022-05-03T11:37:08.302+0100 [INFO]  provider.terraform-provider-cloudngfwaws_v1.0.0: 2022/05/03 11:37:08 path: https://api.us-east-1.aws.cloudngfw.paloaltonetworks.com/v1/mgmt/tokens/cloudfirewalladmin: timestamp=2022-05-03T11:37:08.302+0100
2022-05-03T11:37:08.302+0100 [INFO]  provider.terraform-provider-cloudngfwaws_v1.0.0: 2022/05/03 11:37:08 [DEBUG] CloudNgfwAws API Request Details:
---[ REQUEST ]---------------------------------------
GET /v1/mgmt/tokens/cloudfirewalladmin HTTP/1.1
Host: api.us-east-1.aws.cloudngfw.paloaltonetworks.com
User-Agent: Terraform/1.0.7 (+https://www.terraform.io) Terraform-Plugin-SDK/2.10.1 terraform-provider-cloudngfwaws/dev
Content-Length: 18
Authorization: AWS4-HMAC-SHA256 Credential=<redacted>/20220503/us-east-1/execute-api/aws4_request, SignedHeaders=content-type;host;x-amz-date;x-amz-security-token, Signature=<redacted>
Content-Type: application/json
X-Amz-Date: 20220503T103708Z
X-Amz-Security-Token: <redacted>
Accept-Encoding: gzip

{
 "ExpiryTime": 120
}

2022-05-03T11:37:11.650+0100 [INFO]  provider.terraform-provider-cloudngfwaws_v1.0.0: 2022/05/03 11:37:11 [DEBUG] CloudNgfwAws API Response Details:
---[ RESPONSE ]--------------------------------------
HTTP/1.1 200 OK
Connection: close
Content-Length: 874
Access-Control-Allow-Origin: *
Cache-Control: no-store
Content-Security-Policy: frame-ancestors none
Content-Type: application/json
Date: Tue, 03 May 2022 10:37:11 GMT
Strict-Transport-Security: max-age=31536000
X-Amz-Apigw-Id: <redacted>
X-Amzn-Requestid: 12db701d-62b9-4097-9a1b-3a8d509c86f2
X-Amzn-Trace-Id: Root=1-627105d4-122e8dba707e6988101c1aa8
X-Content-Type-Options: no-sniff
X-Frame-Options: DENY

{
 "Response": {
  "TokenId": <redacted>,
  "SubscriptionKey": <redacted>,
  "ExpiryTime": 120,
  "Enabled": true
 },
 "ResponseStatus": {
  "ErrorCode": 0
 }
}



Terraform will perform the following actions:

  # module.base.cloudngfwaws_commit_rulestack.example will be created
  + resource "cloudngfwaws_commit_rulestack" "example" {
      + commit_errors     = (known after apply)
      + commit_status     = (known after apply)
      + id                = (known after apply)
      + rulestack         = "test-rulestack-terraform"
      + state             = "Running"
      + validation_errors = (known after apply)
      + validation_status = (known after apply)
    }

  # module.base.cloudngfwaws_ngfw.test-ngfw-terraform will be created
  + resource "cloudngfwaws_ngfw" "test-ngfw-terraform" {
      + account_id                       = "467739083736"
      + app_id_version                   = (known after apply)
      + automatic_upgrade_app_id_version = true
      + description                      = "Test NGFW created via terraform provider"
      + endpoint_mode                    = "CustomerManaged"
      + id                               = (known after apply)
      + name                             = "test-ngfw-terraform"
      + rulestack                        = "test-rulestack-terraform"
      + tags                             = {
          + "Foo" = "bar"
        }
      + update_token                     = (known after apply)
      + vpc_id                           = "vpc-0f9f37d5ba25bf53e"

      + subnet_mapping {
          + subnet_id = "subnet-063a57e75839ba2ba"
        }
      + subnet_mapping {
          + subnet_id = "subnet-016286207f6cede42"
        }
    }

  # module.base.cloudngfwaws_rulestack.test-rulestack-terraform will be created
  + resource "cloudngfwaws_rulestack" "test-rulestack-terraform" {
      + account_id             = "467739083736"
      + description            = "Test rulestack created via terraform provider"
      + id                     = (known after apply)
      + minimum_app_id_version = (known after apply)
      + name                   = "test-rulestack-terraform"
      + scope                  = "Local"
      + state                  = (known after apply)

      + profile_config {
          + anti_spyware  = "BestPractice"
          + anti_virus    = "BestPractice"
          + file_blocking = "BestPractice"
          + url_filtering = "None"
          + vulnerability = "BestPractice"
        }
    }

  # module.base.cloudngfwaws_security_rule.test-security-rule-terraform will be created
  + resource "cloudngfwaws_security_rule" "test-security-rule-terraform" {
      + action             = "Allow"
      + applications       = [
          + "any",
        ]
      + audit_comment      = "initial config"
      + description        = "Test security rule created via terraform provider"
      + enabled            = true
      + id                 = (known after apply)
      + logging            = true
      + name               = "test-security-rule-terraform"
      + negate_destination = true
      + priority           = 1
      + protocol           = "application-default"
      + rule_list          = "LocalRule"
      + rulestack          = "test-rulestack-terraform"
      + tags               = (known after apply)
      + update_token       = (known after apply)

      + category {}

      + destination {
          + cidrs = [
              + "any",
            ]
        }

      + source {
          + cidrs = [
              + "any",
            ]
        }
    }

Plan: 4 to add, 0 to change, 0 to destroy.

I keep forgetting how golang treats XML and JSON is not the same.  Ok, this should be fixed now, just re-pull and SDK and the provider.  I added NGFW tagging and rulestack tagging last night.



Awesome to hear it's working for you!

Thanks 🙂
I did get stuck on another thing though. The rulestack resource execution was followed by commit_rulestack resource. The default state is set to Running. However, when the NFGW resource was being created, I had a timeout after around 5 minutes and 30 seconds. When I ran tf plan once more, tf wanted to change state from “precommitdone” to “running” (due to default state in terraform resource block being “running” and state on Palo NGFW UI being “precommitdone”. I wasn’t able to run terraform apply again due to recurring error

module.base.cloudngfwaws_commit_rulestack.commit-test-rulestack-terraform: Creating...
╷
│ Error: Error(1): Commit process unfinished.
│
│   with module.base.cloudngfwaws_commit_rulestack.commit-test-rulestack-terraform,
│   on modules/base/palo-ngfw.tf line 33, in resource "cloudngfwaws_commit_rulestack" "commit-test-rulestack-terraform":
│   33: resource "cloudngfwaws_commit_rulestack" "commit-test-rulestack-terraform" {

I am also unable to delete the rulestack from NGFW UI.



Have you encountered this? The docs suggest that I should look at the read-only properties on the rulestack to find it’s status, which can be done via output vars, but does mean that all ruelstacks need to be defined in their own module?
It would be great if the docs could include an example of some sort dependency, where NGFW is created only after rulestack has switched to a status of “Running” in Palo UI, instead of setting the default state in terraform which does not truly reflect the state in Palo UI. Hope that makes sense.

Thanks,
Shreyas

You shouldn't have cloudngfwaws_commit_rulestack in the same plan file as cloudngfwaws_rulestack, this is called out in the docs.  This is because of the order of operations that Terraform does things in, there will always be, what is referred to in Terraform, as "configuration drift."  Commit rulestack needs to be in its own plan file, but can be paired with other commit rulestack operations.



The commit rulestack resource has 15min set as the timeout, so I don't know why it timed out after 5min...?  I've also not encountered PrecommitDone sticking around for a long time, but I suspect at this point it is no longer in this state..?

Actually, I've only seen SUCCESS / FAILURE / PENDING, I've not seen PrecommitDone before.  If you do terraform refresh / terraform show, is it showing that the cloudngfwaws_commit_rulestack.(terraform_name).CommitStatus is PrecommitDone...??

  • 9953 Views
  • 24 replies
  • 1 Likes
Like what you see?

Show your appreciation!

Click Like if a post is helpful to you or if you just want to show your support.

Click Accept as Solution to acknowledge that the answer to your question has been provided.

The button appears next to the replies on topics you’ve started. The member who gave the solution and all future visitors to this topic will appreciate it!

These simple actions take just seconds of your time, but go a long way in showing appreciation for community members and the LIVEcommunity as a whole!

The LIVEcommunity thanks you for your participation!
