Broker VM || SYSLOG APPLET

[P.Balan]

Hi All,

We have deployed broker vm and enabled syslog applet and configured the broker vm ip as remote host in one of our linux server and IBM guardium database activity monitoring tool but we are unable to see the logs in the console.

unkonwn_unknown_raw data not getting created , but when checked tcp dump in broker vm log received by the broker vm.

kindly let us know how to torubleshoot the issus

[eluis]

Hi @P.Balan

If your log sources are able to produce LEEF or CEF logs, please configure such.
Broker vm syslog applet will identify the vendor and will store the logs at a dataset with the vendor and model name of the device. It might be what is happening and you are looking to the wrong dataset =?

If Broker is receiving logs, it should store them. Everyting that is not known will go to unknown_unknown _raw dataset what can create a mix of many different log sources altogether

If you feel this has answered your query, please let us know by clicking like and on "mark this as a Solution".

Thank you.

Luis

[P.Balan]

Hi @eluis

1. Iam trying to get the logs of linux server , the unknown_unknown_raw data set itself not getting created.

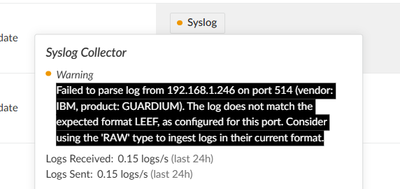

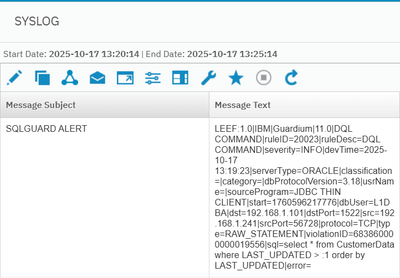

2. For IBM guardium log are configured to send in leef format

[eluis]

Hi @P.Balan

If LEEF / CEF is working properly, you should get the IBM product and model identified so the dataset name should be like:
IBM_IbmDeviceProductModel_raw

Check if in cogwheel settings configuration dataset management you have something like that. Even if the logs are not parsed, they should be put into unknown_unknown_raw

Might be that IBM is sending logs not in LEEF ? can you try with CEF ? Both formats should be parsed since are standard logs we understand. = Issue at IBM side generating log in those formats?

If not open a TAC support case since this is a bug-fix that needs to be handled

If you feel this has answered your query, please let us know by clicking like and on "mark this as a Solution".

Thank you.

Luis
