PA-3320 Session's Setup Alerts for session limits reached

L1 Bithead

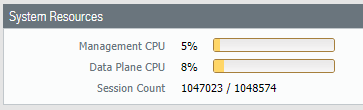

Today we had a networking issue that was random and hard to track down.  Turns out to be DDOS attack to our Citrix.  Since the Dashboard on the GUI doesn't show the BIG RED OMG Light when your maxed we missed it for sometime.


does anyone know how to setup Email alerts for sessions over a certain load.  20%.. 30%... 40%... AND 99%



1 accepted solution

Accepted Solutions

Cyber Elite
Cyber Elite

I don't believe there is an explicit alert for session table utilization

accelerated ageing kicks in at 80% by default (device > setup > session > session setting) which may create a log entry in the system log



It is highly advisable to set up zone protection profiles (using SYN cookies) and enabling packet buffer protection on your zones

packet buffer protection will start to alert at 50% usage (of the packet buffer)



you could additionally set up a DoS protection rule that limits the total number of allowed concurrent sessions towards your citrix farm, to prevent a DDoS attack from flooding your entire firewall







Tom Piens
PANgurus - Strata specialist; config reviews, policy optimization

View solution in original post

1 REPLY 1

Cyber Elite
Cyber Elite

I don't believe there is an explicit alert for session table utilization

accelerated ageing kicks in at 80% by default (device > setup > session > session setting) which may create a log entry in the system log



It is highly advisable to set up zone protection profiles (using SYN cookies) and enabling packet buffer protection on your zones

packet buffer protection will start to alert at 50% usage (of the packet buffer)



you could additionally set up a DoS protection rule that limits the total number of allowed concurrent sessions towards your citrix farm, to prevent a DDoS attack from flooding your entire firewall







Tom Piens
PANgurus - Strata specialist; config reviews, policy optimization
