ssl-inbound inspection problem

L1 Bithead

Hello everyone.



i'm configuring decryption with ssl-inbound inspection towards a nas synology via DNAT port-forwarding but i'm having trouble working with the following error that gives me the browser "PR_END_OF_FILE_ERROR". DNAT without ssl-inbound inspection works fine without certificate errors if I try to reach the web server from outside.

I have imported the certificate and the priv-key of the synology correctly on the fw and applied to the decryption policy, but I doubt that the zone-level decryption policy is wrong.

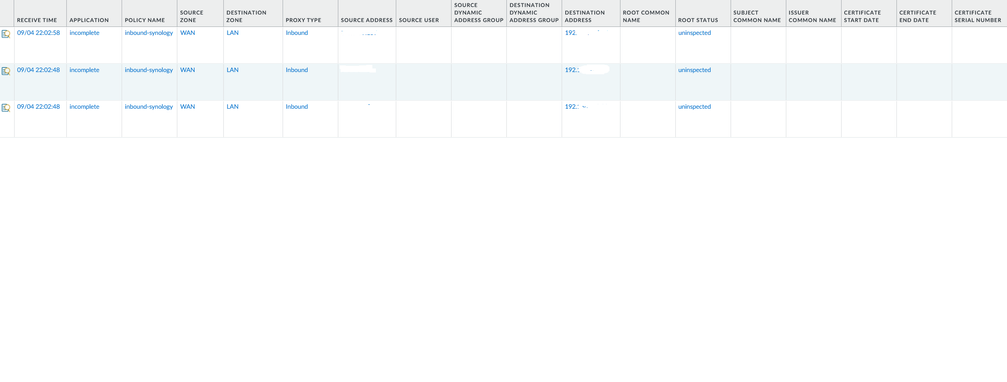

I post a couple of screens for completeness, decrypt, nat, security and logs

















Actually topology:  internet--->router(dnat to ptp-fw)--->FW(dnat to synology TCP 5001)---->SYNOLOGY



Thanks in advice,



Angelo.





2 REPLIES 2

L6 Presenter

There are other posts for such issues and you can google them but "PTP-FW-WAN2" is the destination address in your nat and security policies and for the security policy I think it should the translated internal zone address "SYNLOGY-NAC-...".



https://docs.paloaltonetworks.com/pan-os/10-1/pan-os-networking-admin/nat/nat-policy-rules/nat-polic...





If you still have issues see drop packet captures, global counters, flow basic etc:



https://live.paloaltonetworks.com/t5/general-topics/knowledge-sharing-palo-alto-checking-for-drops-r...







Still check that the app is indeed using normal SSL and that it is not using pinned SSL certs that can't be decrypted. You can look at the SSL logs:



https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-admin/decryption/troubleshoot-and-monitor-decry...





https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000CloUCAS



L6 Presenter

If you managed to get the needed answers, please flag the question as answered.
