Sending traffic logs with Syslogs (UDP) from PA-440 -> Collector Server in Azure -> LimaCharlie organization not working

L1 Bithead

I am trying to send Syslog from my PA-440 to a LimaCharlie organization.



This is the setup



PA-400 --Syslog--> Virtual Machine in Azure running Ubuntu with LimaCharlie Adapter --HTTPS--> LimaCharlie.io



This is what I have done in the PA-440



1. Objects -> Log Forwarding and
Add a profile

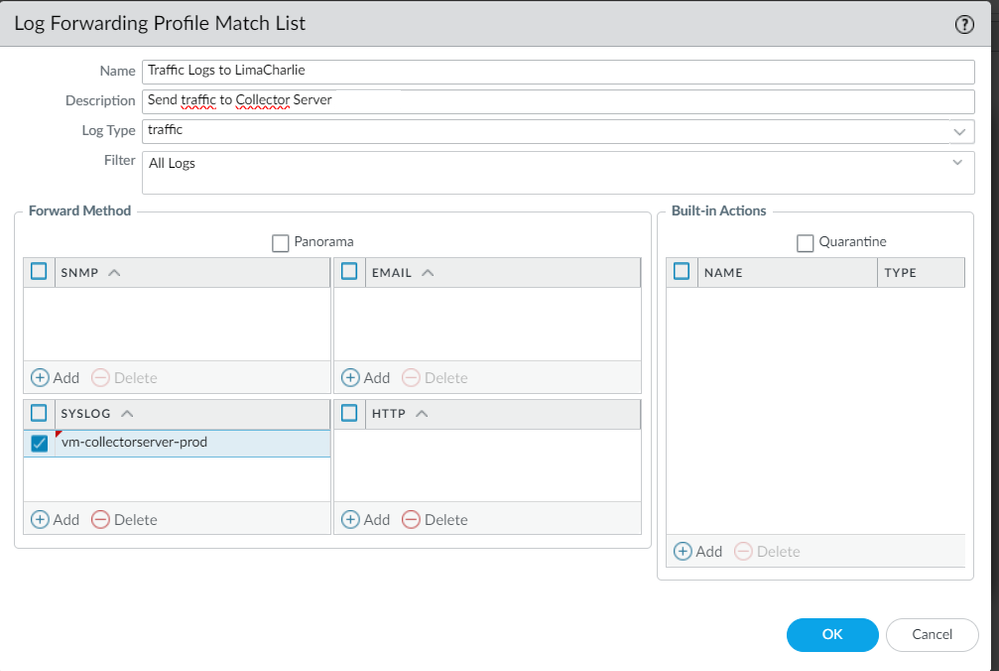

Log fowarding.png

  • Name: vm-collectorserver-prod

  • Syslog server: {Public IP from Azure}

  • Port number: 514

  • Format: BSD

  • Facility



I named the profile "LFP-Logs to LimaCharlie".

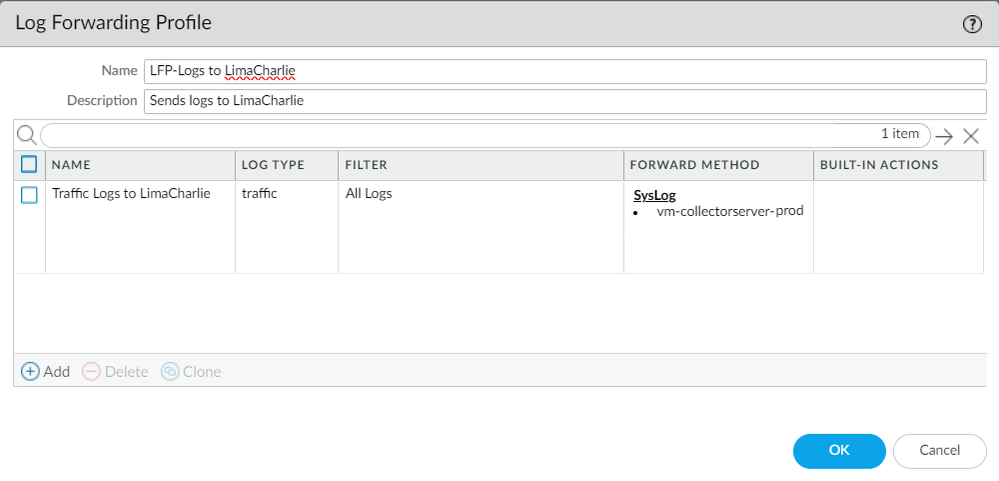

Log Fowarding profile.png



2. Policies
 -> Security


Actions -> Log Forwarding: LFP-Logs to LimaCharlie

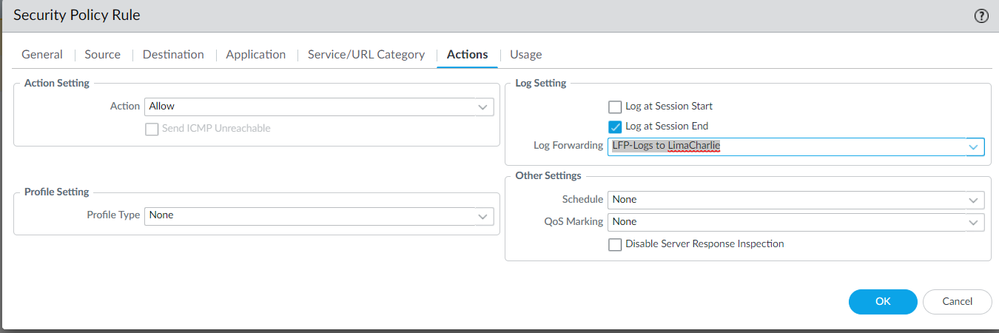

Security Policy Rule.png




This is what I have done in Azure



I created a VM with latest Ubuntu Server.

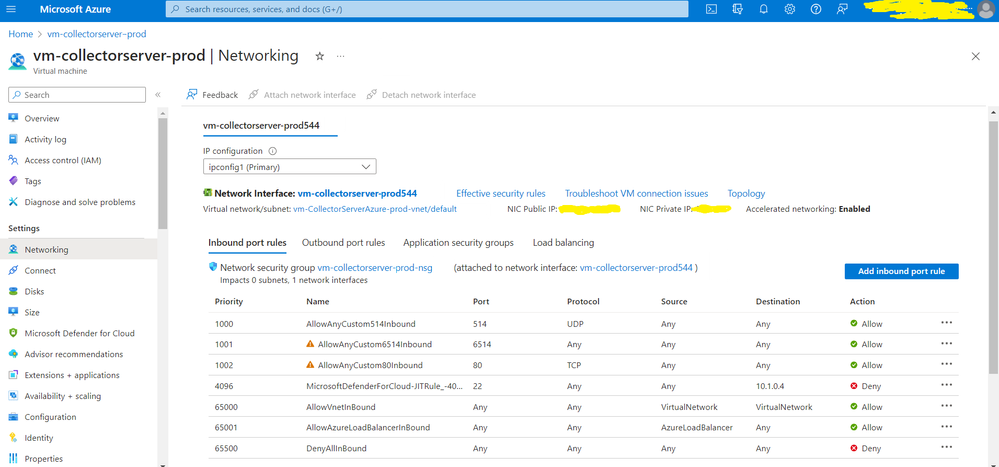

I opened port 514 UDP.




Next I installed LimaCharlie Adapter on it which is working fine:

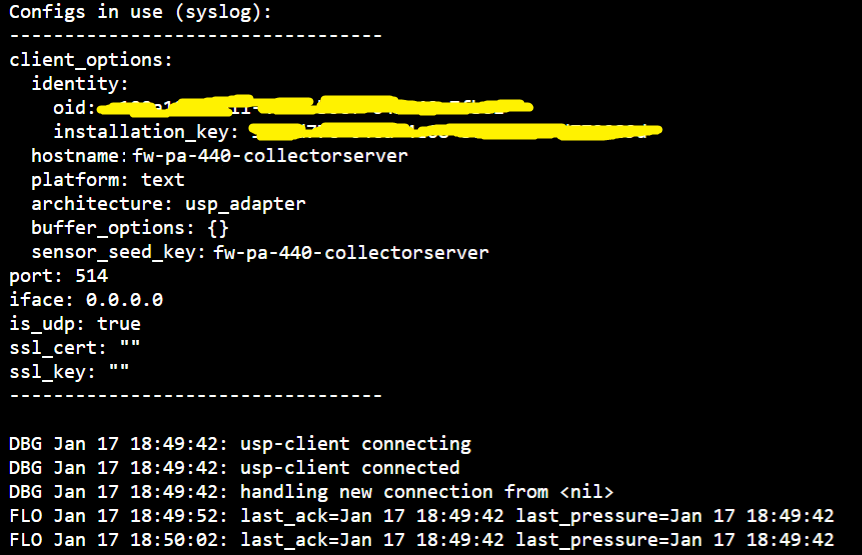

LimaCharlie Adapter.png



I tried to send a syslog message to it which came through to the LimaCharlie organization, meaning that the collector server can receive syslog:





logger -p 0 -n 1.2.3.4 "This is only test message ----- remote"

Screenshot from LimaCharlie.io:




Now I am a bit lost.. What should I try next in order to make sure that logs are sent from the Palo Alto firewall to my collector server in Azure?

3 REPLIES 3

L2 Linker

Hello @SoloSigma

I will verify the following:

  1. Check the traffic logs on the Monitor tab to see if any traffic is being denied.

  2. If no traffic logs are found, check the session browser logs (clear the session if needed).

Regards

Jorge Pomachagua
PCNSE, PCNSC.

I have checked the traffic logs and all has Action=allow.

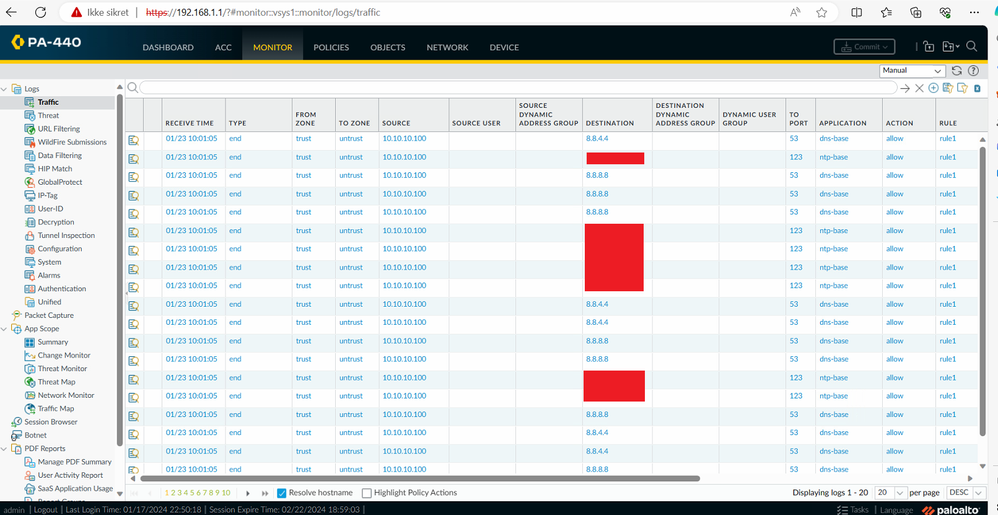

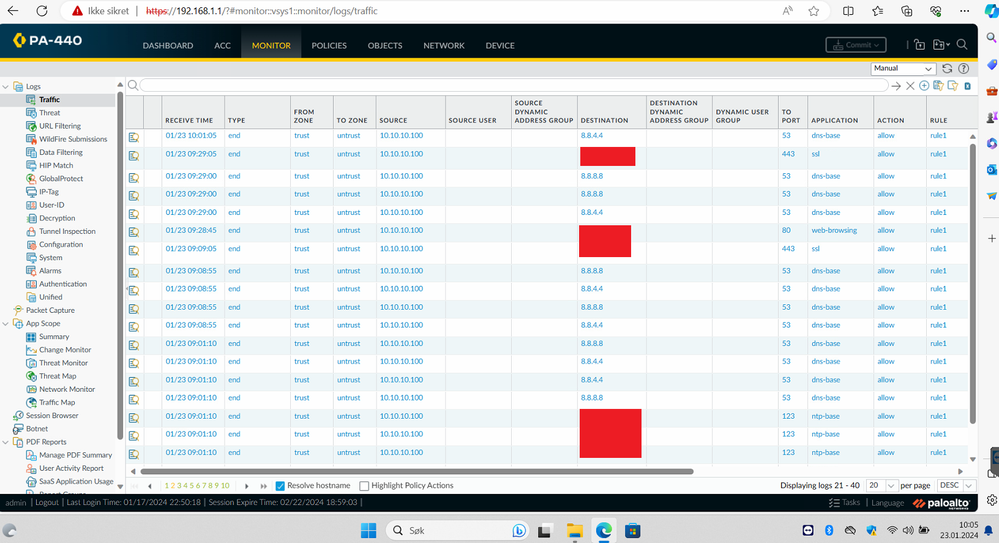

Traffic log page 1Traffic log page 1Traffic log page 2Traffic log page 2

L2 Linker

@SoloSigma



Can you verify if there is a NAT source IP address for the packets? Also, can you display the columns for bytes sent and bytes received?



Regards

Jorge Pomachagua
PCNSE, PCNSC.
