Hi, nice to meet you.
I recently expanded the logging disk space on my VM-Series firewall following the official Palo Alto Networks Knowledge Base article (link below).
KB Reference: https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000PNuACAW&lang=en_US
I noticed a strange side effect with SNMP monitoring. The specific OIDs for the Log Partition (hrStorageSize and hrStorageUsed) under index 1041 have disappeared:
- usage : .1.3.6.1.2.1.25.2.3.1.6.1041
- max : .1.3.6.1.2.1.25.2.3.1.5.1041

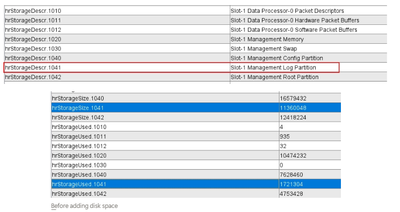

*Before adding disk space
*After adding disk space
Related KB : https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000PNuACAW&lang=en_US%E2%80%A...
In my opinion, method mentioned in KB above doesn't seem to expand the root disk. But rather mounts the newly attached volume to the logging partition. I suspect this logic is causing the OID to be deleted...
Has anyone seen this symptoms too? If so, did the storage index shift to another number (e.g., a new index instead of 1041), or did it stop reporting via SNMP entirely?
And are there alternative ways to expand the firewall disk space?
