BGP configuration

L2 Linker

I am looking to see the commands to check bgp configuration on palo alto 5050 Software version 8.1.14



We have that PA in our organization but i am new and trying to check why i am not able to learn a route 10.104.55.0/24 in BGP in PA 5050



I am learning 10.104.55.0/24 in the routing table.

admin@SHA-FWPA01A(active)> show routing route virtual-router XYZ-L3 | match 172.19.197.130
10.104.40.0/22 172.19.197.130 10 A S ae1.985
10.104.55.0/24 172.19.197.130 10 A S ae1.985
10.104.65.0/24 172.19.197.130 10 A S ae1.985
10.104.70.0/24 172.19.197.130 10 A S ae1.985
10.104.71.0/24 172.19.197.130 10 A S ae1.985
10.104.72.0/24 172.19.197.130 10 A S ae1.985
10.104.73.0/24 172.19.197.130 10 A S ae1.985
10.104.74.0/24 172.19.197.130 10 A S ae1.985
10.104.80.0/24 172.19.197.130 10 A S ae1.985
10.104.90.0/24 172.19.197.130 10 A S ae1.985
10.104.110.0/24 172.19.197.130 10 A S ae1.985
10.104.111.0/24 172.19.197.130 10 A S ae1.985
10.104.120.0/24 172.19.197.130 10 A S ae1.985
172.25.90.11/32 172.19.197.130 10 A S ae1.985
172.25.90.12/32 172.19.197.130 10 A S ae1.985
172.25.90.100/32 172.19.197.130 10 A S ae1.985
172.25.90.125/32 172.19.197.130 10 A S ae1.985
172.25.90.126/32 172.19.197.130 10 A S ae1.985
172.25.90.127/32 172.19.197.130 10 A S ae1.985
admin@SHA-FWPA01A(active)>

*********************************

admin@SHA-FWPA01A(active)> show routing fib virtual-router XYZ-L3 | match 172.19.197.130
111874 10.104.40.0/22 172.19.197.130 ug ae1.985 1500
162473 10.104.55.0/24 172.19.197.130 ug ae1.985 1500
111873 10.104.65.0/24 172.19.197.130 ug ae1.985 1500
111863 10.104.70.0/24 172.19.197.130 ug ae1.985 1500
111864 10.104.71.0/24 172.19.197.130 ug ae1.985 1500
111865 10.104.72.0/24 172.19.197.130 ug ae1.985 1500
111866 10.104.73.0/24 172.19.197.130 ug ae1.985 1500
111867 10.104.74.0/24 172.19.197.130 ug ae1.985 1500
111868 10.104.80.0/24 172.19.197.130 ug ae1.985 1500
111869 10.104.90.0/24 172.19.197.130 ug ae1.985 1500
111870 10.104.110.0/24 172.19.197.130 ug ae1.985 1500
111871 10.104.111.0/24 172.19.197.130 ug ae1.985 1500
111872 10.104.120.0/24 172.19.197.130 ug ae1.985 1500
111875 172.25.90.11/32 172.19.197.130 ug ae1.985 1500
111876 172.25.90.12/32 172.19.197.130 ug ae1.985 1500
111880 172.25.90.100/32 172.19.197.130 ug ae1.985 1500
111877 172.25.90.125/32 172.19.197.130 ug ae1.985 1500
111878 172.25.90.126/32 172.19.197.130 ug ae1.985 1500
111879 172.25.90.127/32 172.19.197.130 ug ae1.985 1500
admin@SHA-FWPA01A(active)>
***********************************************
If i check the BGP table 10.104.55.0/24 is not present.
admin@SHA-FWPA01A(active)> show routing protocol bgp loc-rib virtual-router XYZ-L3 | match 10.104
*10.104.0.0/16 172.19.210.66 SHA-CORE 0 100 i/c 7171072 0
*10.104.12.0/22 Local 0 100 igp 0 0
*10.104.24.0/22 Local 0 100 igp 0 0
*10.104.40.0/22 172.19.197.130 Local 0 100 igp 0 0
*10.104.65.0/24 172.19.197.130 Local 0 100 igp 0 0
*10.104.70.0/24 172.19.197.130 Local 0 100 igp 0 0
*10.104.71.0/24 172.19.197.130 Local 0 100 igp 0 0
*10.104.72.0/24 172.19.197.130 Local 0 100 igp 0 0
*10.104.73.0/24 172.19.197.130 Local 0 100 igp 0 0
*10.104.74.0/24 172.19.197.130 Local 0 100 igp 0 0
*10.104.80.0/24 172.19.197.130 Local 0 100 igp 0 0
*10.104.90.0/24 172.19.197.130 Local 0 100 igp 0 0
*10.104.110.0/24 172.19.197.130 Local 0 100 igp 0 0
*10.104.111.0/24 172.19.197.130 Local 0 100 igp 0 0
*10.104.120.0/24 172.19.197.130 Local 0 100 igp 0 0
admin@SHA-FWPA01A(active)>
*****************************************************
admin@SHA-FWPA01A(active)> show routing protocol bgp rib-out virtual-router XYZ-L3 peer SHA-CORE | match 10.104
10.104.12.0/22 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
10.104.24.0/22 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
10.104.40.0/22 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
10.104.65.0/24 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
10.104.70.0/24 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
10.104.71.0/24 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
10.104.72.0/24 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
10.104.73.0/24 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
10.104.74.0/24 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
10.104.80.0/24 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
10.104.90.0/24 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
10.104.110.0/24 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
10.104.111.0/24 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
10.104.120.0/24 172.19.210.68 SHA-CORE 0.0.0.0 advertised no aggregation
admin@SHA-FWPA01A(active)>







3 REPLIES 3

L4 Transporter

You ask a very general question, so I can give youonly a general answer.



If you need seach the command hierarchy document for your version for commands with BGP in them:



https://docs.paloaltonetworks.com/pan-os/9-0/cli-reference/pan-os-9-0-cli-ops-command-hierarchy.html







Also from the GUI you can check if everything is correct following:



https://docs.paloaltonetworks.com/pan-os/9-0/pan-os-admin/networking/bgp/bgp-overview.html

L2 Linker

Hi there,

Looking at your output we can see that all of the prefixes with a next-hop of 172.19.197.130 are static routes. When we look at the output of the BGP RIB we can see that only a subset of the static routes are present (ie, the component prefixes of 172.25.0.0/16 are missing).

Obviously you must have a redistribution profile in place which selects static routes, however it can't just be filtering on next-hop as you are missing some of the static routes, so it must be filtering on destination prefix. In which case I imagine your 10.104.55.0/24 is not in the list.

Can you share the output of



set cli config-output-format set

configure

show network virtual-router  XYZ-L3 protocol bgp redist-rules



...for each of the redistribution rule names outputted above eg: FOO-01, feed those names into the command below:



eg:

show network virtual-router XYZ-L3 protocol redist-profile FOO-01



cheers,

Seb.

Hi Seb,



Thanks for your reply.



I was looking for the command which will tell me the output of the redistribution rules on Palo-Alto.

Well, i did the same but did not get anything



admin@MOC2-FWPA01A(active)# show network virtual-router Gannett-L3 protocol bgp redist-rules
[edit]
admin@MOC2-FWPA01A(active)#



Further, i checked with someone in my team who has more knowledge on this and then get to know that there is a redistribution profile created which is checked on GUI.

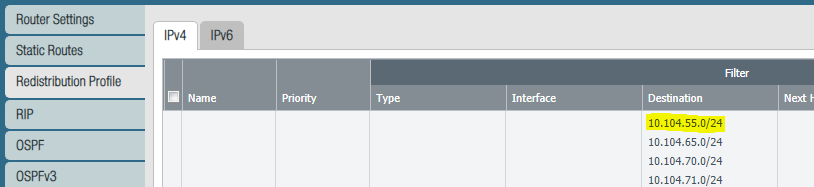

once i implemented that i had a success. i have attached a screenshot for the sameCapture.PNG
