design help

L4 Transporter

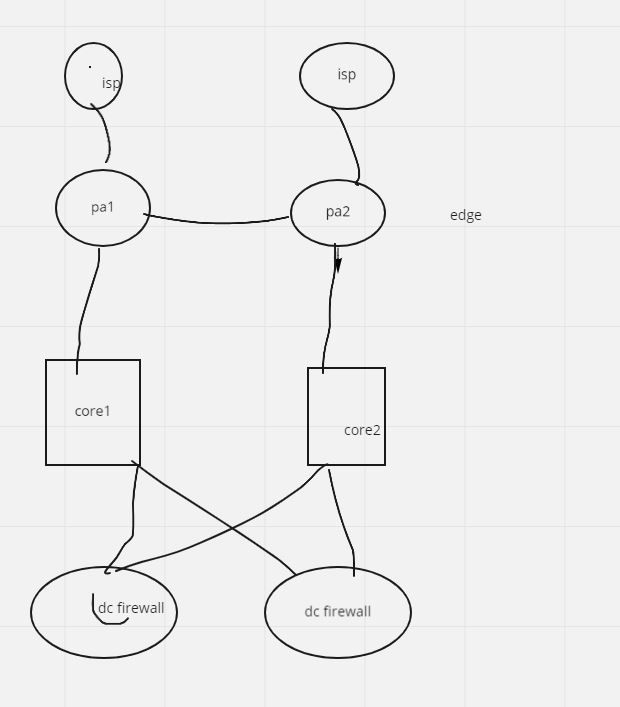

pa dmz.JPG


Hi all ,


I have the above topology , Now the question where should iI keep the dmz zone

on edge firewall or dc firewall





Cyber Elite
Cyber Elite

ideally on a separate switch environment connected to the edge

if that's not possible, on it's own VLAN on the core, connected via trunk on a subinterface on the edge


those would be my preferences 🙂

Tom Piens
PANgurus - Strata specialist; config reviews, policy optimization
