Don't see HA1 and HA2 ports

L1 Bithead

I am following this article "How to Configure High Availability on PAN-OS" to configure HA on our new PA-850. I don't see HA1 and HA2 ports. Or where I can configure HA interface?








Bob Lin, Chicagotech-MVP, MCSE & CNE
Data recovery, Windows OS Recovery, Networking, and Computer Troubleshooting on
http://www.ChicagoTech.net
How to Install and Configure Windows, VMware, Virtualization and Cisco on
http://www.HowToNetworking.com
3 ACCEPTED SOLUTIONS

Accepted Solutions

Cyber Elite
Cyber Elite

@boblin,

These won't be listed under the network interfaces tab. Go into the device tab under the high-availability to configure these interfaces.

View solution in original post

hi @boblin



all firewalls have the option of setting dataplane interfaces to HA mode, you can click the interface name and then select the HA type from the dropdown




you can then select those interfaces from the Device > High Availability > Ha communication menu



some devices have built-in HA1 and/or HA2 ports (and even Aux-1, Aux-2 and HSCI ports), which will show up in the High Availability configuration, but not in the Network (dataplane) interfaces as they can't be used to pass regular traffic





Tom Piens
Like my answer? check out my book! https://bit.ly/MasteringPAN

View solution in original post

Community Team Member

@boblin wrote:

I am learning the PA firewall. Can some one recommend me the more details or step by step how to link?


@boblin

I would totally recommend, that if you are looking about a whole getting started series. We do have a set of "Getting Started" guides that can help if you want to check out here:
https://live.paloaltonetworks.com/t5/blogs/getting-started-palo-alto-networks-firewall-series/ba-p/6...



There are also many good books out there.. ,
even one that @reaper wrote.. amazon.com/dp/1789956374

Way to go Tom!



LIVEcommunity team member
Stay Secure,
Joe
Don't forget to Like items!

View solution in original post

6 REPLIES 6

Cyber Elite
Cyber Elite

@boblin,

These won't be listed under the network interfaces tab. Go into the device tab under the high-availability to configure these interfaces.

View solution in original post

Got it! Thank you.

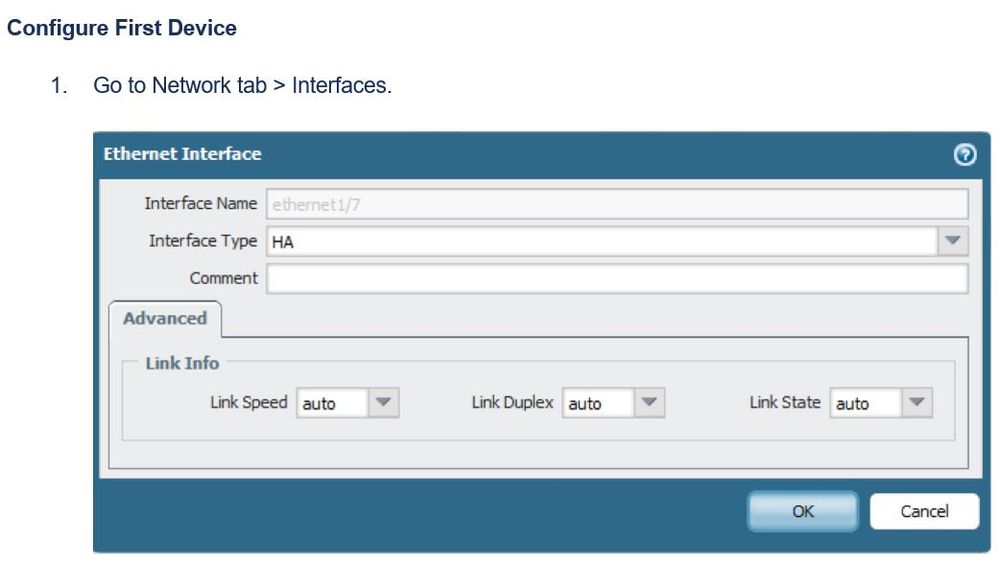

In the document, it shows like that.

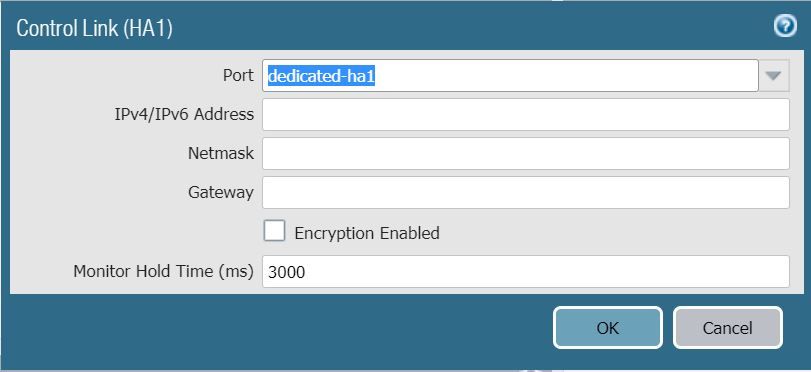

It looks like this.








Bob Lin, Chicagotech-MVP, MCSE & CNE
Data recovery, Windows OS Recovery, Networking, and Computer Troubleshooting on
http://www.ChicagoTech.net
How to Install and Configure Windows, VMware, Virtualization and Cisco on
http://www.HowToNetworking.com

hi @boblin



all firewalls have the option of setting dataplane interfaces to HA mode, you can click the interface name and then select the HA type from the dropdown




you can then select those interfaces from the Device > High Availability > Ha communication menu



some devices have built-in HA1 and/or HA2 ports (and even Aux-1, Aux-2 and HSCI ports), which will show up in the High Availability configuration, but not in the Network (dataplane) interfaces as they can't be used to pass regular traffic





Tom Piens
Like my answer? check out my book! https://bit.ly/MasteringPAN

View solution in original post

I am learning the PA firewall. Can some one recommend me the more details or step by step how to link?

Bob Lin, Chicagotech-MVP, MCSE & CNE
Data recovery, Windows OS Recovery, Networking, and Computer Troubleshooting on
http://www.ChicagoTech.net
How to Install and Configure Windows, VMware, Virtualization and Cisco on
http://www.HowToNetworking.com

Community Team Member

@boblin wrote:

I am learning the PA firewall. Can some one recommend me the more details or step by step how to link?


@boblin

I would totally recommend, that if you are looking about a whole getting started series. We do have a set of "Getting Started" guides that can help if you want to check out here:
https://live.paloaltonetworks.com/t5/blogs/getting-started-palo-alto-networks-firewall-series/ba-p/6...



There are also many good books out there.. ,
even one that @reaper wrote.. amazon.com/dp/1789956374

Way to go Tom!



LIVEcommunity team member
Stay Secure,
Joe
Don't forget to Like items!

View solution in original post

Thank you.

Bob Lin, Chicagotech-MVP, MCSE & CNE
Data recovery, Windows OS Recovery, Networking, and Computer Troubleshooting on
http://www.ChicagoTech.net
How to Install and Configure Windows, VMware, Virtualization and Cisco on
http://www.HowToNetworking.com
