How to add firewalls in active/standby mode in panoroma

L0 Member

How do I add firewalls in active and standby mode in panoroma if both active and stanby firewalls have same interface defined

. In this case ethernet1/21 and ethernet1/22

5 REPLIES 5

Cyber Elite
Cyber Elite

Hi Kirit



Are you encountering an issue or error message ?

There should not be an issue with adding both devices to panorama with both having the same interfaces, as this is a requirement for a HA pair



Tom Piens
PANgurus - Strata specialist; config reviews, policy optimization

How does HA work in palo alto? Does it use vrrp? We want to use active/passive config but we want to assign different physical ips to each interface on active and passive firewall?

Regardless of the HA mode used (A/A or A/P), each firewall retains it's unique/dedicated out-of-band management IP address.  The differences between the two are more apparent on the firewall/dataplane interfaces:



Active/Passive:

 - The Mac/IP Addresses for the dataplane interfaces are owned by the active firewall.  Nothing is present on the passive firewall (except for it's dedicated/oob management port).  In the event of a failover, the Mac/IP addresses float from the previously-active unit to the new active unit.



Active/Active:

 - Is more complicated.  Can be configured where no IP addressing is shared between firewalls, or can be configured with some shared addressing along with some dedicated addressing.



Generally speaking, I would recommend Active/Passive high-availability unless your network design has the possibility of asymmetric routing (ie: packet leaves firewall 1 via ISP1 and returns via ISP2 through firewall2).



Do you want each firewall to have a unique IP address just for management purposes, or is it to accomodate the network architecture north/south of the firewalls?



L1 Bithead

Dear friends ,

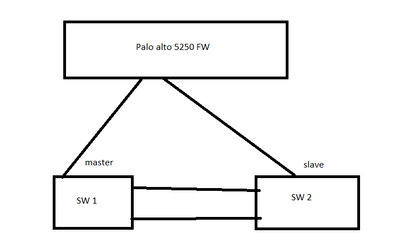

I am going to configure 1 Palo alto 5250 firewall, the physicals connection is  as attached below



kindly i need support for this  the way to configure on Firewall side

the  down link peer device is  Master / standby core switch  and upper link is ISP

 my question is i already added one interface from  fw to  Master switch and bend ip informion   but how i  add another interface and connect to standby switch , the way to assign ip on another interface








L1 Bithead
