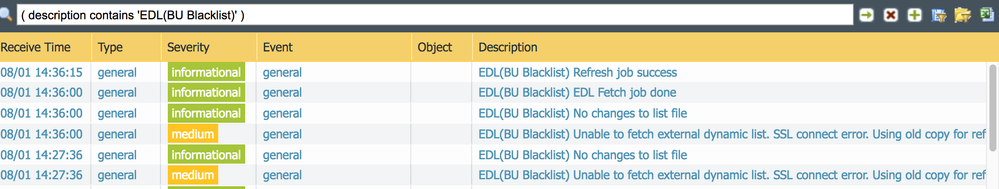

After upgrading from 8.0.6 to 8.0.10 our local EDL list stopped updating. The logs message states 'Unable to fetch external dynamic list. SSL connect error. Using old copy for refresh'. Anyone have any ideas on how to fix this?
I looked in the release notes from some hints and came up empty.
Thanks - Lora
Not that I could find anyway. I think it has to do with a new requirement in 8.0 but very strange that we didn't see it enforced until we upgraded from 8.0.6 to 8.0.10 though.
Snipet from the new requirement link above:
There was a slight hicup with that where you might not have noticed it directly until post 8.0.7 when that issue was addressed. That being said this would normally generate a more informative error instead of what you posted, which is rather generic. Regardless if you setup the certificate profile or set the EDL to "None" on the Server Authentication it should be able to actually pull the SSL again if that's the issue, so it should be a pretty quick thing to test.
I tried setting the profile to none via the CLI and that didn't fix either. For those following along the CLI commands I used to set the ertificate-profile to None via the CLI on a Panroma device were:
From configure mode: set shared external-list "Name of Your List" type url certificate-profile None <enter>
then I isseud a comitt and exited configure and issued a commit-all shared-policy device-group <name>
I then watched the system logs on the firewall directly and see the same warning messages as before.
I then checked the object list entries to determine if the list had been update or not and found it was not 😞
Looks like we will need to open a case. Thanks all for the ideas!
PANTAC has determined this is a TLS mismatch problem and is checking to see if there is an available work around while we determine internaly if we can upgrade the server or move the EDL to a more modern host.
For those following along (and since I could not find this command anywhere) this is what PANTAC did 😉
Set up TCPDump PCAP to capture traffic to the EDL from one CLI window
tcpdump filter "host xx.xx.xx.xx" (xx= ip of the external server hosting the EDL)
From a second CLI window; Ran a manual EDL refresh via the CLI by "request system external-list refresh type url name <name>"
We then exported the PCAP file to my workstatoin
scp export mgmt-pcap from mgmt.pcap to user@analyst_workstation_ip:./
Reviewed the PCAP using wireshark and discovered the Client Hello from the firewall showing TLS 1.2 and the Server Hello shows TLS 1.0, then the firewall sends a fatal error protocol version message.
Lastly to view the local logs from the CLI instead of the GUI, you can issue a command such as this:
tail follow yes mp-log ms.log from one terminal window while re-issuing the request system external-list refresh type url name <name> commands from a second window. In this particular case the raw logs were not more helpful than the GUI logs though - they both just stated "Unable to fetch external dynamic list. SSL connect error. Using old copy for refresh."
More to come when we finally resolve the issue.
