Issue with PBF Symmetric Return

We are running PanOS-10.0.2 on our PA-220 and we are having an issue with a PBF rule which seems to be denied even though it should match the traffic.



The setup:

2 WAN interfaces:

  • Primary = PPPoE interface on ETH 1/5. Route is added to router when PPPoE is online with metric 10
  • Secondary = "Normal" interface on ae1.100. Static route is in router with metric 20

For this example, I will use the IP's 1.2.3.4 for Primary and 5.6.7.8 for secondary

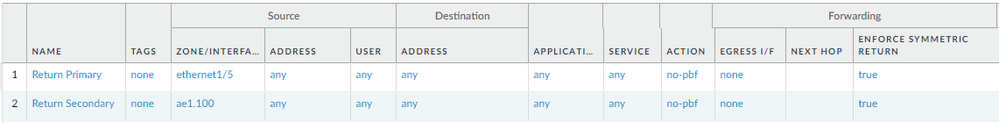

For both interfaces ping is allowed and there is a PBF rule added with Enforce Symmetric Return:

2020-11-02 15_06_01-Window.png



Primary WAN is working fine and failover is going as expected as soon as the PPPoE goes offline. Only issue is when both WAN are online, a ping to the secondary WAN is not working.



What happens is:

  • Ping from random WAN IP to 5.6.7.8
  • No response is received
  • Packet trace shows that the reply is sent over eth1/5 with 5.6.7.8 as source IP

Because of the PBF rule I would expect the reply to use the same interface, but instead it seems to ignore this and use the route with lowest metric.



Anyone around who has an idea why this is not working?

Highlighted
Cyber Elite

@mvrijsten,

Is the interface that you are attempting to ping the interface of the secondary WAN connection on the firewall itself? The PBF lookup is skipped for anything going from/to the firewall itself.

Highlighted
L1 Bithead

@BPry ,

Yes that is correct. I am trying to ping the WAN IP.



But as a check, I just also created a Dest. Nat rule to a internal webserver on this IP and that also does not work. Same issue is happening, so it does not seem to be the issue that it is the WAN IP I am trying to ping. Otherwise it should work with the NAT rule right?

Highlighted
Cyber Elite

@mvrijsten



As my esteemed CyberElite member @BPry  stated, you CANNOT use the WAN IP for your testing.

If you had additional public IPs available, you can do testing.



But.. PBF will not work if you do any testing that involves the use of the FWs public IP interfaces.



Thanks

Help the community: Like helpful comments and mark solutions
Highlighted
L1 Bithead

Thank you, I think I understand now.
