LSVPN not working when NAtted via Loopback

L4 Transporter

Hi Community,



I got the following problem:

We have a running LSVPN with primary and secondary tunnel, which are connected on the hub on two different VRs, which sync themselves via iBGP - everything fine so far.



One of the satellite sites got two ISP lines, which should be used active/passive for redundancy.

Binding the IPSec tunnel on the physical interface is not possible, because when this link goes down (because provider got a problem or sth else), the down-interface won't try to establish a VPN - I need to use a loopback IP, which is natted and routed to the active ISP line.



I did it, and the first impression was, that this is working, BUT: After 1h, when the IPSec SA dies, the renegotiation is taking too long and the users got problems via VoIP, SAP and so on.

When checking the hub and GW firewall, I noticed, that the SSL connection to Portal was built up from Satellite to Hub (as expected), but the IPSec tunnel was built up from Hub to Satellite.

That's why I'm confused - here I'm in the position of doing the NAT myself and both providers are direct public IPs, the PAN can use, but this wouldn't work, when sitting behind a provider Internet box, which does the Natting for me.



Does anybody know, if it's even supported, to have the LSVPN satellite IPsec sitting on a loopback interface and using an active/passive Internet redundancy?



I'm happy for any inputs here.



Regards

Chacko

Best Regards
Chacko
1 accepted solution

Accepted Solutions

L4 Transporter

TAC confirmed:

This request is not possible with LSVPN.

When trying to achive ISP redundancy on satellite side, a workaround would be a parallel classical VPN tunnel with different metrics.



A feature request was created for this:

FR ID 12468

Best Regards
Chacko

View solution in original post

9 REPLIES 9

L4 Transporter

could you please share rough sketch.

SD-WAN | Cloud Networking | PCNSE | ICSI CNSS | MCNA | | CCNP | CCSA | SPSP | SPSX | F5-101 |

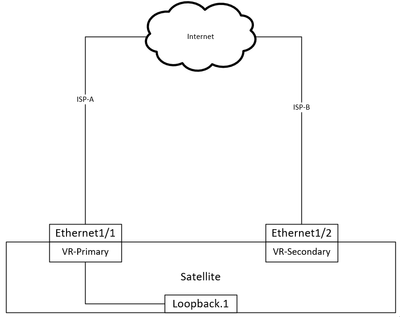

That's the setup.

Default Route is with metric 10 to ISP-A with Path-Monitoring, Default-Route with metric 20 is to next vr vr-secondary.

Loopback.1 is the source interface for lsvpn ipsec tunnel.



When configuring the ipsec tunnel directly on ethernet1/1 without nat - tunnel works.

When configuring the ipsec tunnel on loopback with static-nat to ISP-A, the Portal connection is initiated via Satellite, but the IPSec is initiated via Hub

Best Regards
Chacko

how do you check in lsvpn if hub is intiator ?

SD-WAN | Cloud Networking | PCNSE | ICSI CNSS | MCNA | | CCNP | CCSA | SPSP | SPSX | F5-101 |

when I have a look at the session table on the sateliite, I can see an outgoing session via SSL to LSVPN-Portal.

But the IPSec tunnel is incoming with source of the LSVPN-GW and that cannot be right.



In this special case, I can do a static nat, but if this is an ISP box with dynamic ip and we are just a box behind it, incoming IPSec is not possible and not by LSVPN design.

Best Regards
Chacko

L4 Transporter

TAC confirmed:

This request is not possible with LSVPN.

When trying to achive ISP redundancy on satellite side, a workaround would be a parallel classical VPN tunnel with different metrics.



A feature request was created for this:

FR ID 12468

Best Regards
Chacko

adding to that confusion...

the hub is not the initiator!

it just looks that way because the firewall does not recognize the incoming traffic, not seeing the outgoing traffic in the logs adds to that confusion

anyhow, according to Palo, as everyone can write anything in these forums, it shouldn't be taken seriously if someone writes that palo said something is not supported...

at least we were promised that this is a supported and working feature (at least working under lab conditions), as for the working part... still working with palo TAC on it who also referred me to this thread 🙂

Hi, does anyone have any updates? I tried LSVPN using a loopback on the satellite and it doesn't work for me. Packets go into the tunnel but don't come out on the other end.

Did PA ever do the feature request?

-Keith

I talked to Palo about this and after understanding how this works, I can say that they do not plan to implement this.

I worked around this by creating two LSVPNs on the same firewall, one as backup in a different virtual router but both times using the actual external interface, not a loopback.

The goal of redundancy was still achieved with that for me.

That was a good idea to use 2 VR's. Thanks for the update.
