One of interface is down in vm

L1 Bithead

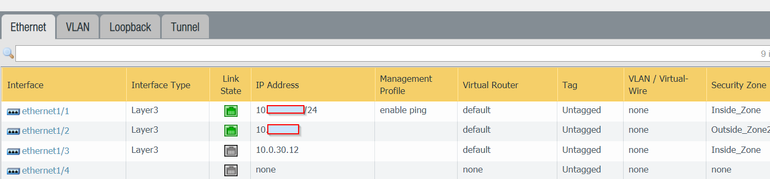

Hi, Palo Alto firewall is VM in ESXi. In the ESXi, I can see the firewall interface e1/1 , e1/2 and e1/3 are up. but I do not know why we can see the firewall e1/3 is down. Anyone can advise this?  Please see the below. Thank you






3 REPLIES 3

Community Team Member

as it always been like this or has something changed?

LIVEcommunity team member
Stay Secure,
Joe
Don't forget to Like items if a post is helpful to you!

Cyber Elite
Cyber Elite

@PAFrank,

On the VMware side of things you should be using VNic 1,2,3, and 4 for the 4th being tied to Ethernet1/3. I would verify that the VNIC is actually correct on the ESXi side of things so that the interface mappings are actually correct on the firewall. Also make sure that the VNIC 4 is actually set to use vmxnet3.

L1 Bithead

Thank you BPry for your reply. It looks like vmware Nic 1,2,3,4 coresponding FW interface e1/2, 1/3, 1/4. and after commit, it shows up
