PA HA with Topology Design

L0 Member

Hello Community,

I have two sites, I did an initial design, and I want to make sure that I won't find any problems in real installation*

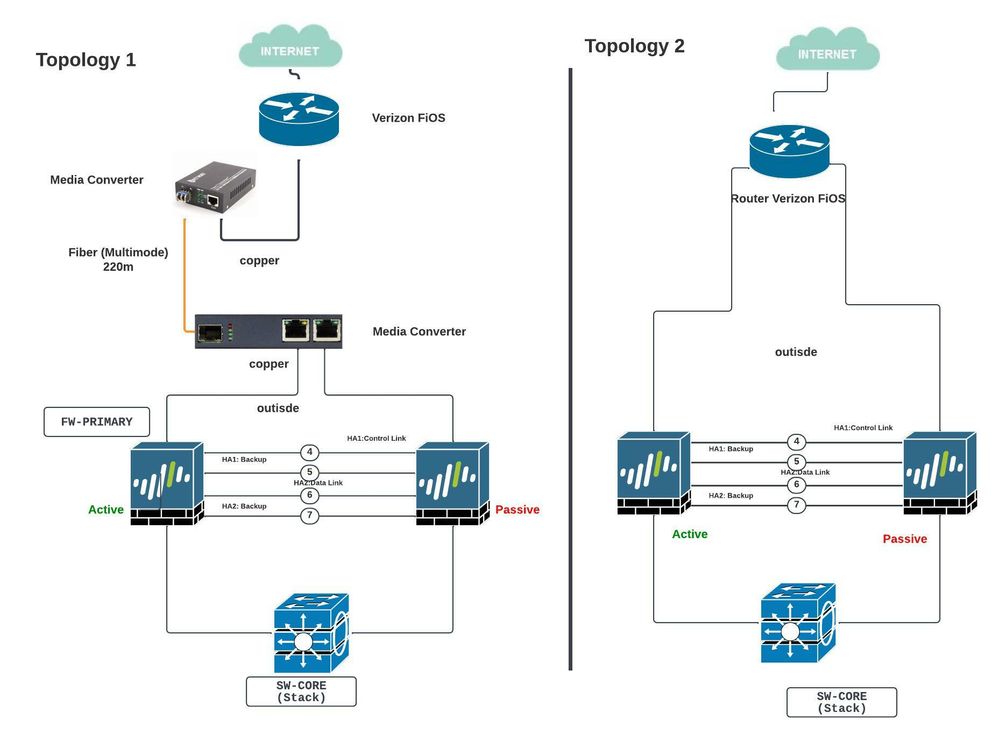

on site 1 (topology1) We found a problem that the distance between ISP installation and IT room more than 200m  So we wanted to use a media converter copper to fiber , Is this correct or could it cause a problem like loop?

on site 2 (topology2) The distance is close so every port from the router version Fios  To two FWs PA-440

Are both designs correct? Or does need a switch  Any suggestions or help please?

Thank you

Mohammed
