PA440 HA failover not working

[johu.online]

I'm having an issue with a HA failover with 2 PA440s. When I finished setting up the HA for both firewalls the first time, I was not able to sync them, it threw me a strange error and after some research, I found documentation where it stated that I had to clone both firewalls from firewall 1 to 2. I did that saving the device state from the active firewall, modifying some settings and uploading to the passive firewall. Everything went well, the devices sync without issue. I tested the HA failover unplugging the active firewall and letting the passive take over, it didn't work. After waiting some minutes, I reconnected the active firewall to get the internet back. So far, I have checked:

- link and path monitoring are enabled: failure condition: any.

- devices sync without issues

- both ISPs configured on the active firewall work (I can ping from the firewall itself using troubleshooting feature)

- both ISPs on the passive firewall do not work (can't ping from the, I'm not sure if this is normal)

- HA communications: HA1 port: management / HA1 backup control link: ethernet 1/7 / HA2 data link: ethernet 1/8 enable session sync and HA2 keep alive enabled.

- Config sync enabled and Preemptive too.

The only thing I have setup different is using the HA1 port for management, and the HA1 backup for the HA failover, I'm not sure if this actually makes a difference.

So far, everything looks alright. I'm not sure where else to check for any issues. Any help is appreciated, thanks.

[reaper]

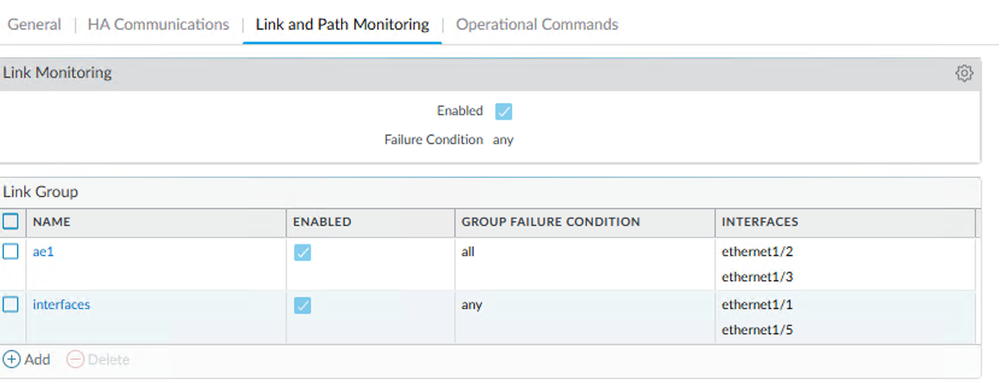

did you create Link Groups in link monitoring ?

[johu.online]

Is this necessary ? I have another failover setup with 1410s without any group configuration, just "enabled" with failure condition to "any" and they failover without issues.

[reaper]

yes, you must have at least one link group OR path monitor for failovers to work (based on link failures)

from the admin guide:


Enable and configure either path monitoring or link monitoring to help trigger a failover if a path or link goes down. Configure at least one Path Group for path monitoring and configure at least one Link Group for Link Monitoring.
