Palo Alto VM-100 installed on VMWare workstation is unable to connect to internet.

L0 Member

Hi All,



I have installed a Palo Alto firewall on my vmware workstation 8.0, with current settings i am able to access the Firewall GUI from my machine browser. But unfortunately, i am unable to connect to internet via firewall interface. I have 3 interfaces namely - mgmt, Untrust and Trust. I am trying to update license on firewall which requires internet access, but ending up a message.

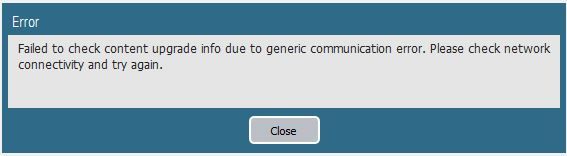

"Failed to check content upgrade info due to generic communication error. Please check network connectivity and try again."

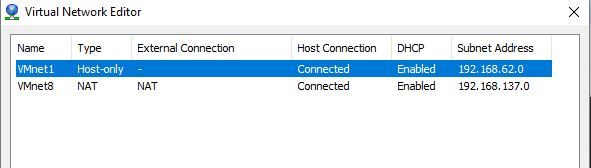

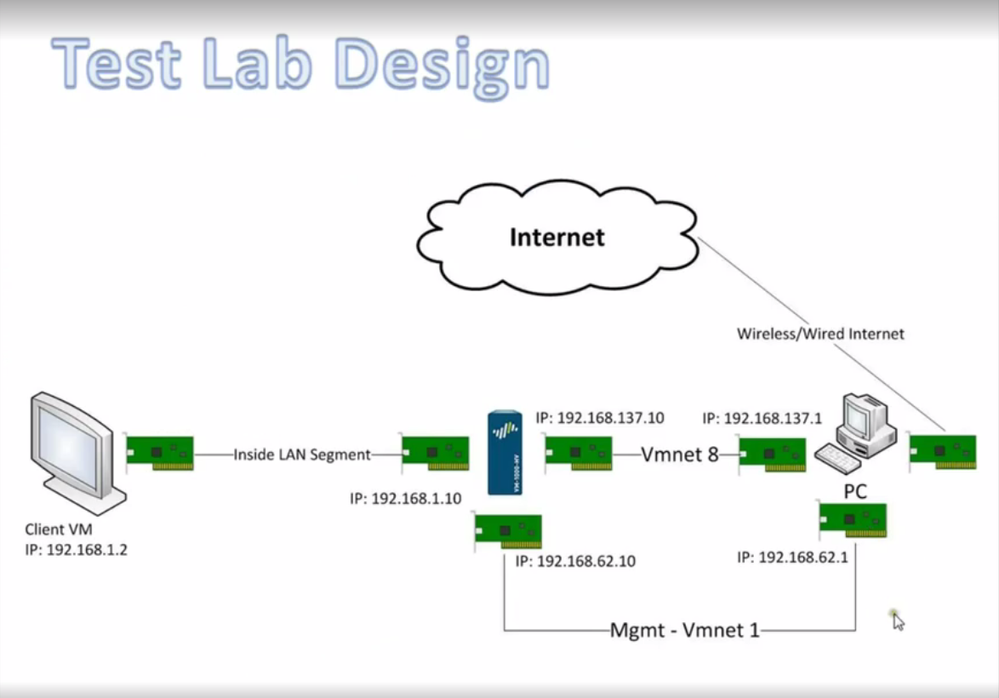

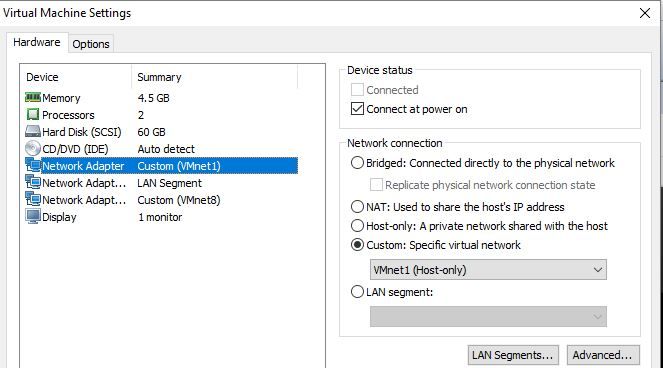

Here i am attaching the connectivity diagram, virtual network editor and network interfaces screenshot.



Can some please help me to resolve this connectivity problem.



I am trying to follow the setup published on udemy.com.. here is the link:

https://www.udemy.com/palo-alto-firewalls-installation-configuration-management/learn/v4/content





Diagram.PNGerror.JPGvirtual network editor.JPGnetwork interfaces.JPG







1 ACCEPTED SOLUTION

Accepted Solutions

L6 Presenter

Hi,

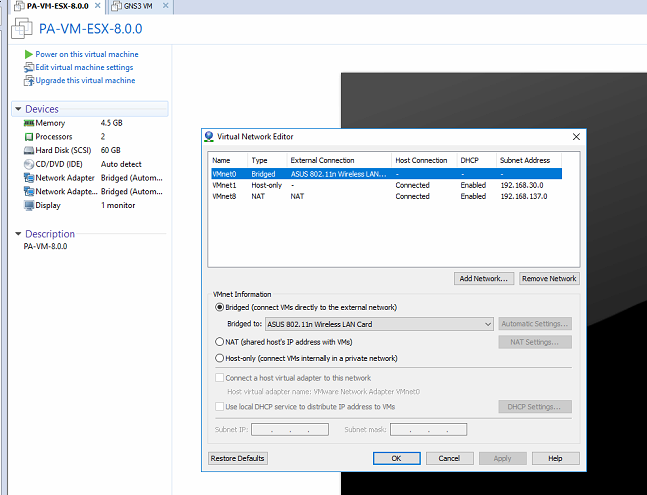

can you please "bridge" your first network adapter (mgmt) to your PC network card:






This will let you use your physical PC interface card in order to get to the Internet through your home router.

View solution in original post

1 REPLY 1

L6 Presenter

Hi,



can you please "bridge" your first network adapter (mgmt) to your PC network card:






This will let you use your physical PC interface card in order to get to the Internet through your home router.
