Query on QoS

Hello,

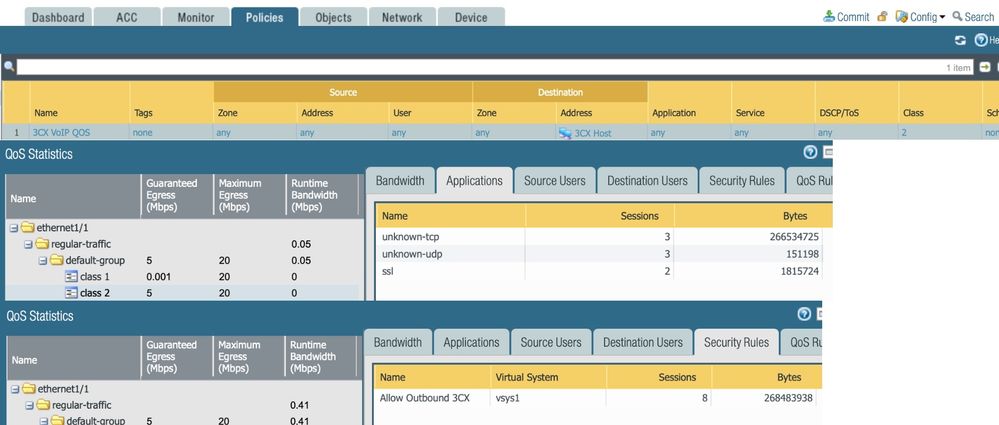

Basically I want to QOS all voip traffic coming in and out. Can I just QOS all traffic going to AND coming from a particular WAN address? (see security rule). That way i can just specify all applications and all services. I’m unsure if below setup is working.
In the Statistics page can’t see any bandwidth changes even when making phone calls.




Tags (2)

Accepted Solutions
BPry
Cyber Elite

@FarzanaMustafa

In the QOS rule simply specify the destination instead of specifying applications on application-default. If I would have to guess why your current settings aren't working it's because the traffic doesn't actually match your current rule.

View solution in original post

FarzanaMustafa
L4 Transporter

Hi @BPry



Thank you for your reply.

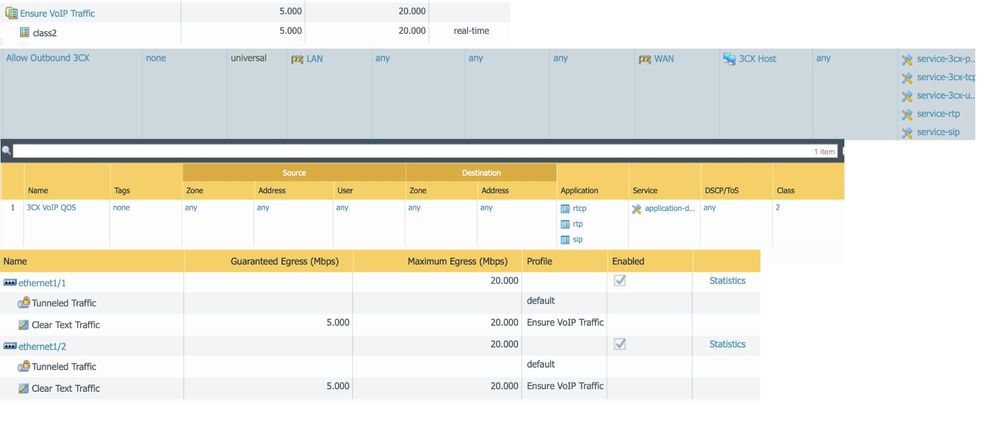

As per your suggestion made the changes to the QoS policy rule. Is this correct?

Is this also going to QOS traffic coming back in as well?






View solution in original post


All Replies
BPry
Cyber Elite

@FarzanaMustafa

In the QOS rule simply specify the destination instead of specifying applications on application-default. If I would have to guess why your current settings aren't working it's because the traffic doesn't actually match your current rule.

View solution in original post

FarzanaMustafa
L4 Transporter

Hi @BPry



Thank you for your reply.



As per your suggestion made the changes to the QoS policy rule. Is this correct?

Is this also going to QOS traffic coming back in as well?






View solution in original post

BPry
Cyber Elite

@FarzanaMustafa,

This is only going to apply to the session egressing the specified interface, it won't effect anything else.
