Settings missing in Management Interface

L2 Linker

I cannot see any option to change any Management Interface settings under Device > Setup > Interface.

>show system info is showing ip-assignment: dhcp. I need to change it to Static.

I have tried the commands below but no change.

> configure
# set deviceconfig system type static

# commit

Invalid configuration. Please fix errors and try again.



Using PANOS 10.1.0 and this PA-VM is deployed through Azure.

Please help.

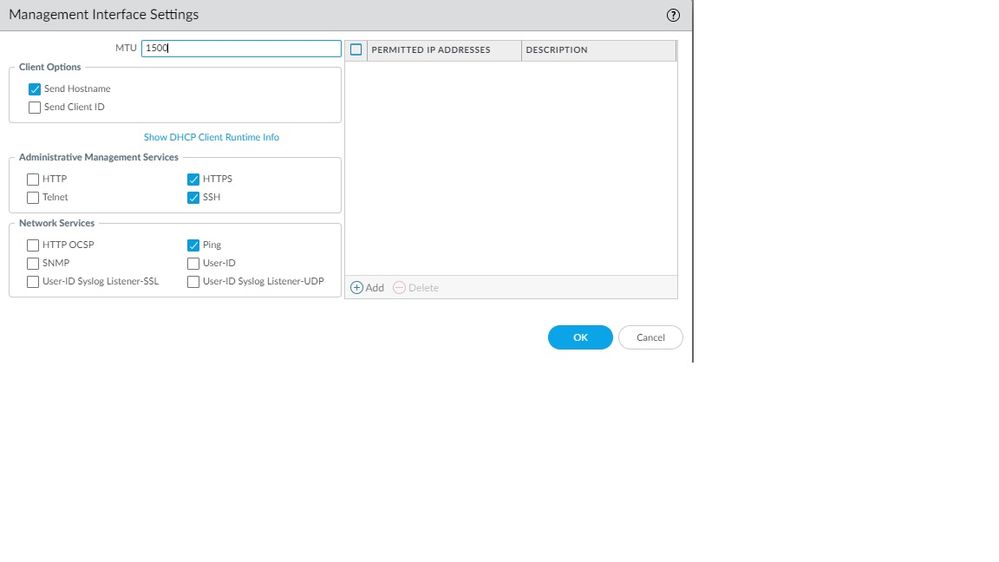

Interface Settings.jpg

2 REPLIES 2

Cyber Elite
Cyber Elite

Hello,

If you want to set the static IP via CLI, you'll need the following commands:



configure
set deviceconfig system ip-address <IP address> netmask <subnet mask> default-gateway <gateway>
set deviceconfig system dns-setting servers primary <IP of internal DNS server if no internal DNS server use 208.67.220.220 >
set deviceconfig system ntp-servers primary-ntp-server ntp-server-address <IP of NTP server or use us.pool.ntp.org>
commit



Regards,

Hi @OtakarKlier



Thank you for your response. I tried the commands above but getting this error below.



Validation Error:
deviceconfig -> system -> type -> dhcp-client is missing 'send-client-id'
deviceconfig -> system -> type -> dhcp-client is invalid
[edit]



Please advise.
