User-id with internal portal

L1 Bithead

Hello community,

I have just started my journey to PA world and spend several days configuring global protect features.

I successfully configured portal for as internal point of connection for Global protect client.

Idea is to provide User-id information to firewall without VPN connection.



As result my GP client tells me that "you are connected to internal network" but under PA device I don't see user<->ip information. User-id based rules don't work. no information from "show user ip-user-mapping all."

1. Are there any additional steps required to enable User-id features. I enable it only at security zone level.

2. Would it be possible to have one portal but two gateways (ext, int) for internal (user-id provisioning only )  and external (vpnssl)  deployments. Or there are two portals external / internal are required ?



Thanks in advice !

7 REPLIES 7

Cyber Elite
Cyber Elite

@eronko,

1) Did you remember to enable user-id on the GlobalProtect interface?

2) You can use the same gateway for Internal/External connections without issue.

Do you mean interface where portal is hosted !

Thanks for reply !

That's correct. Say for example I'm using the interface ethernet1/2 for the internal gateway and you have that assigned to the default 'trust' zone, you'll need to ensure that you have user ID enabled for the zone.

L2 Linker

So I believe you're looking for how to authenticate logged in users whether they're outside or inside. I've spent 2 ways on how to do it, the documentation is not describing it clearly. You need to have 2 gateways for this, one external, and one internal one. The internal gateway can be your firewall interface inside IP address, the main trick is here:

this IP must be resolvable into your internal hostname you specified in the portal config in both ways: in the direct internal DNS resolution, and also reversed DNS resolution.



In my example I have the inside L3 interface with the IP 192.168.1.1. In my internal DNS there is an A record pa-int.ovel.ru pointing to this IP, and ALSO there is reversed zone arpa.1.168.192 that resolves .1 into pa-int.ovel.ru.



The gateway config is here:

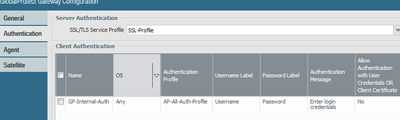

Authentrication

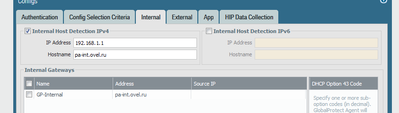

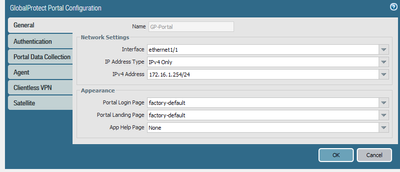

And then the portal config is here:




Internal Gateway:




And after that your GlobalProtect should be able to get your user authenticated straight away.






And yes, it's very important: All this is working in "Always-On" mode only!!! At least in my case.

Hope this helps.
