XFF: For security Policy

L4 Transporter

Trying to implement this.

https://docs.paloaltonetworks.com/pan-os/10-1/pan-os-admin/policy/identify-users-connected-through-a...

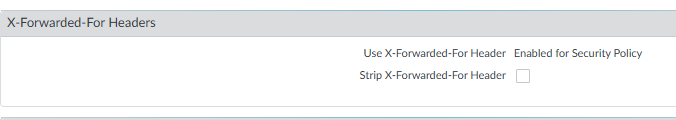

Azure Web Application Gateway is in the front, acting as proxy. I can see packet captures for port 80 x-forward for is included

But i don't see xff in traffic logs, and matching the url accessed shows traffic from Azure Gateways internal backend IP and not from the original client IP in XFF.


How ever I don't see IP under XFF traffic logs as source ip

Also i tried adding source ip to be blocked to test, and could not get it to work

1 accepted solution

Accepted Solutions

L6 Presenter

Hello, I suspect that because also the port is included it causes issues. Try to have an HTTP header that contains just one IP address without a port :



https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClIVCA0



View solution in original post

2 REPLIES 2

L6 Presenter

Hello, I suspect that because also the port is included it causes issues. Try to have an HTTP header that contains just one IP address without a port :



https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClIVCA0



Thanks @nikoolayy1

Rewriting HTTP header on Application Gateway to remove port information made it work.
