Global Protect gateway isolation based on LAN checks

Dear all,

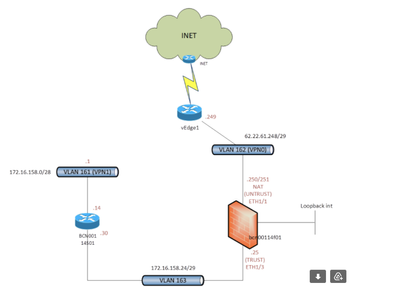

Please see the design below , the idea is testing against IPs 172.16.158.1 (IPs of VLAN 161) using path monitoring + static route



Can we add a path monitoring to an internal static route ,  that internal route monitoring reachability of 172.16.158.1 using as a source  Interface a newly created loopback that we could associate with the GP  gateway ?



The goal will be that when connectivity is lost from loopback to 172.16.158.1, the GP gateway will shutdown , the ultimate goal will be to avoid the mobile user traffic to reach the fw and then be black holed ...



Regards. -
